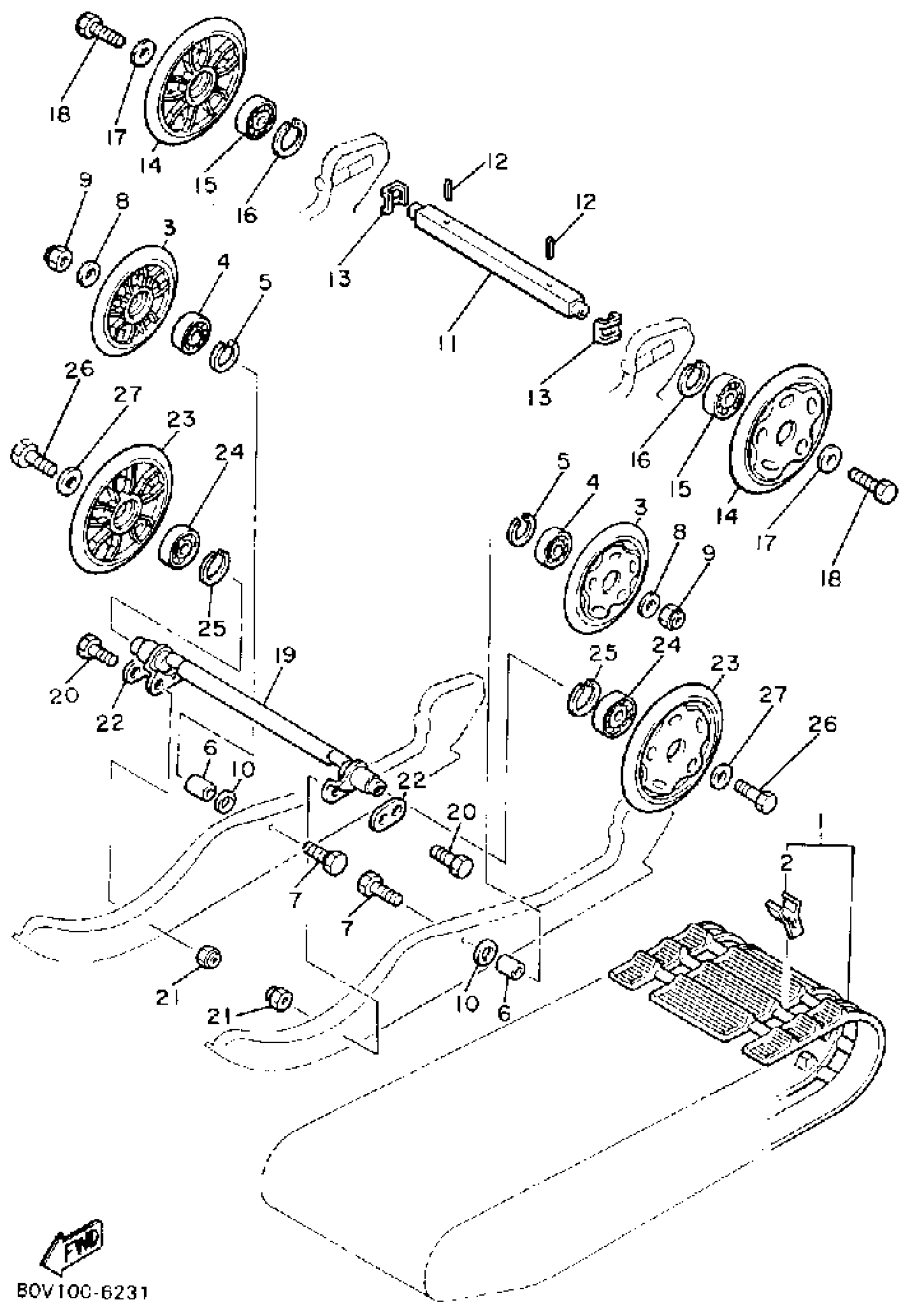

Yamaha BR250S (BRAVO) 1992 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8R4-47110-01-00

Unavailable

2

METAL, SLIDE

8A5-47115-00-00

$12.99

3

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.20

4

BEARING(8AB)

93306-00444-00

$34.98

5

CIRCLIP(5U8)

99009-42500-00

$6.45

6

COLLAR

90387-120F6-00

Unavailable

7

BOLT

90101-12539-00

Unavailable

8

YBS66-12 WASHER,PLAIN

92990-12200-00

$5.87

9

NUT, NYLON

95717-12300-00

$5.76

10

WASHER, PLATE (4N0)

90201-126A7-00

$5.98

11

AXLE, REAR

8E3-47521-00-00

Unavailable

12

PIN, SPRING (663)

91690-40040-00

$3.86

13

WASHER

8E3-47384-00-00

Unavailable

14

WHEEL GUIDE COMP.

8L4-47530-00-00

$156.08

15

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$33.35

16

CIRCLIP(48Y)

99009-47500-00

Unavailable

17

WASHER, PLATE (8M2)

90201-083A8-00

Unavailable

18

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

19

BAR, SUSPENSION

8R4-47451-10-00

Unavailable

20

BOLT, HEXAGON

97017-08030-00

Unavailable

21

NUT, NYLON

95717-08300-00

Unavailable

22

SPACER

8G5-47466-00-00

Unavailable

23

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.20

24

BEARING(8AB)

93306-00444-00

$34.98

25

CIRCLIP(5U8)

99009-42500-00

$6.45

26

BOLT (8K2)

90109-08559-00

Unavailable

27

WASHER (8G1)

90201-08681-00

Unavailable
