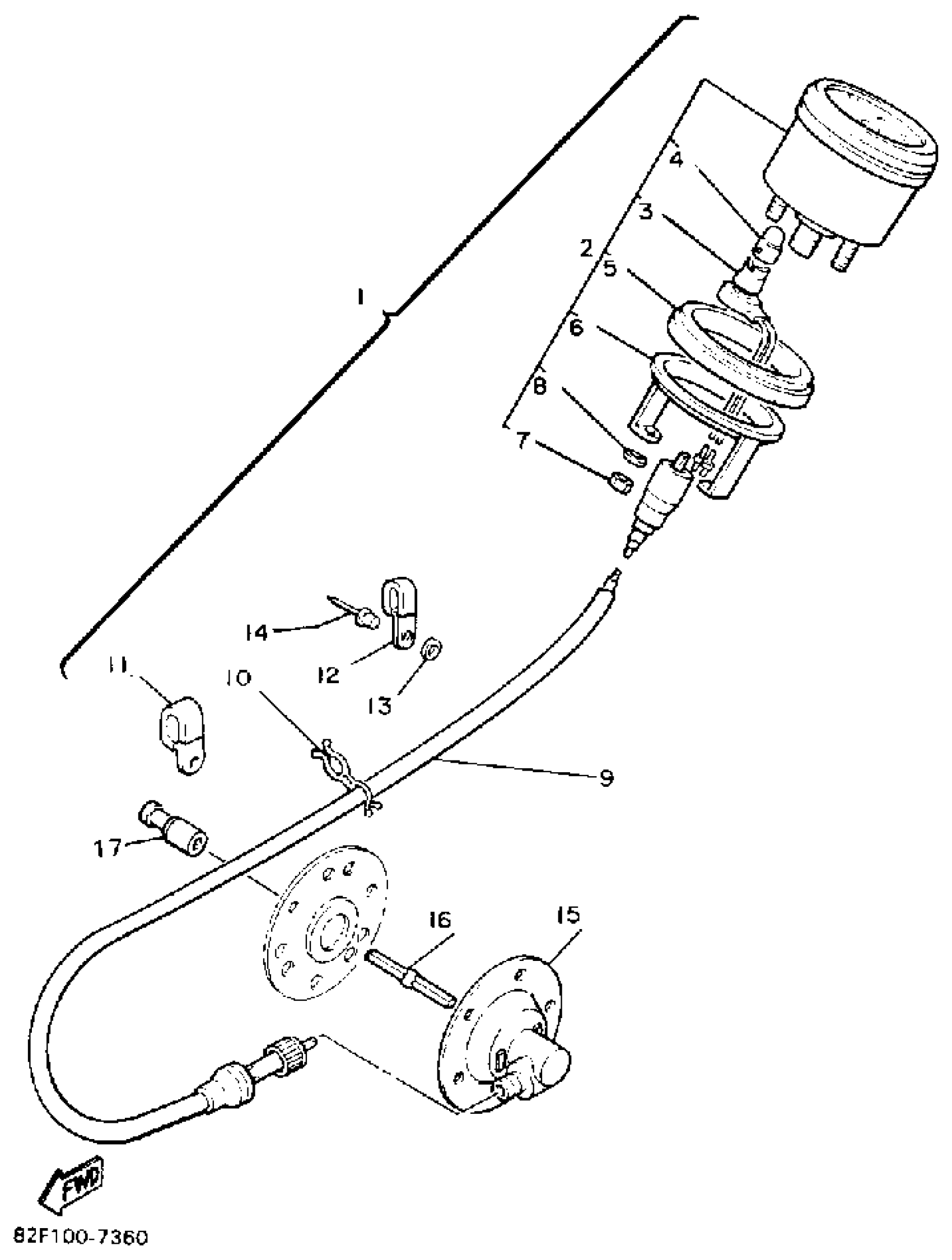

Yamaha BR250S (BRAVO) 1992 METER Diagram

#

Description
Price

1

SPEDO KIT, BR250

80V-W0081-40-00

Unavailable

2

. SPEEDOMETER ASSY (MILE/H)

80V-83510-40-00

Unavailable

3

SOCKET CORD ASSY

5E2-83509-20-00

$24.52

4

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.94

5

DAMPER, METER

8G6-83523-00-00

Unavailable

6

. BRACKET, METER

8G6-83519-00-00

Unavailable

7

NUT, HEXAGON (663)

95380-05600-00

Unavailable

8

YBS67-5 WASHER, SPRING

92990-05100-00

$1.49

9

SPEEDOMETER CABLE ASSY

8Y8-83550-00-00

$31.56

10

CLAMP

90464-10038-00

$1.49

11

CLAMP (6A4)

90461-06M01-00

Unavailable

12

CLAMP

90465-08028-00

$4.40

13

WASHER, PLATE (34L)

90201-043H7-00

$2.43

14

RIVET, BLIND

90267-48060-00

$1.97

15

. METER GEAR HOUSING

8R4-47700-00-00

Unavailable

16

JOINT

8K4-47715-00-00

Unavailable

17

CONNECTOR

8K4-47577-00-00

Unavailable
