1992 Yamaha Bravo (BR250S) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1992 Yamaha Bravo (BR250S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

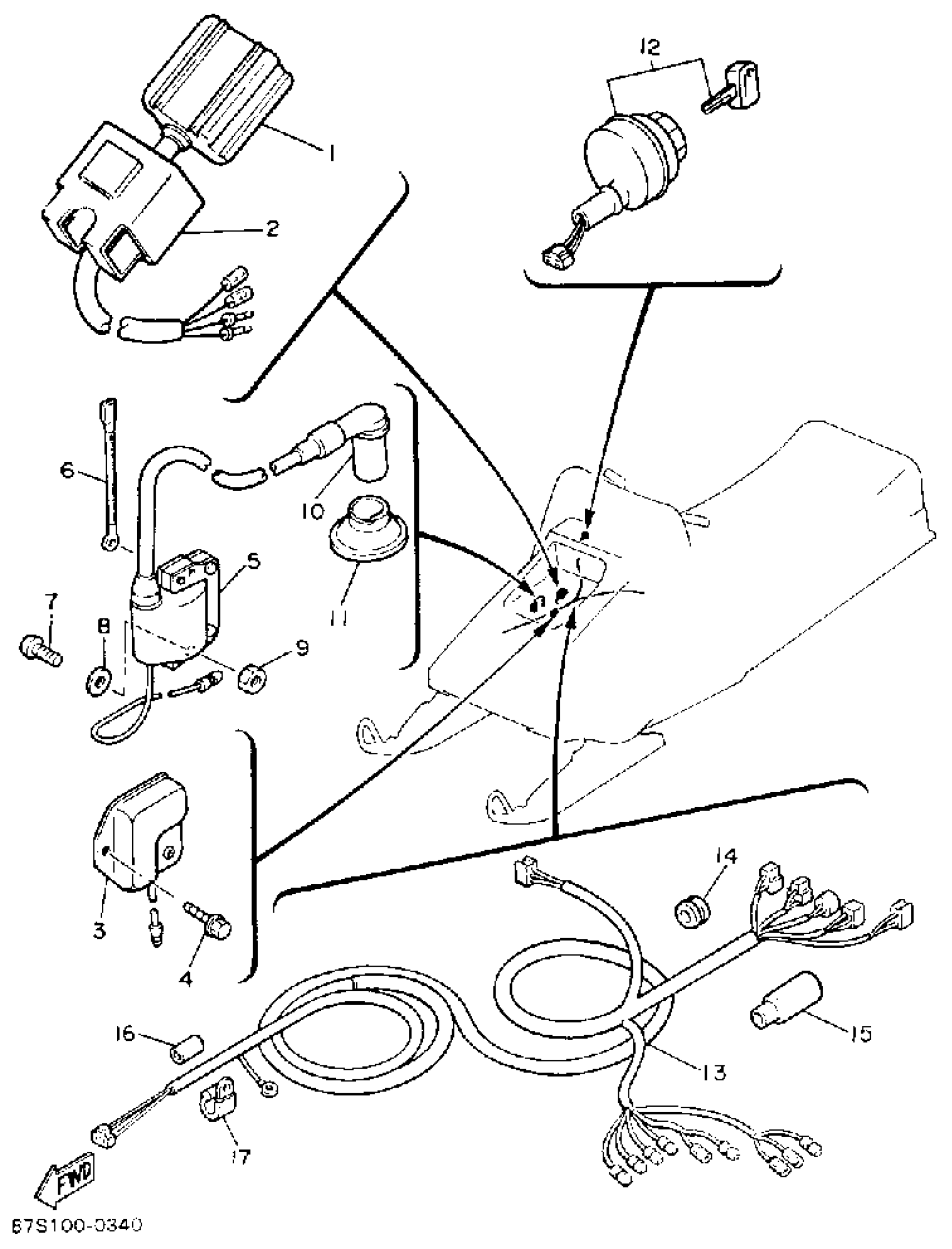

1992 Yamaha Bravo (BR250S) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

83Y-85540-M0-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

—
Out of stock

4

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

5

IGNITION COIL ASSY

86B-82310-13-00

1
Out of stock

6

WIRE, SUB-LEAD

83Y-82318-00-00

1
Out of stock

7

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

8

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

9

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

10

PLUG CAP ASSY

85G-82370-20-00

1

$28.09

In stock

11

SEAL

8G5-82372-00-00

1

$4.66

In stock

12

MAIN SWITCH ASSY

8R4-82510-20-00

1

$109.02

In stock

13

WIRE HARNESS ASSEMBLY

83Y-82590-20-00

1
Out of stock

14

GROMMET (2N3)

90480-16233-00

1

$6.82

In stock

15

COVER, CONNECTER

8Y0-82599-00-00

—
Out of stock

16

HOSE

90446-07182-00

1
Out of stock

17

CLAMP

90465-08028-00

1

$4.62

In stock
