- BR250P (BRAVO) 1990
TRACK SUSPENSION 2

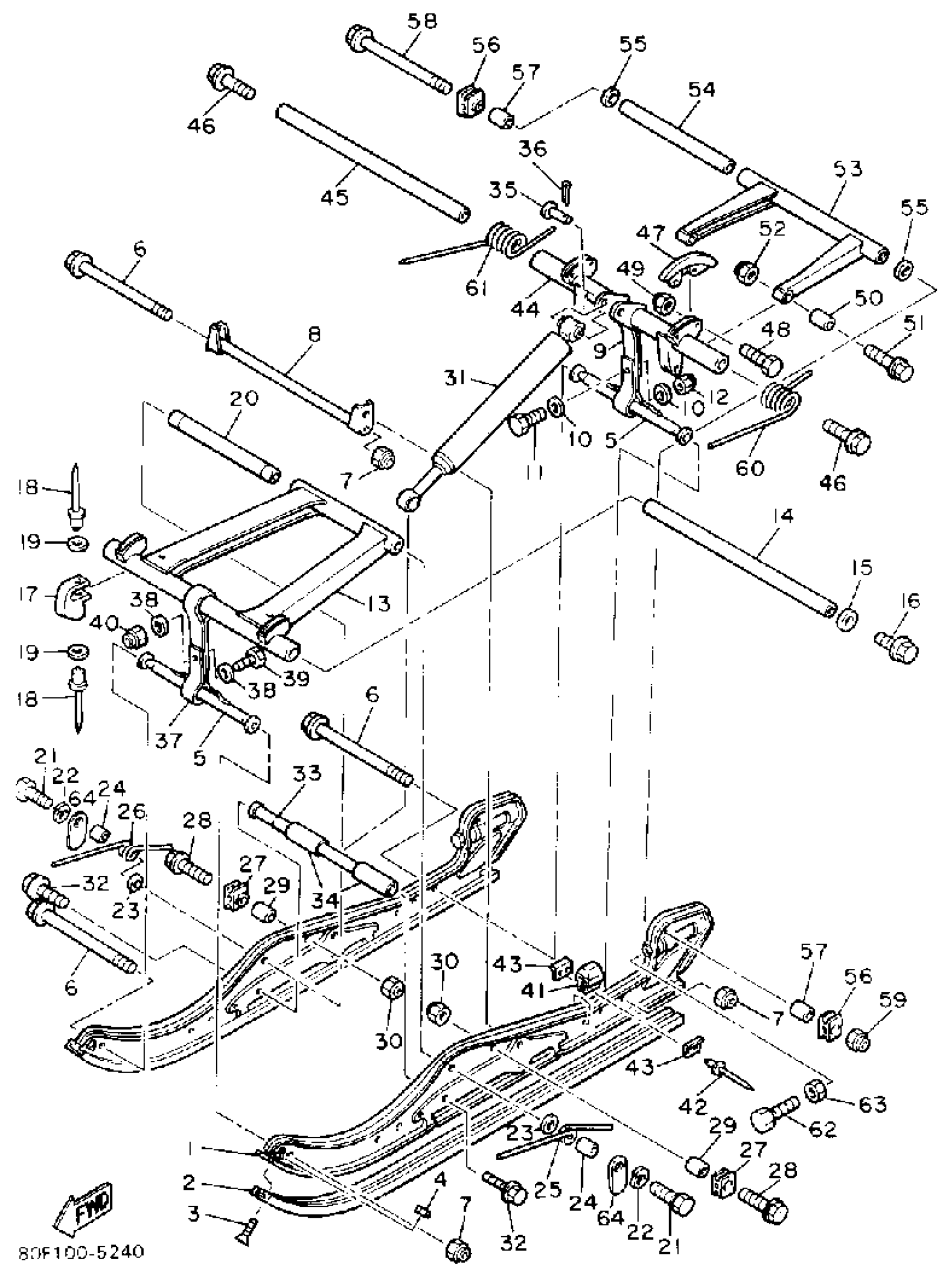

Yamaha BR250P (BRAVO) 1990 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING 1
8V7-47411-00-00
Unavailable
2
RUNNER, SLIDING 1 (8F3-47421-10)
8N4-47421-00-XX
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
NUT, SQUARE
90173-06006-00
Unavailable
5
BRACKET 1
8G5-47415-00-00
Unavailable
6
BOLT, WASHER BASED(51X)
90105-08346-00
$11.49
7
NUT, SELF-LOCKING(3BN)
90185-08146-00
$9.49
8
BRACKET 4
8R4-47418-00-00
Unavailable
9
STOPPER 1
8R4-47495-00-00
Unavailable
10
WASHER, PLATE
90201-06747-00
$8.49
11
BOLT, HEXAGON
97017-06025-00
$4.24
12
NUT, NYLON
95707-06300-00
$3.50
13
ARM, PIVOT 1
8R4-47331-00-00
Unavailable
14
SHAFT 1
8A5-47465-02-00
$51.99
15
SPACER
8U7-47341-00-00
Unavailable
16
BOLT (8V0)
90109-10771-00
Unavailable
17
DAMPER 1
8R4-47456-00-00
Unavailable
18
RIVET, BLIND (J10)
90267-40077-00
Unavailable
19
WASHER, PLATE (820-77116-00)
90201-04023-00
Unavailable
20
SHAFT 3
8G5-47485-00-00
Unavailable
21
BOLT
97017-10055-00
Unavailable
22
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
23
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
24
COLLAR (8K4)
90387-101A1-00
Unavailable
25
SPRING, TORSION
90508-70509-00
Unavailable
26
SPRING, TORSION
90508-70510-00
Unavailable
27
HOOK 2
8V7-47447-01-00
Unavailable
28
BOLT, FLANGE
95817-08050-00
Unavailable
29
COLLAR (878)
90387-08262-00
Unavailable
30
NUT, SELF-LOCKING(3BN)
90185-08146-00
$9.49
31
SHOCK ABSORBER
8R4-47480-00-00
Unavailable
32
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
33
SHAFT 4
8V7-47486-00-00
Unavailable
34
COLLAR
90387-170F3-00
Unavailable
35
PIN, CLEVIS(8N0)
90240-12115-00
Unavailable
36
PIN, COTTER
91490-30030-00
Unavailable
37
STOPPER 1
8R4-47495-00-00
Unavailable
38
WASHER, PLATE
90201-06747-00
$8.49
39
BOLT, HEXAGON
97017-06025-00
$4.24
40
NUT, NYLON
95707-06300-00
$3.50
41
DAMPER 2
8K2-47457-00-00
Unavailable
42
RIVET, BLIND (8K4)
90267-48062-00
Unavailable
43
PLATE, DAMPER
8K2-47458-01-00
Unavailable
44
ARM, PIVOT 2
8R4-47332-00-00
Unavailable
45
SHAFT 1
8A5-47465-02-00
$51.99
46
BOLT (8V0)
90109-10771-00
Unavailable
47
RUNNER, SLIDING 2
8F3-47422-01-00
Unavailable
48
BOLT, HEXAGON
97017-06025-00
$4.24
49
NUT, NYLON
95707-06300-00
$3.50
50
COLLAR (8K2)
90387-08754-00
Unavailable
51
BOLT, FLANGE
95817-08050-00
Unavailable
52
NUT, SELF-LOCKING(3BN)
90185-08146-00
$9.49
53
BRACKET 3
8R4-47417-00-00
Unavailable
54
COLLAR
90387-08632-00
Unavailable
55
WASHER (1T1)
90201-08649-00
Unavailable
56
HOOK 2
8V7-47447-01-00
Unavailable
57
COLLAR(8V7)
90387-087L3-00
Unavailable
58
BOLT, FLANGE
95822-08290-00
Unavailable
59
NUT, SELF-LOCKING(3BN)
90185-08146-00
$9.49
60
SPRING, TORSION
90508-85627-00
Unavailable
61
SPRING, TORSION
90508-85628-00
Unavailable
62
BOLT, HEXAGON (8E3)
90101-10314-00
Unavailable
63
NUT (2Y5)
90179-10279-00
Unavailable
64
CLAMP
90465-20183-00
Unavailable
