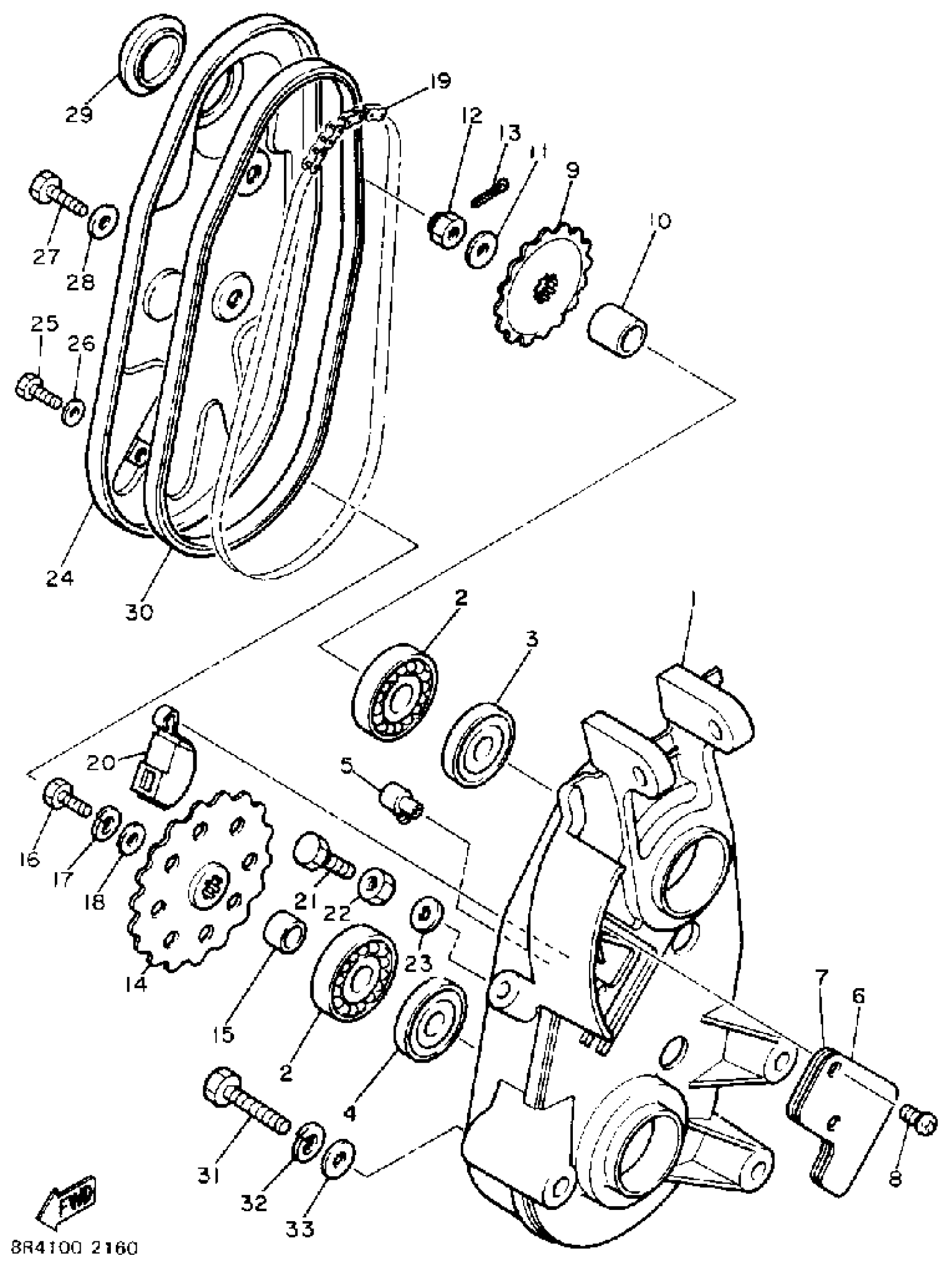

1990 Yamaha Bravo (BR250P) Track Drive 2 Diagram
Find the part on the Track Drive 2 diagram for your 1990 Yamaha Bravo (BR250P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
3
OIL SEAL (25X44X6-810)
93102-25081-00
4
OIL SEAL(4BA)
93102-20447-00
5
BREATHER
583-15371-00-00
6
PLATE
8R4-47591-00-00
7
GASKET
86A-47592-00-00
8
SCREW, BIND
98903-05016-00
9
SPROCKET, CHAIN DRIVE (11T)
812-17682-10-00
9
SPROCKET, CHAIN DRIVE(12T)
812-17682-20-00
9
SPROCKET, CHAIN DRIVE (14T)
812-17682-40-00
14
SPROCKET, CHAIN DRIVEN
8BC-47548-10-00
14
SPROCKET, CHAIN DRIVEN (23T)
8F3-47548-30-00
15
COLLAR
90387-200F1-00
24
CAP, HOUSING
8R4-47543-00-00
30
RING, HOUSING
8R4-47558-01-00
31
BOLT
97021-08065-00
