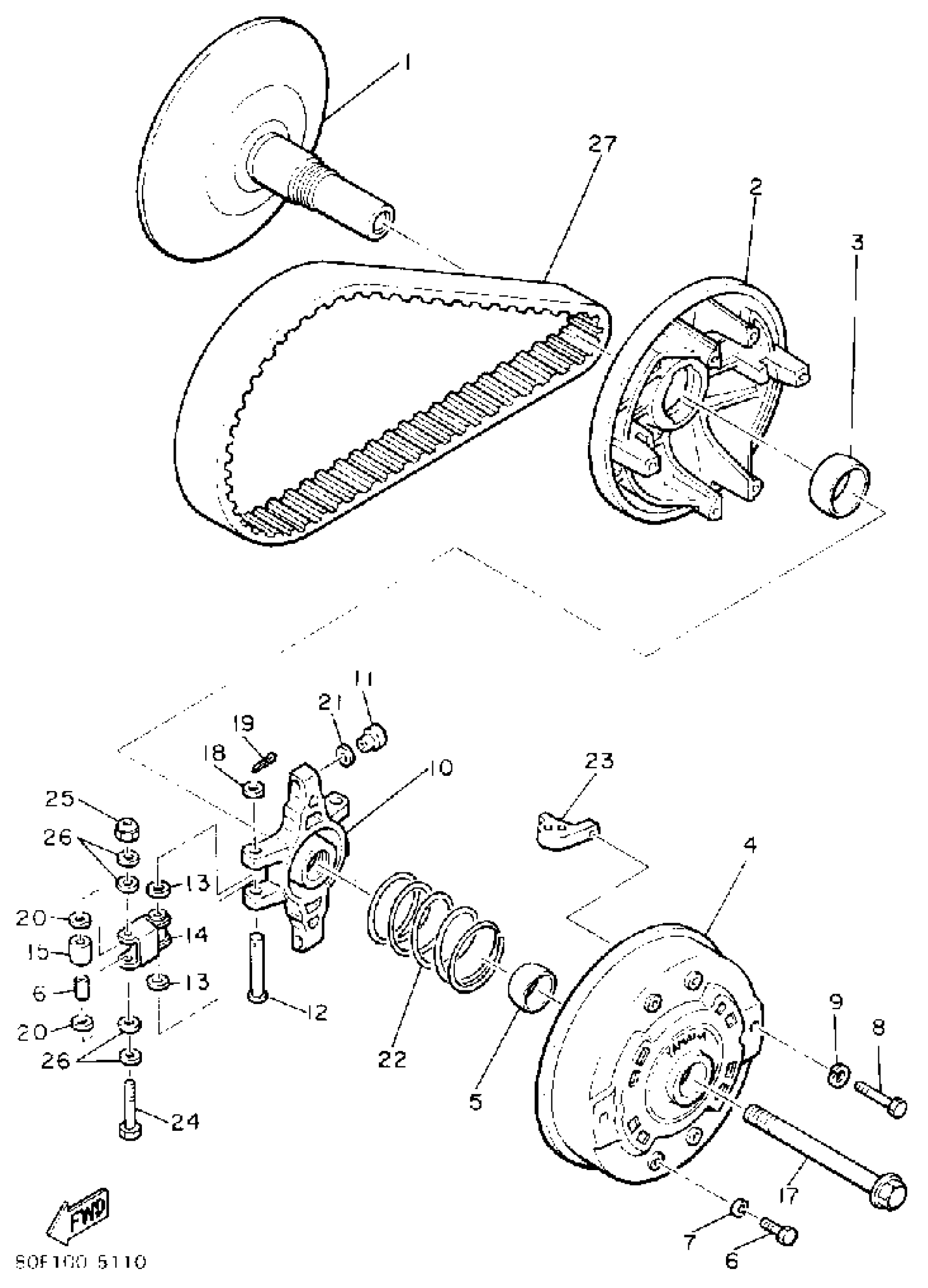

Find the part on the Primary Sheave diagram for your 1990 Yamaha Bravo (BR250P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Bravo (BR250P) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI FIXED SHEAVE

8R4-17610-00-00

1
Out of stock

2

SHEAVE, PRI SLIDING

8H9-17621-01-00

1
Out of stock

3

BUSH, SPEC''L SHAPE

90389-39025-00

1
Out of stock

4

CAP

8H9-17631-00-00

1
Out of stock

5

BUSH, SPEC''L SHAPE

90389-26024-00

1
Out of stock

6

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

BOLT (682)

97095-06040-00

1

$2.36

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

SPIDER

8H9-17627-00-00

1
Out of stock

11

SLIDER

8F2-17653-00-00

1

$10.03

In stock

12

PIN, CLEVIS

90240-07112-00

1
Out of stock

13

WASHER, PLATE

90201-06104-00

1
Out of stock

14

WEIGHT

8H9-17632-01-00

1
Out of stock

15

COLLAR (8H9)

90387-09698-00

1

$5.42

In stock

16

COLLAR (8H9)

90387-06697-00

—

$13.34

In stock

17

BOLT

8H9-17647-00-00

1
Out of stock

18

WASHER, PLATE

90201-06M08-00

1
Out of stock

19

PIN, COTTER

91490-25020-00

—

$2.94

In stock

20

WASHER, PLATE

90201-09728-00

1
Out of stock

21

WASHER, PLATE (8K2)

90201-090A4-00

—

$1.05

In stock

22

SPRING, COMPRESSION

90501-50654-00

1
Out of stock

22

SPRING, COMPRESSION

90501-55691-00

1
Out of stock

23

CAM

8J2-17623-00-00

1
Out of stock

24

BOLT (90101-06663)

90101-06663-00

1
Out of stock

25

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

26

WASHER, PLATE (8H9)

90201-06727-00

—
Out of stock

27

V-BELT

820-17641-01-00

1

$33.66

In stock

27

CLUTCH TUNE UP KIT

8R4-00000-50-00

1
Out of stock

27

UNAVAILABLE IN PRICE BOOK

8R4-12601-09-00

1
Out of stock
