1990 Yamaha Bravo (BR250P) Shroud - Windshield Diagram

← All diagrams

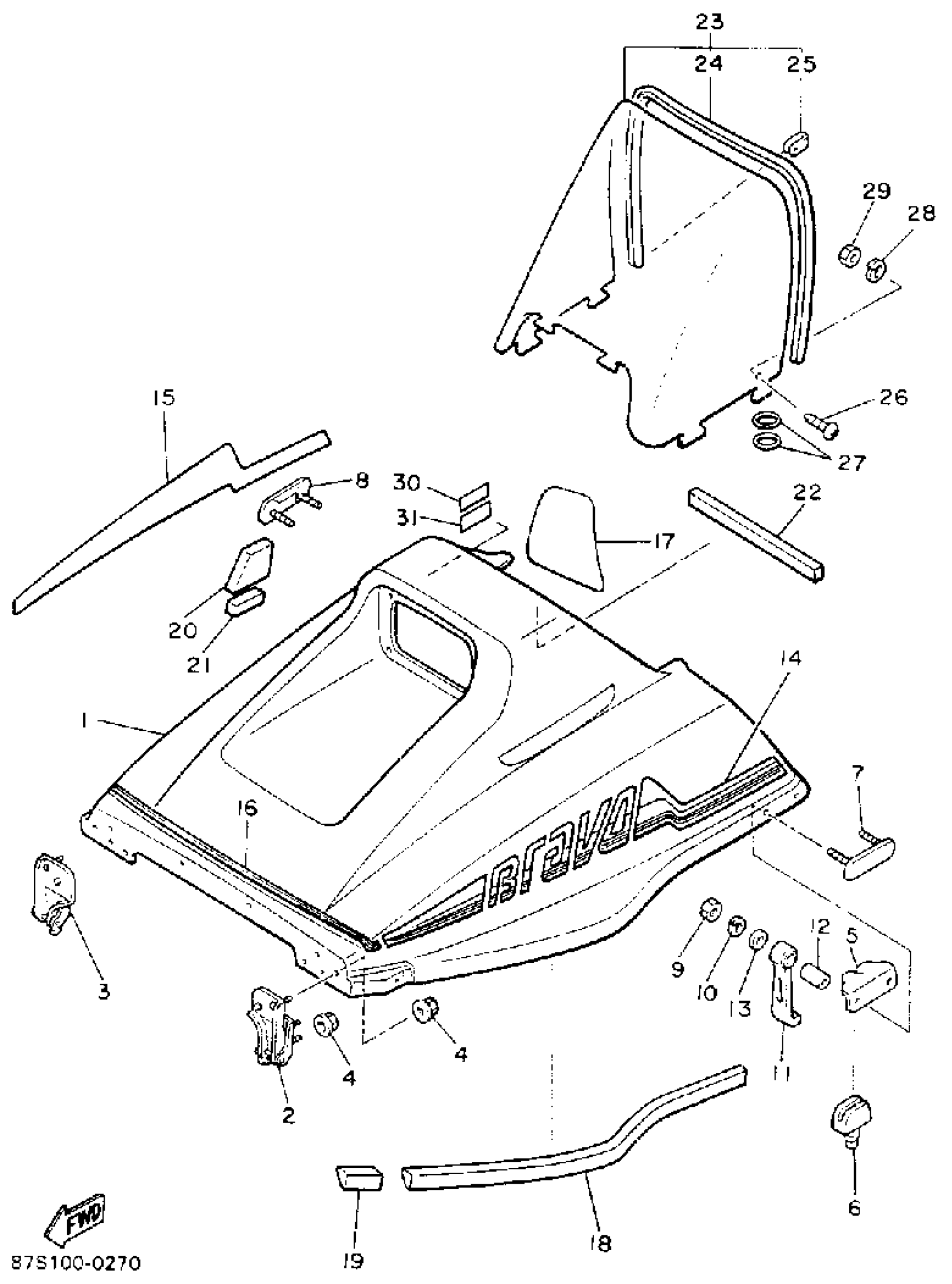

Find the part on the Shroud - Windshield diagram for your 1990 Yamaha Bravo (BR250P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Bravo (BR250P) Shroud - Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

80F-77111-00-00

1
Out of stock

2

HINGE ASSY

8R4-77140-00-00

—

$28.25

In stock

3

HINGE ASSY 2

8R4-7714A-00-00

—

$28.25

In stock

4

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

5

CLAMP 2

8R4-77136-00-00

1
Out of stock

6

STOPPER

8R4-77188-00-00

1

$17.28

In stock

7

PLATE 1

80F-77185-00-00

1
Out of stock

8

PLATE 2

80F-77186-00-00

—

$37.60

In stock

9

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

BODY, LATCH 1

8R4-77171-00-00

1

$21.98

In stock

12

COLLAR 849833160000

90387-06027-00

1

$6.68

In stock

13

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

14

ORNAMENT 1

87S-77163-00-00

1
Out of stock

15

ORNAMENT 2

87S-77164-00-00

1
Out of stock

16

STRIPE 1

86A-77281-70-00

1
Out of stock

17

LABEL, WARNING 1

87S-77761-00-00

1
Out of stock

18

PATCH 5

8X8-21965-00-00

—

$4.77

In stock

19

PATCH 6

80F-21966-00-00

—
Out of stock

20

LINING, SHROUD 1

80F-77261-00-00

—

$3.91

In stock

21

DAMPER, PLATE

90520-30005-00

—

$0.43

In stock

22

DAMPER, PLATE

90520-15005-00

—

$1.71

In stock

23

WINDSHIELD,BR250

8V7-77210-10-XX

1
Out of stock

24

TRIM,UPPER

87K-77213-00-00

1
Out of stock

25

. FASTENER

80V-77223-00-00

1
Out of stock

26

SCREW, TAPPING (8R4)

90164-05007-00

—

$3.13

In stock

27

FASTNER

82H-77223-00-00

—

$7.63

In stock

28

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

29

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

30

LABEL CAUTION

80V-1417E-00-00

1
Out of stock

31

LABEL 1

80V-47578-00-00

1
Out of stock
