1990 Yamaha Bravo (BR250P) Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1990 Yamaha Bravo (BR250P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

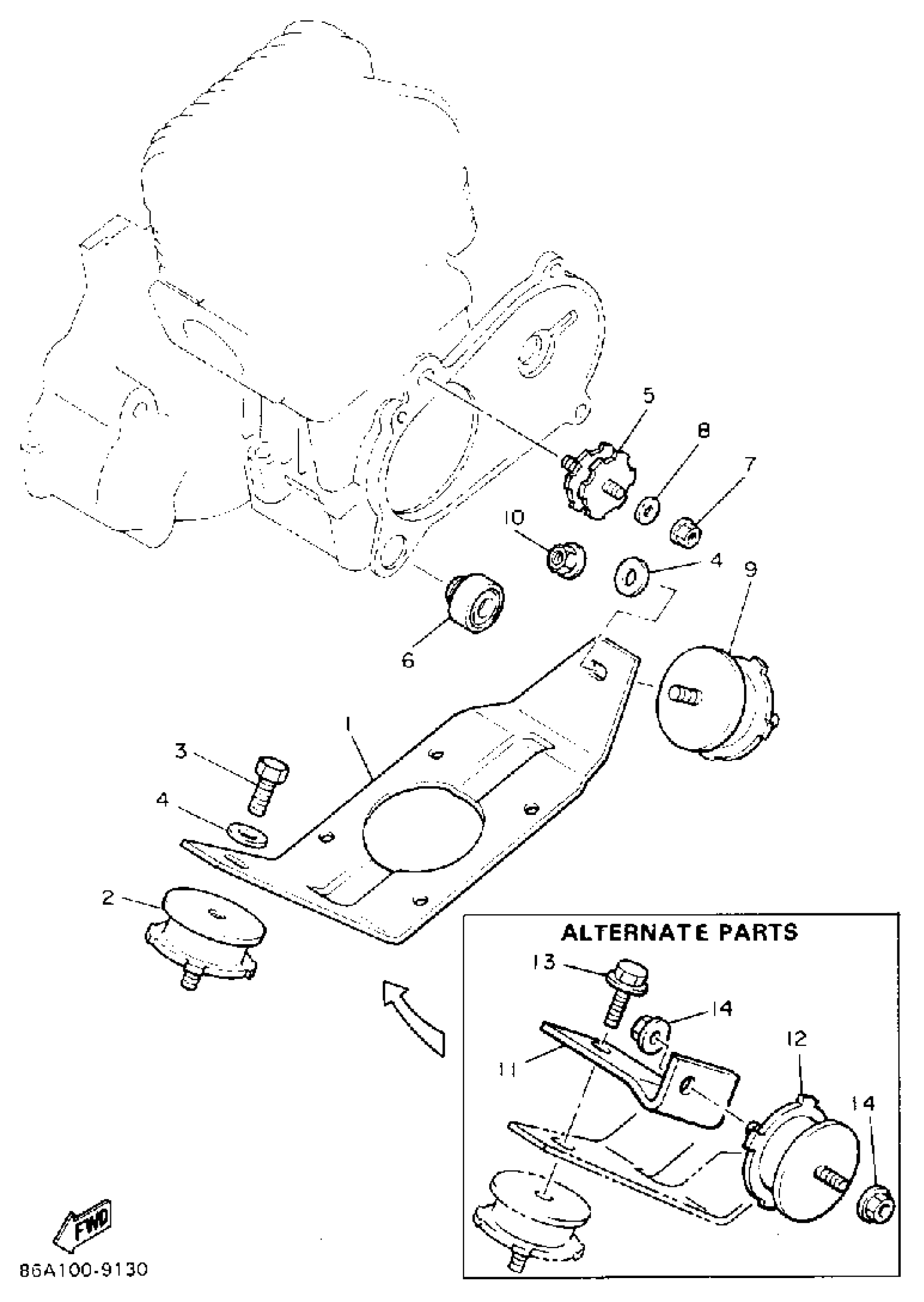

1990 Yamaha Bravo (BR250P) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8R4-21411-00-00

—

$43.35

In stock

2

DAMPER, RUBBER 1

8R4-21485-00-00

1

$62.15

In stock

3

BOLT, WASHER BASED (7H3)

90105-10147-00

1

$8.75

In stock

4

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

5

DAMPER 2

8V7-21486-00-00

1

$53.20

In stock

6

DAMPER

8R4-21488-01-00

1

$11.58

In stock

7

NUT, FLANGE

95704-08500-00

1
Out of stock

8

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

9

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

1

$68.00

In stock

10

NUT (2Y5)

90179-10279-00

1

$6.09

In stock

11

BRACKET, ENGINE 2

86A-21419-00-00

1

$73.09

In stock

12

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

1

$68.00

In stock

13

BOLT, FLANGE

95817-10020-00

1

$6.17

In stock

14

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock
