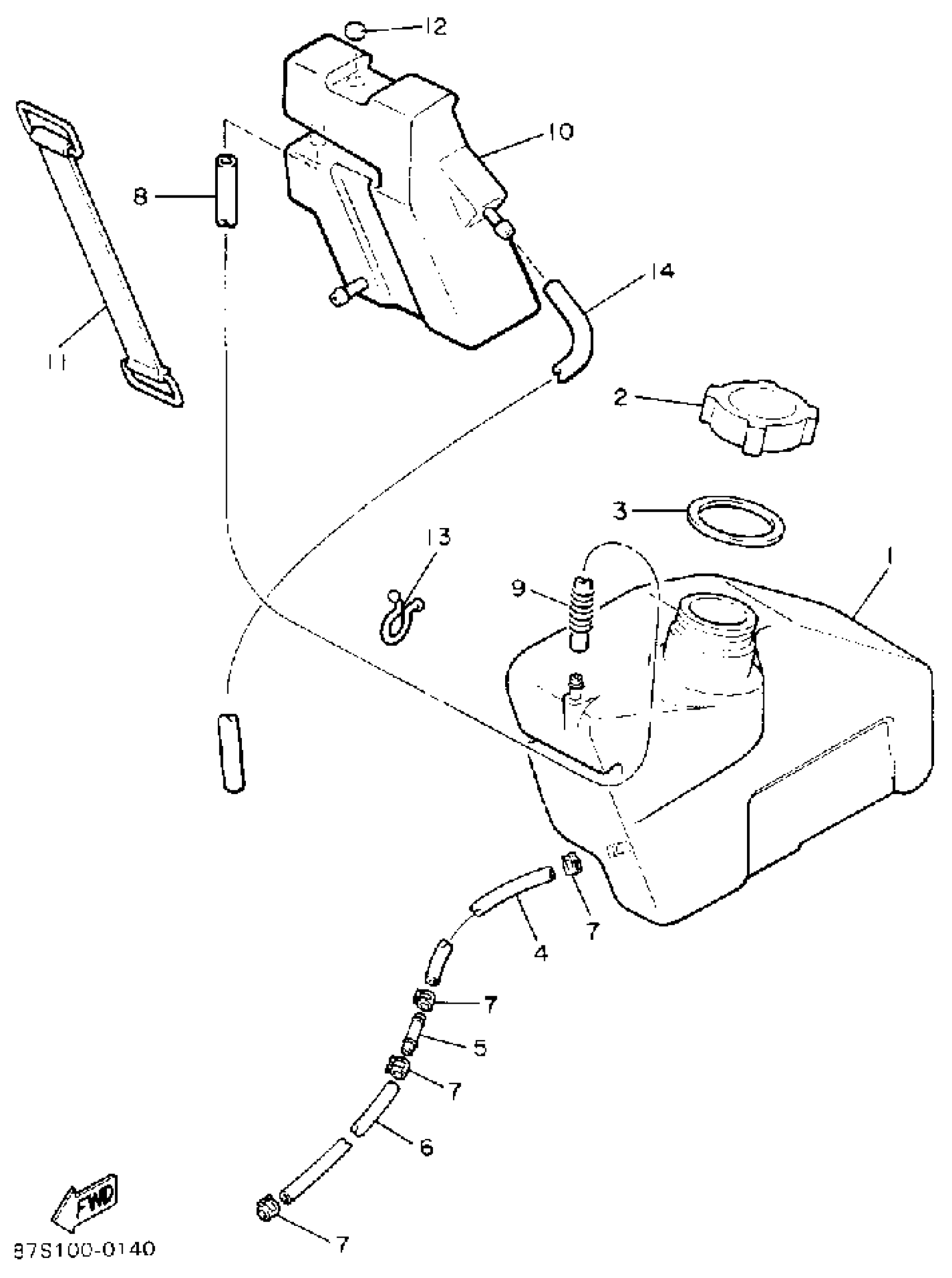

Yamaha BR250P (BRAVO) 1990 OIL TANK Diagram

TANK, OIL

8R4-21751-00-00

$52.99

BODY, CAP

8LU-21771-00-00

$31.99

GASKET, TANK (867)

90430-31003-00

$10.49

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

PIPE, JOINT

8H8-24376-00-00

Unavailable

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

CLIP (8A1)

90467-09026-00

$3.28

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

SPRING, COMPRESSION(8AF)

90501-083J8-00

Unavailable

TANK, RECOVERY

8V7-21871-00-00

Unavailable

BAND, TANK FITTING

8V7-21776-00-00

Unavailable

PLUG (17J)

90338-10132-00

Unavailable

CLAMP (3Y2)

90464-16039-00

$9.49

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99
