1990 Yamaha Bravo (BR250P) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1990 Yamaha Bravo (BR250P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

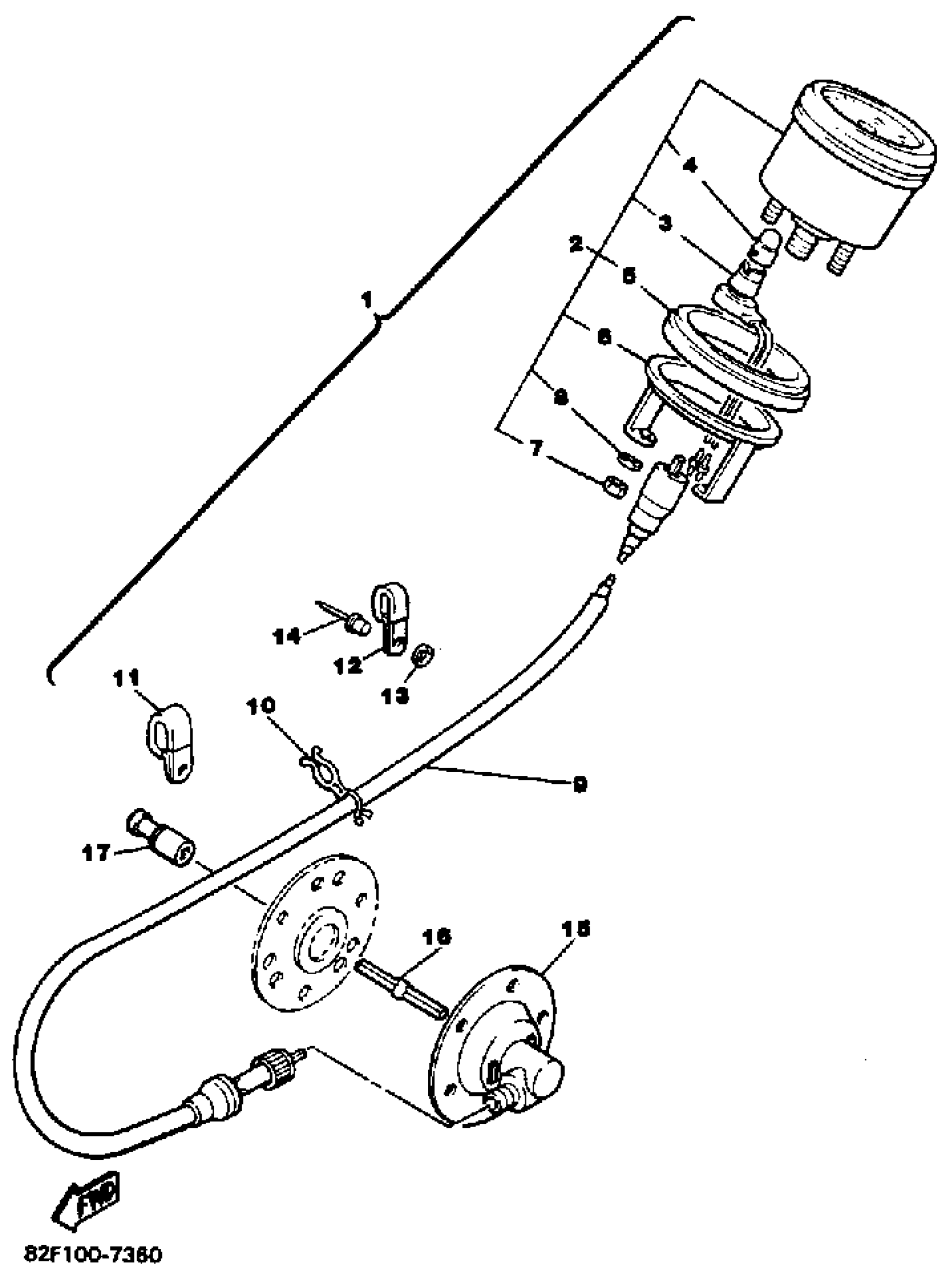

1990 Yamaha Bravo (BR250P) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEDO KIT, BR250

80V-W0081-40-00

1
Out of stock

2

. SPEEDOMETER ASSY (MILE/H)

80V-83510-40-00

1
Out of stock

3

. UNAVAILABLE IN PRICE BOOK

8V-78353-64-00

1
Out of stock

4

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

5

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

6

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

SPEEDOMETER CABLE ASSY

8Y8-83550-00-00

1

$32.05

In stock

10

CLAMP

90464-10038-00

1
Out of stock

11

CLAMP (6A4)

90461-06M01-00

—

$5.32

In stock

12

CLAMP

90465-08028-00

1

$4.62

In stock

13

WASHER, PLATE (34L)

90201-043H7-00

1

$2.57

In stock

14

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

15

. METER GEAR HOUSING

8R4-47700-00-00

1
Out of stock

16

JOINT

8K4-47715-00-00

—

$4.60

In stock

17

CONNECTOR

8K4-47577-00-00

—

$16.57

In stock
