1990 Yamaha Bravo (BR250P) Instrument Panel Diagram

← All diagrams

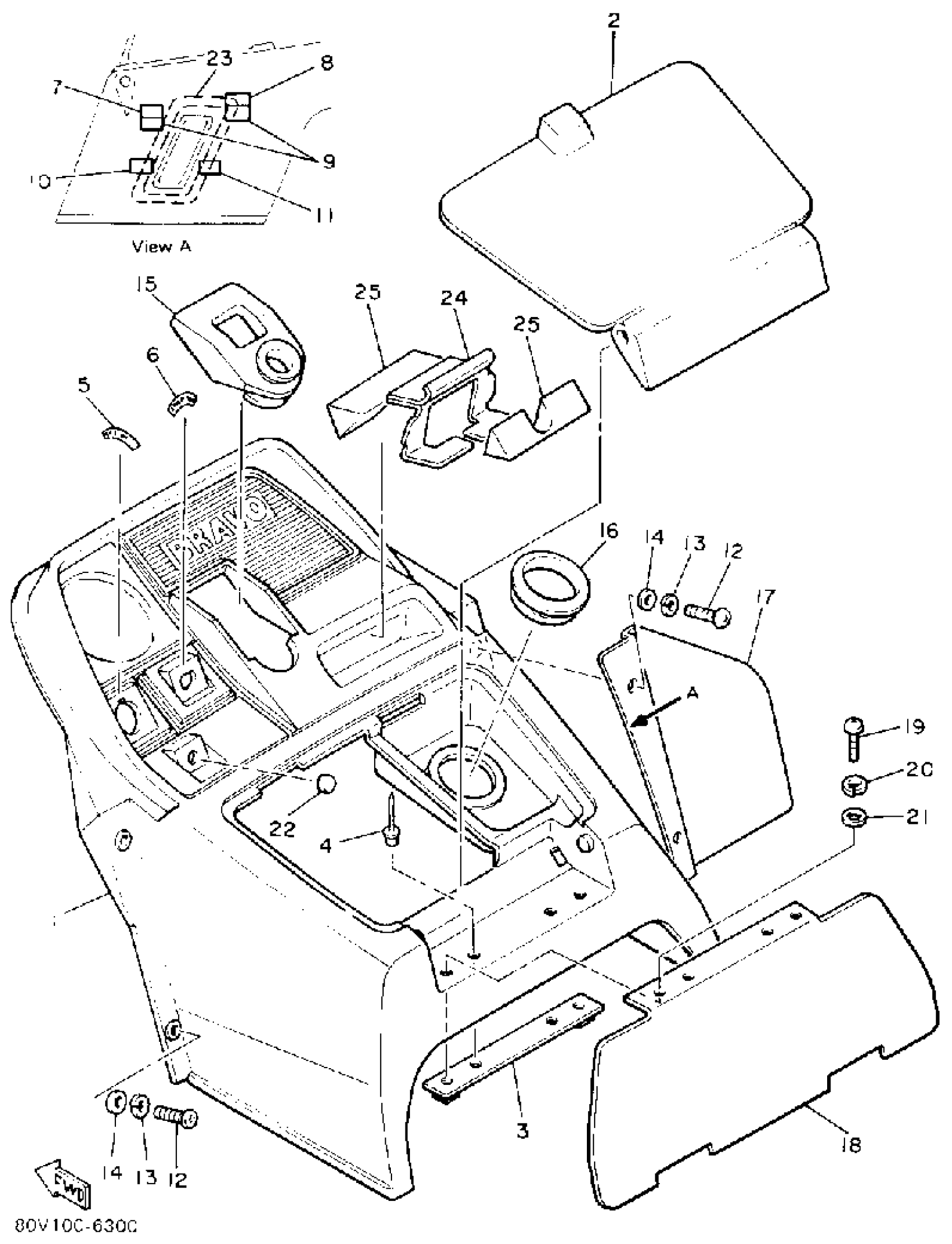

Find the part on the Instrument Panel diagram for your 1990 Yamaha Bravo (BR250P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Bravo (BR250P) Instrument Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, INSTRUMENT

80F-77711-01-00

1
Out of stock

2

PANEL, INSTRUMENT

8R4-77712-00-00

1
Out of stock

3

BRACKET 2

80F-77722-00-00

1
Out of stock

4

RIVET, BLIND

90267-48117-00

1
Out of stock

5

INDICATOR 1

8K2-77741-01-00

1
Out of stock

6

INDICATOR 2

8K4-77742-00-00

1
Out of stock

7

INDICATOR 2

8G8-77742-00-00

1
Out of stock

8

INDICATOR 3

8A1-77743-00-00

1
Out of stock

9

INDICATOR 4

878-77744-00-00

1
Out of stock

10

INDICATOR 5

878-77745-00-00

1
Out of stock

11

INDICATOR 4

8A1-77744-00-00

1
Out of stock

12

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

13

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

14

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

15

GROMMET, INSTRUMENT PANEL

8R4-77740-00-00

—

$17.14

In stock

16

GROMMET (8R4)

90480-53313-00

—

$7.05

In stock

17

BRACKET 1

8U0-77721-00-00

—
Out of stock

18

SHIELD 1

80F-77731-00-00

1
Out of stock

19

SCREW, PAN

98517-06012-00

—

$3.14

In stock

20

WASHER, SPRING

92907-06100-00

—
Out of stock

21

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

22

GROMMET 122154860000

90480-12012-00

—

$4.70

In stock

23

PATCH 1

80F-2171F-00-00

1
Out of stock

24

BRACKET 1

80F-23881-00-00

—

$45.80

In stock

25

SPACER

80F-23858-00-00

1
Out of stock
