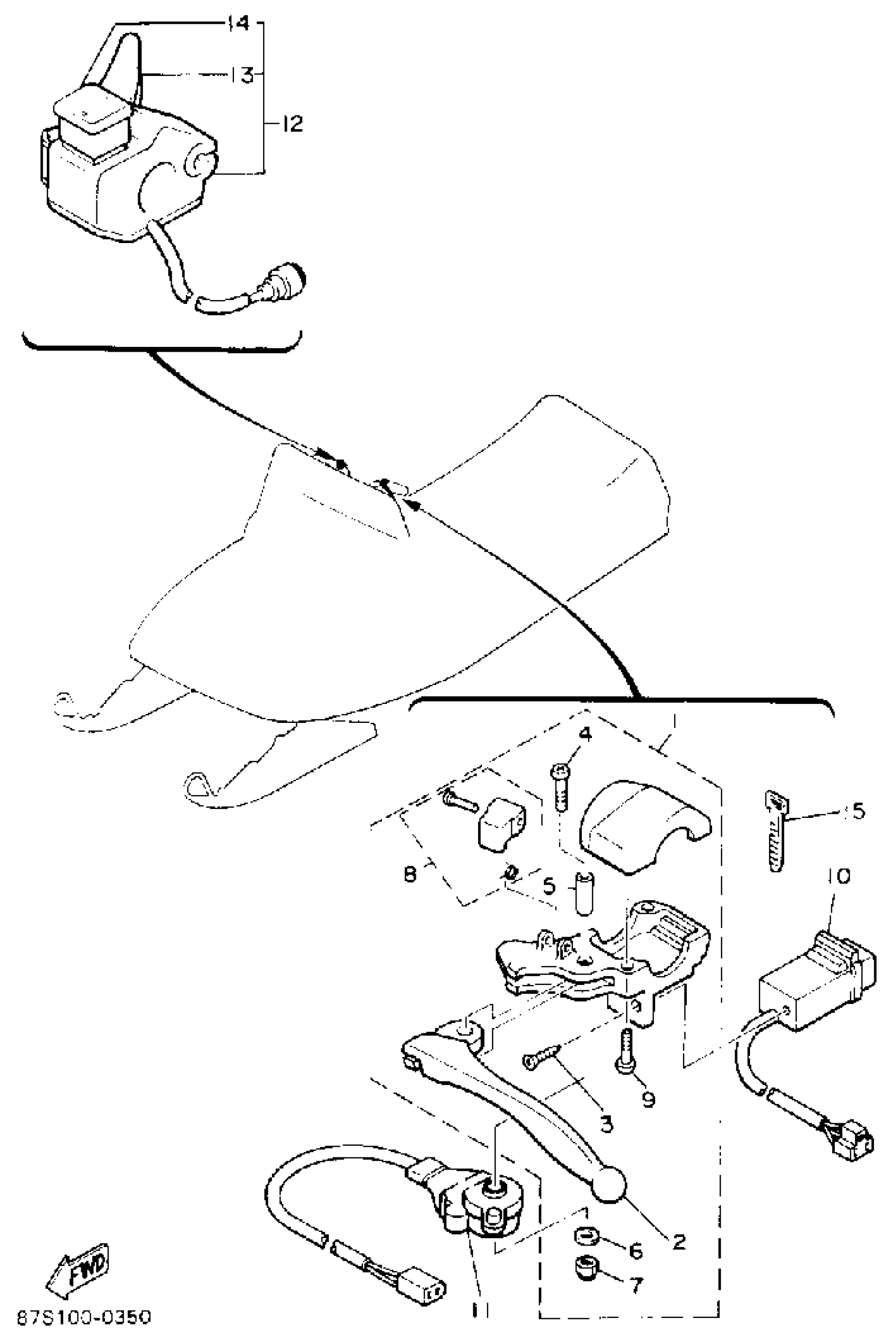

Yamaha BR250P (BRAVO) 1990 ELECTRICAL 2 Diagram

LEVER HOLDER ASSY (LEFT)

8R4-W8291-02-00

Unavailable

LEVER L

803-83912-00-38

Unavailable

. SCREW, TAPPING

97780-30312-00

Unavailable

SCREW,PANHEAD (EG9)

98580-05540-00

$8.49

COLLAR, LEVER

802-83913-00-00

Unavailable

. WASHER, PLAIN

92990-05200-00

Unavailable

NUT, NYLON

95707-05300-00

$4.24

LEVER LOCK ASSY

8E3-W8393-01-00

Unavailable

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

BEAM SWITCH ASSY

8H8-83950-01-00

$79.99

STOP SWITCH ASSY

8R4-82530-00-00

$36.99

LVR HOLDER ASSEMBLY RT

85G-82720-00-00

Unavailable

LEVER, THROTTLE

8V0-42138-00-00

$64.99

. KILL SWITCH

85G-82575-09-00

Unavailable

BAND, SWITCH CORD

437-83936-01-00

$7.99
