Description

Price

1

CDI UNIT ASSEMBLY

83Y-85540-M0-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

4

BOLT, FLANGE

95817-06012-00

$1.43

5

IGNITION COIL ASSY

86B-82310-13-00

$84.99

6

WIRE, SUB-LEAD

83Y-82318-00-00

$8.99

7

SCREW PAN HEAD

98580-06040-00

$8.49

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

PLUG CAP ASSY

85G-82370-20-00

$34.99

11

SEAL

8G5-82372-00-00

$5.60

12

MAIN SWITCH ASSY

8R4-82510-20-00

$117.99

13

WIRE HARNESS ASSEMBLY

83Y-82590-20-00

Unavailable

14

GROMMET (2N3)

90480-16233-00

$8.49

15

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

16

HOSE

90446-07182-00

Unavailable

17

CLAMP

90465-08028-00

Unavailable

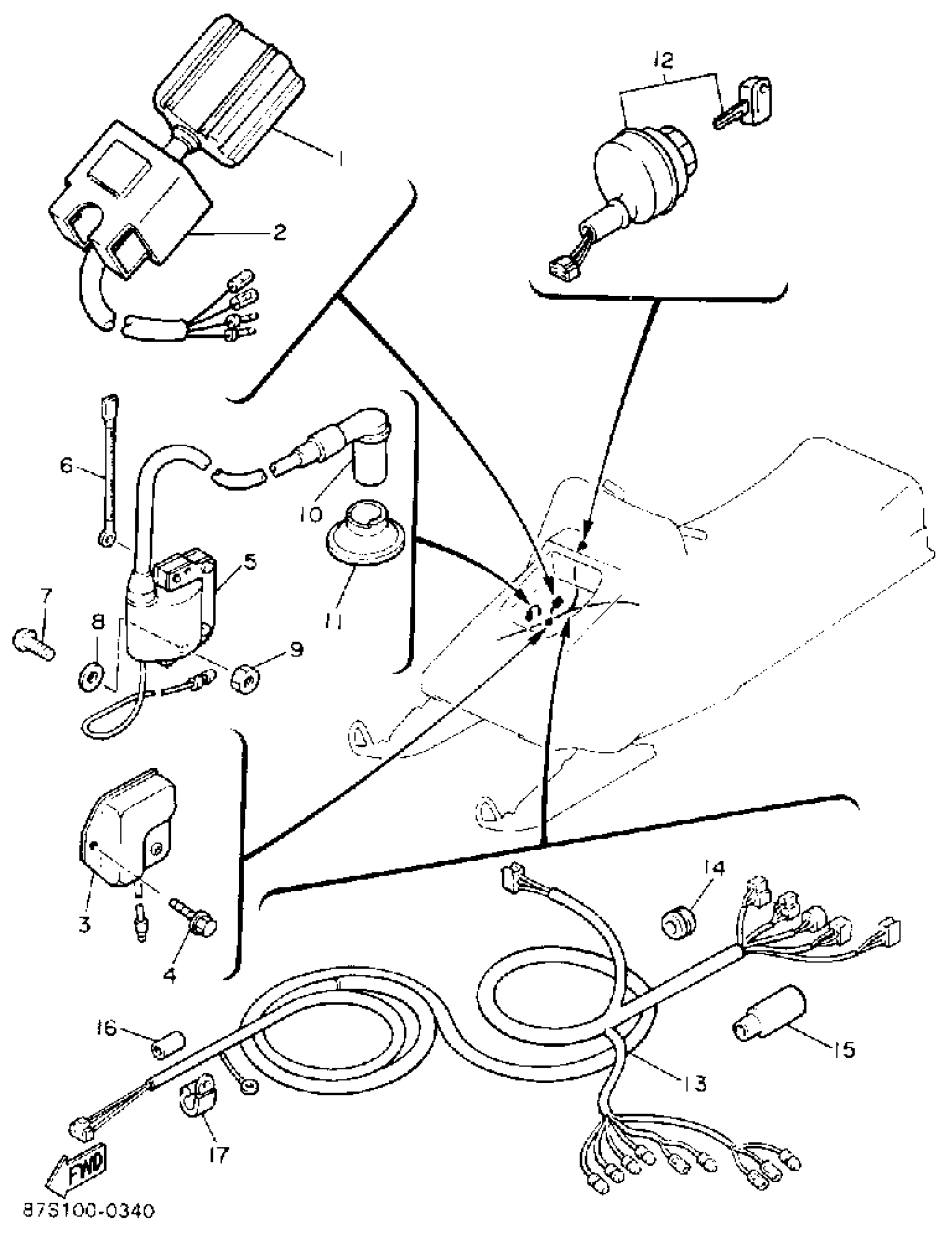

Yamaha BR250P (BRAVO) 1990 ELECTRICAL 1 Diagram

CDI UNIT ASSEMBLY

BAND

VOLTAGE REGULATOR ASSY

BOLT, FLANGE

IGNITION COIL ASSY

WIRE, SUB-LEAD

SCREW PAN HEAD

WASHER, PLAIN (646)

NUT, HEXAGON

PLUG CAP ASSY

SEAL

MAIN SWITCH ASSY

WIRE HARNESS ASSEMBLY

GROMMET (2N3)

COVER, CONNECTER

HOSE

CLAMP
