TRACK SUSPENSION 1

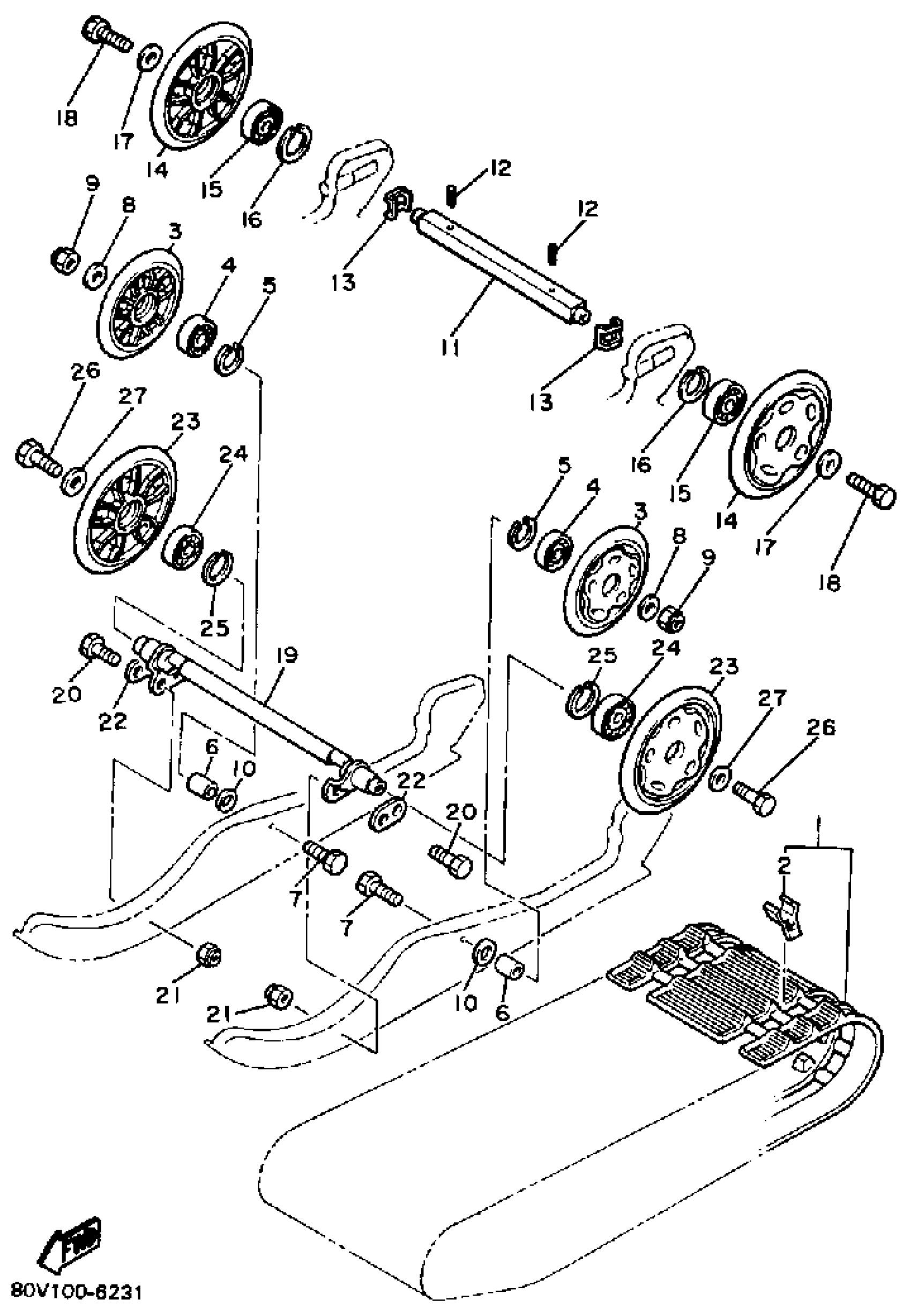

Yamaha BR250N (BRAVO) 1989 TRACK SUSPENSION 1 Diagram
#
Description
Price
1
TRACK ASSY
8R4-47110-01-00
Unavailable
2
METAL, SLIDE
8A5-47115-00-00
Unavailable
3
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
4
BEARING(8AB)
93306-00444-00
$41.99
5
CIRCLIP(5U8)
99009-42500-00
$8.49
6
COLLAR
90387-120F6-00
Unavailable
7
BOLT
90101-12539-00
Unavailable
8
YBS66-12 WASHER,PLAIN
92990-12200-00
$8.49
9
NUT, NYLON
95717-12300-00
$7.49
10
WASHER, PLATE (4N0)
90201-126A7-00
$9.49
11
AXLE, REAR
8E3-47521-00-00
Unavailable
12
PIN, SPRING (663)
91690-40040-00
Unavailable
13
WASHER
8E3-47384-00-00
Unavailable
14
WHEEL GUIDE COMP.
8L4-47530-00-00
$171.99
15
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
$40.99
16
CIRCLIP(48Y)
99009-47500-00
Unavailable
17
WASHER, PLATE (8M2)
90201-083A8-00
Unavailable
18
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
19
BAR, SUSPENSION
8R4-47451-10-00
Unavailable
20
BOLT, HEXAGON
97017-08030-00
Unavailable
21
NUT, NYLON
95717-08300-00
Unavailable
22
SPACER
8G5-47466-00-00
Unavailable
23
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
24
BEARING(8AB)
93306-00444-00
$41.99
25
CIRCLIP(5U8)
99009-42500-00
$8.49
26
BOLT (8K2)
90109-08559-00
Unavailable
27
WASHER (8G1)
90201-08681-00
Unavailable
