STEERING

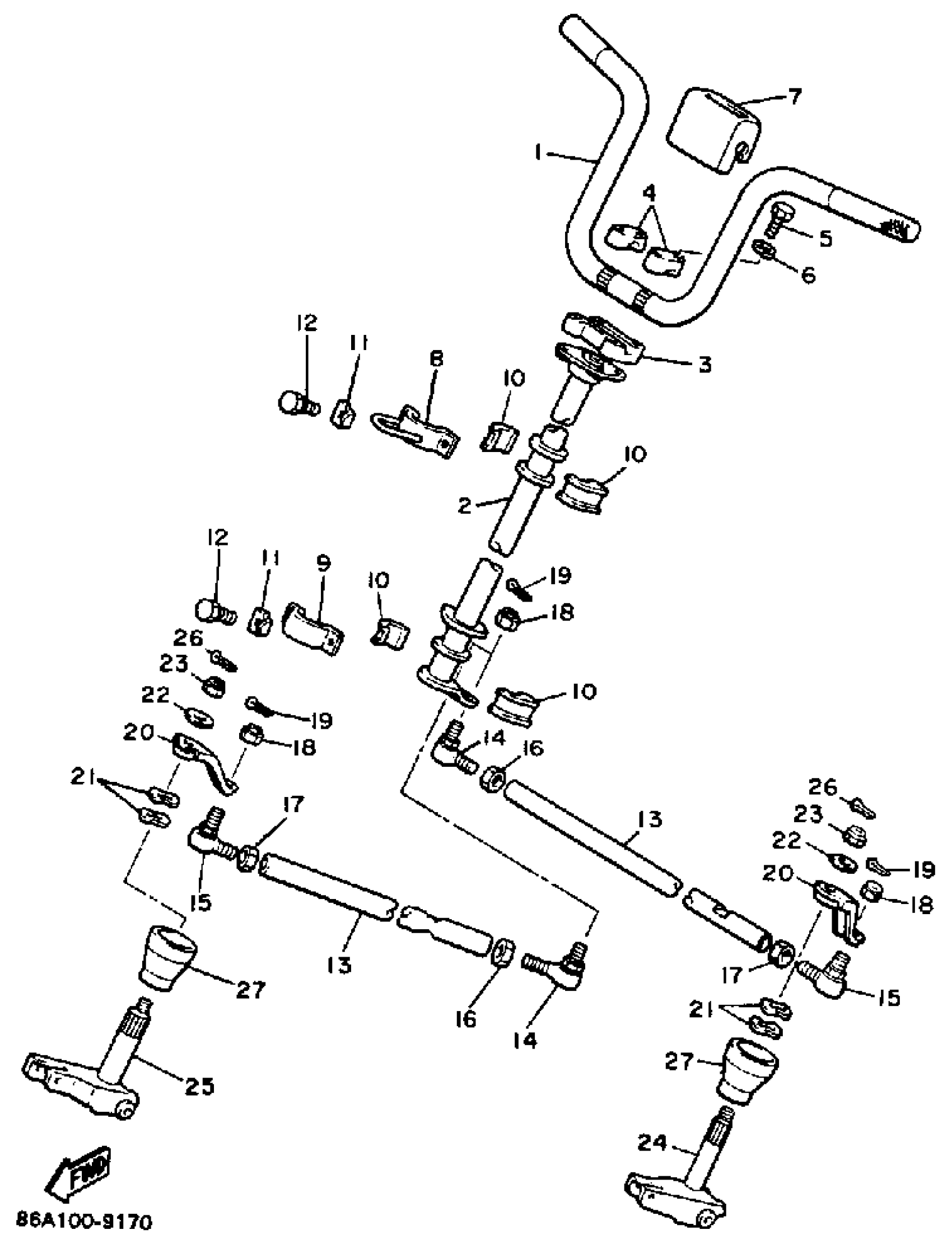

Yamaha BR250N (BRAVO) 1989 STEERING Diagram
#
Description
Price
1
COLUMN, STEERING
86A-23811-90-00
$95.99
2
COLUMN, STEERING 2
8R4-23813-00-00
$131.99
3
HANDLE, HOLDER
164-23441-01-98
Unavailable
4
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
5
BOLT, HEXAGON
97017-08055-00
$9.49
6
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
7
COVER, STEERING
8F3-23818-00-00
Unavailable
8
HOLDER, BEARING
84M-23872-00-00
Unavailable
9
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
9
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
10
UNAVAILABLE IN PRICE BOOK
8G3-23812-00-00
Unavailable
11
WASHER, LOCK 1
8AC-23894-01-00
$4.78
12
BOLT, HEXAGON
97017-08016-00
$8.49
13
ROD, STEERING RELAY
8R4-23821-00-00
Unavailable
14
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
15
JOINT, UNIVERSAL 2
86X-23845-00-00
Unavailable
16
NUT (682)
95380-10700-00
Unavailable
17
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
18
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
19
PIN, COTTER
91490-25020-00
Unavailable
20
ARM, OUTSIDE 1
88P-23851-00-00
Unavailable
21
WASHER, WAVE (878)
90206-20037-00
Unavailable
22
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
23
NUT, NYLON
95707-10300-00
Unavailable
24
COLUMN, SKI 1
8R4-23853-01-00
Unavailable
25
COLUMN, SKI 2
8R4-23854-01-00
Unavailable
26
PIN, COTTER
91490-25020-00
Unavailable
27
COVER 2
8U0-2198G-00-00
Unavailable
