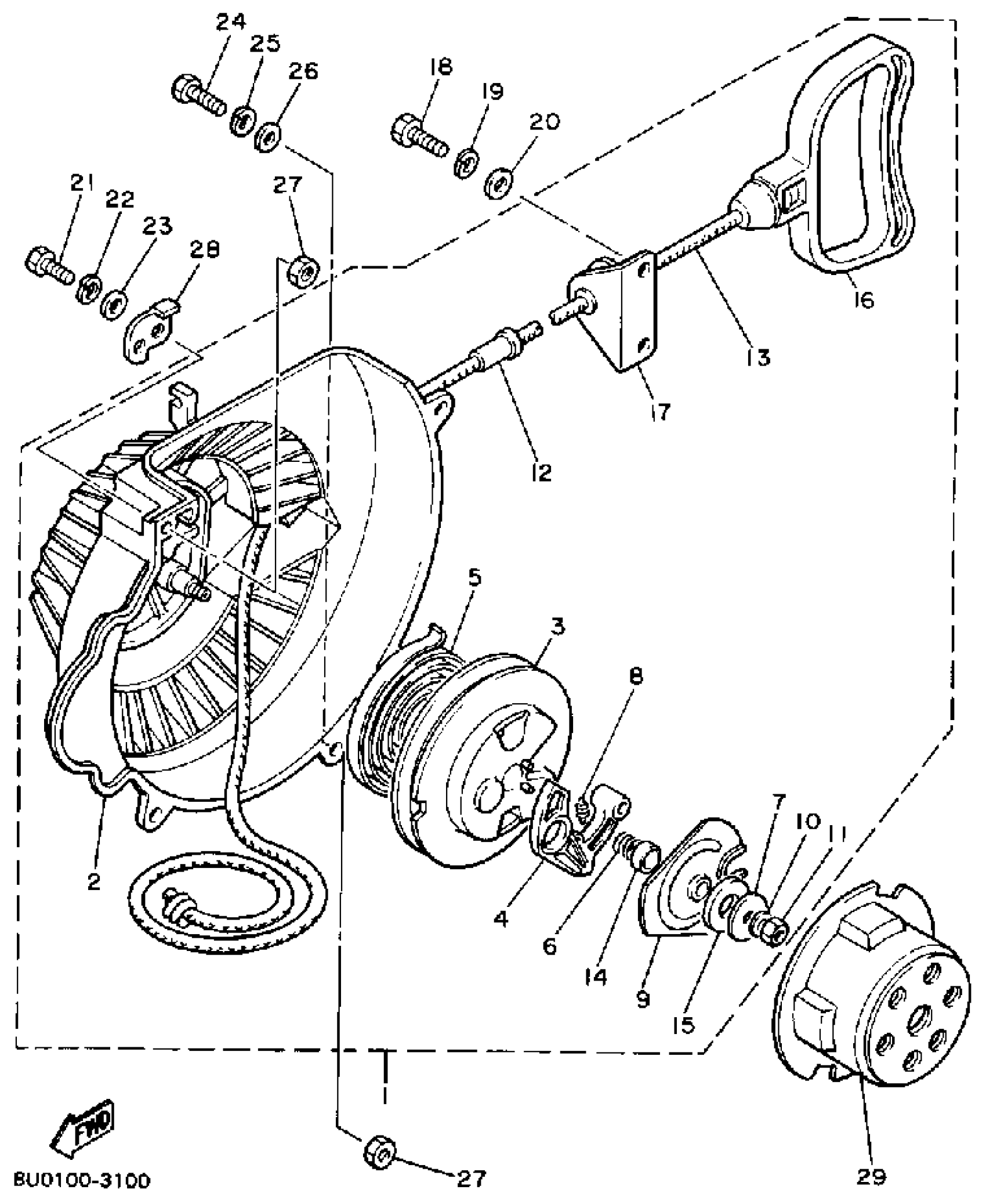

Yamaha BR250N (BRAVO) 1989 STARTER Diagram
#
Description
Price
1
STARTER ASSY
8R4-15710-01-00
$378.99
2
CASE, STARTER
8R4-15711-00-00
Unavailable
3
DRUM, SEAVE
8F3-15714-01-00
$48.99
4
PAWL, DRIVE
8F3-15741-01-00
$28.99
5
SPRING, STARTER
8F3-15713-01-00
$48.99
6
SPRING, DRIVE PLATE
8F3-15715-00-00
$9.99
7
WASHER, THRUST
8F3-15739-01-00
$11.99
8
SPRING, RETURN
8F3-15734-00-00
$5.49
9
PLATE, DRIVE
8F3-15716-03-00
$29.99
10
WASHER, SPRING
92995-06100-00
Unavailable
11
NUT(650)
95380-06700-00
$8.49
12
GUIDE, ROPE
8F3-15758-00-00
$20.99
13
WIRE, STARTER (BRAIDED)
89A-15751-00-00
$33.99
14
. PLATE, DRIVE
82M-15716-00-00
Unavailable
15
WASHER, THRUST
8G5-15739-00-00
$9.49
16
HANDLE, STARTER
8F3-15755-00-00
Unavailable
17
. HOLDER, HANDLE
8R4-15788-01-00
Unavailable
18
BOLT, HEXAGON
97013-08020-00
Unavailable
19
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
20
.. WASHER, PLATE
92990-08600-00
Unavailable
21
BOLT, HEXAGON
97017-06025-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
WASHER, PLAIN (646)
92990-06600-00
Unavailable
24
BOLT, HEXAGON
97017-06030-00
Unavailable
25
WASHER, SPRING
92995-06100-00
Unavailable
26
WASHER, PLAIN (646)
92990-06600-00
Unavailable
27
NUT, HEXAGON
95380-06600-00
Unavailable
28
STOPPER, SHROUD
8R4-77118-00-00
Unavailable
29
PULLEY, STARTER
8R4-15723-00-00
Unavailable
