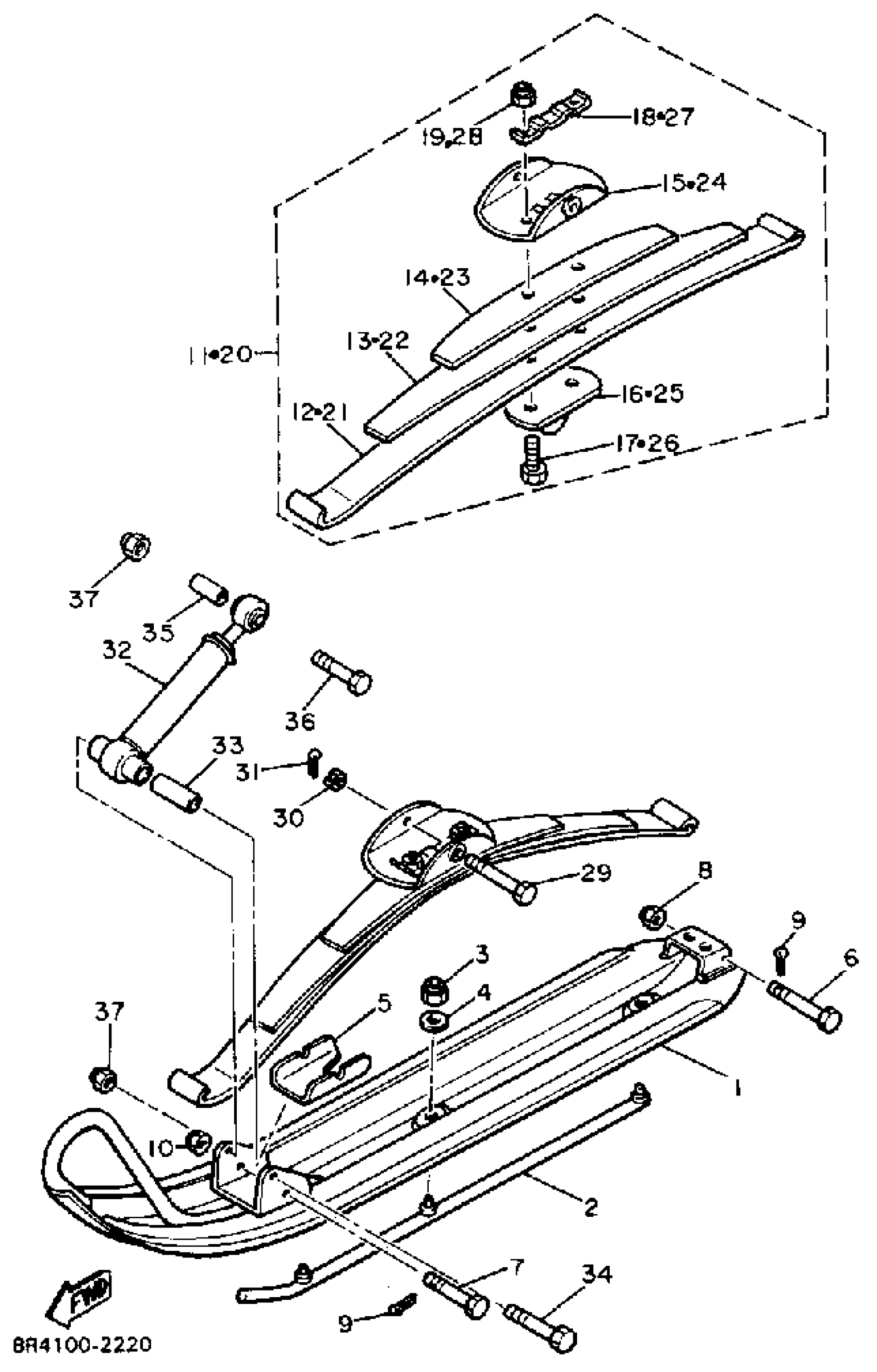

Yamaha BR250N (BRAVO) 1989 SKI Diagram
#
1
SKI COMP
8F3-23710-01-00
$178.99
2
SKI RUNNER, 1
888-23731-01-XX
Unavailable
3
NUT, NYLON
95717-08300-00
$2.70
4
WASHER(6TC)
92907-08200-00
$8.49
5
PLATE, WEAR
8F3-23735-00-00
$20.99
6
BOLT PIN HOLE HEXAGON(8E6)
90102-08028-00
$10.49
7
BOLT, PIN HOLE (8A7)
90102-08027-00
$8.49
8
NUT, NYLON
95717-08300-00
$2.70
9
PIN, COTTER
91490-20025-00
$1.99
10
NUT, U
95617-08100-00
$9.49
11
SPRING ASSEMBLY 1
8R4-23760-00-00
Unavailable
12
LEAF 2
8F3-23762-10-00
Unavailable
13
LEAF 2
8F3-23762-10-00
Unavailable
14
LEAF 3
8F3-23763-10-00
Unavailable
15
SADDLE
8G6-23766-00-00
Unavailable
16
. SEAT, SPRING 1
878-23768-00-00
Unavailable
17
. BOLT
90109-105E7-00
Unavailable
18
WASHER, ROCK (8J5)
90215-10155-00
Unavailable
19
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
20
SPRING ASSY 2
8R4-23770-10-00
Unavailable
21
LEAF 1
8F3-23761-10-00
Unavailable
22
LEAF 2
8F3-23762-10-00
Unavailable
23
LEAF 3
8F3-23763-10-00
Unavailable
24
SADDLE
8G6-23766-00-00
Unavailable
25
. SEAT, SPRING 1
878-23768-00-00
Unavailable
26
. BOLT
90109-105E7-00
Unavailable
27
WASHER, ROCK (8J5)
90215-10155-00
Unavailable
28
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
29
BOLT, PIN HOLE (8G6)
90102-12030-00
Unavailable
30
NUT, CASTLE
95307-12900-00
Unavailable
31
PIN, COTTER
91490-30030-00
Unavailable
32
SHOCK ABSORBER ASSEMBLY
8J5-23350-00-00
Unavailable
33
COLLAR (878)
90387-08262-00
Unavailable
34
BOLT, HEXAGON
97017-08055-00
Unavailable
35
COLLAR (864)
90387-08224-00
Unavailable
36
BOLT(6TC)
97027-08070-00
Unavailable
37
NUT, NYLON
95717-08300-00
$2.70
