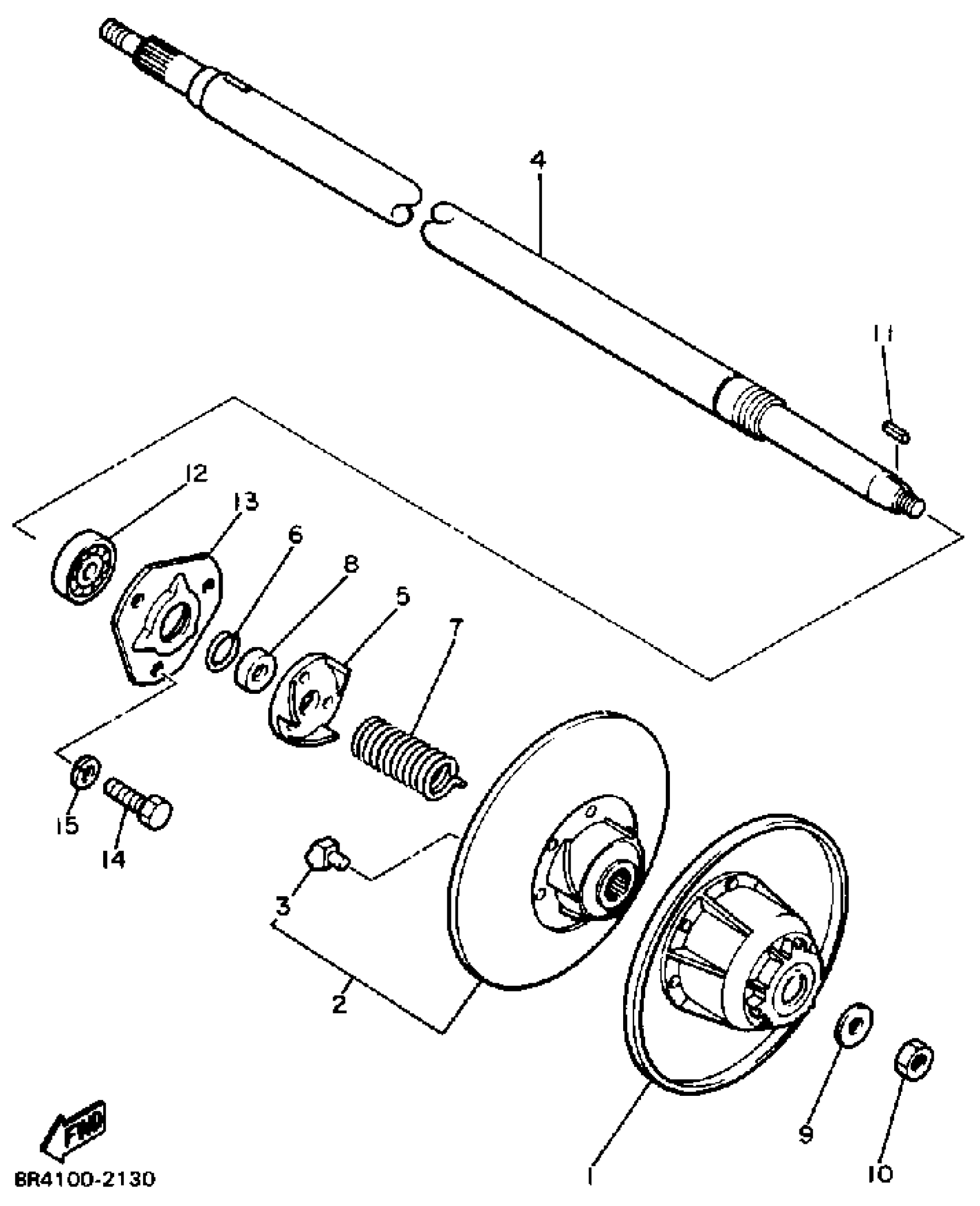

Yamaha BR250N (BRAVO) 1989 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

8R4-17660-00-00

Unavailable

2

SECONDARY SLIDING SHEAVE

8R4-17670-01-00

Unavailable

3

SHOE, RAMP

8R4-17688-00-00

$10.49

4

SHAFT, SECONDARY

8R4-17681-00-00

Unavailable

5

SEAT, SECONDARY SPRING

8R4-17684-00-00

Unavailable

6

CIRCLIP (8R4)

93440-25100-00

Unavailable

7

SPRING TORSION 806176830000

90508-40080-00

$15.99

8

COLLAR

90387-260F5-00

Unavailable

9

WASHER, PLATE (35T)

90201-122H1-00

$9.49

10

NUT, SELF LOCKING (23X)

90185-12119-00

$11.49

11

KEY, STRAIGHT (8R4)

90282-05047-00

$9.49

12

BEARING

93306-20509-00

Unavailable

13

HOUSING, BEARING

8R4-47631-00-00

Unavailable

14

BOLT, HEXAGON

97017-08016-00

$8.49

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60
