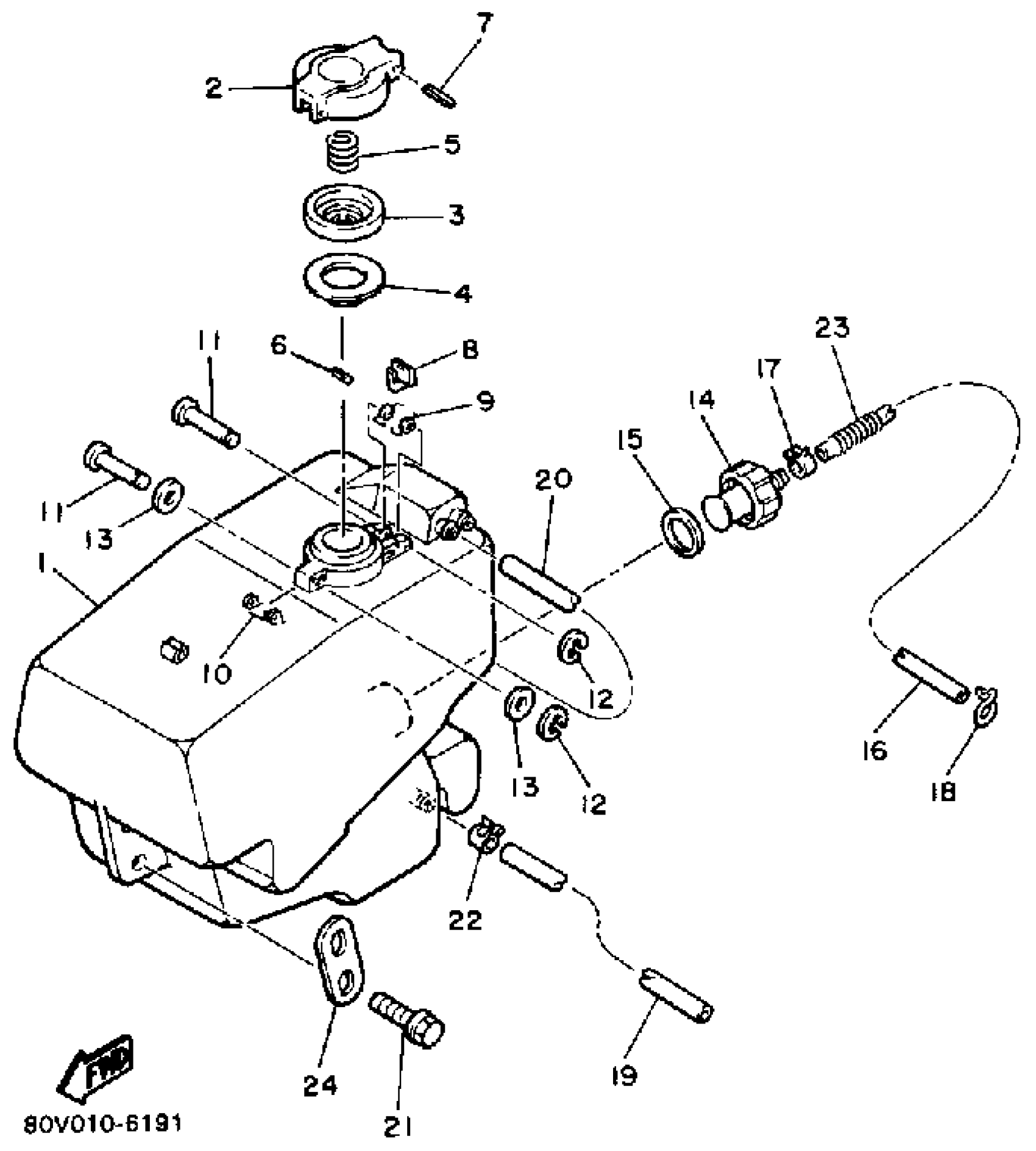

Yamaha BR250N (BRAVO) 1989 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

99999-02628-00

Unavailable

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$20.99

4

GASKET, CAP 1

89A-24641-00-00

$10.99

5

SPRING, CAP

90501-20130-00

$8.49

6

PIN, SPRING

91609-25032-00

$2.49

7

PIN, SPRING

91609-25032-00

$2.49

8

HOOK

83M-24628-00-00

$24.99

9

SPRING, TORSION(81E)

90508-10715-00

Unavailable

10

SPRING, TORSIOW (8F3)

90508-08353-00

Unavailable

11

PIN (813)

90249-03017-00

$7.49

12

CIRCLIP (604)

93430-02001-00

$8.49

13

WASHER, PLATE 8077743700

90201-03313-00

$9.49

14

FILTER ASSEMBLY

8R4-24560-00-00

Unavailable

15

PACKING, FILTER

8F3-24564-00-00

$13.49

16

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

Unavailable

17

CLIP

90467-11028-00

Unavailable

18

CLIP (8J7)

90467-11009-00

Unavailable

19

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

20

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

21

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

22

CLIP (8A1)

90467-09026-00

Unavailable

23

PROTECTOR, PIPE

8F3-24327-00-00

Unavailable

24

WASHER, SPECIAL

8R4-24186-00-00

Unavailable
