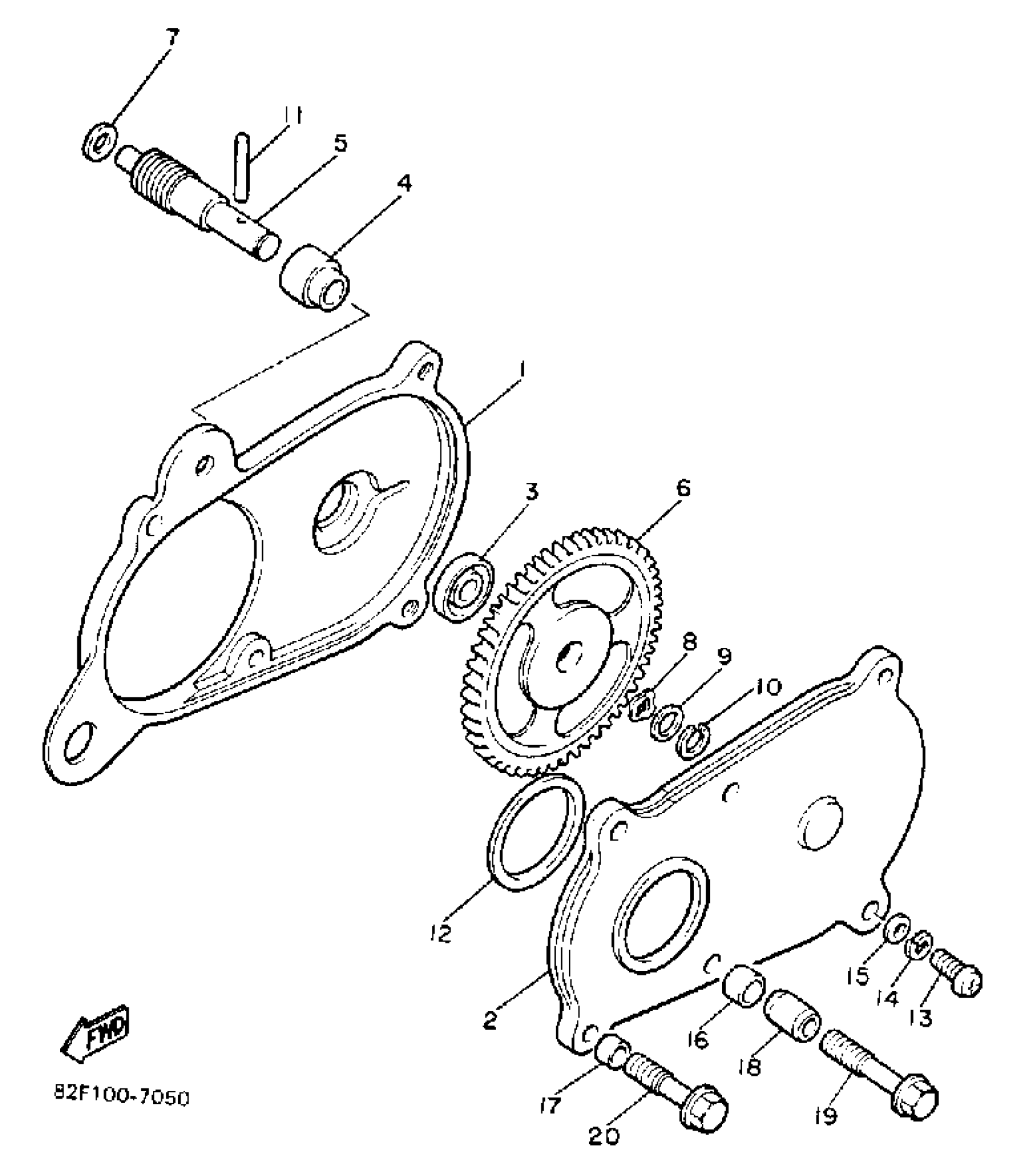

Yamaha BR250M (BRAVO) 1988 PUMP DRIVE - GEAR Diagram

#

Description
Price

1

COVER, OIL PUMP

8R4-15416-00-00

Unavailable

2

COVER, OIL PUMP 2

8R4-15426-00-00

Unavailable

3

OIL SEAL (J10)

93101-10090-00

$8.49

4

METAL, WORM SHAFT OUTER

821-13176-00-00

$17.49

5

SHAFT, WORM

8R4-13175-00-00

Unavailable

6

GEAR, DRIVE (59T)

8R4-13188-00-00

Unavailable

7

PLATE, CAM THRUST

137-13148-00-00

Unavailable

8

WASHER, WAVE (137)

90206-11016-00

Unavailable

9

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

10

CIRCLIP(10W)

99009-10400-00

$4.73

11

PIN,DOWEL (137)

93603-22028-00

$3.76

12

OIL SEAL (8R4)

93104-29072-00

$7.49

13

SCREW PAN HEAD

98580-06020-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

COLLAR(8R4)

90387-082N1-00

Unavailable

17

COLLAR(8R4)

90387-062N2-00

Unavailable

18

PIN, DOWEL

91810-18022-00

Unavailable

19

BOLT, FLANGE

95817-06030-00

Unavailable

20

BOLT, FLANGE

95822-06025-00

Unavailable
