Description

Price

1

. ROTOR ASSEMBLY

8AE-85550-00-00

Unavailable

2

BASE ASSEMBLY

8AE-85560-00-00

Unavailable

3

CHARGE COIL ASSY

8R4-85520-M0-00

$128.99

4

. TERMINAL, EARTH 2

8R4-85569-M0-00

Unavailable

5

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

. COIL, LIGHTING 1

8R4-81313-M0-00

Unavailable

8

SCREW, PAN

98507-05035-00

$8.49

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

PULSER ASSY

8R4-85580-M0-00

Unavailable

11

. TERMINAL, EARTH 1

8R4-85568-M0-00

Unavailable

12

SCREW, PAN HEAD

98511-04012-00

Unavailable

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

CLAMP (2T4)

90461-05036-00

Unavailable

15

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

16

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

17

SCREW, BIND (705)

98980-06016-00

Unavailable

18

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

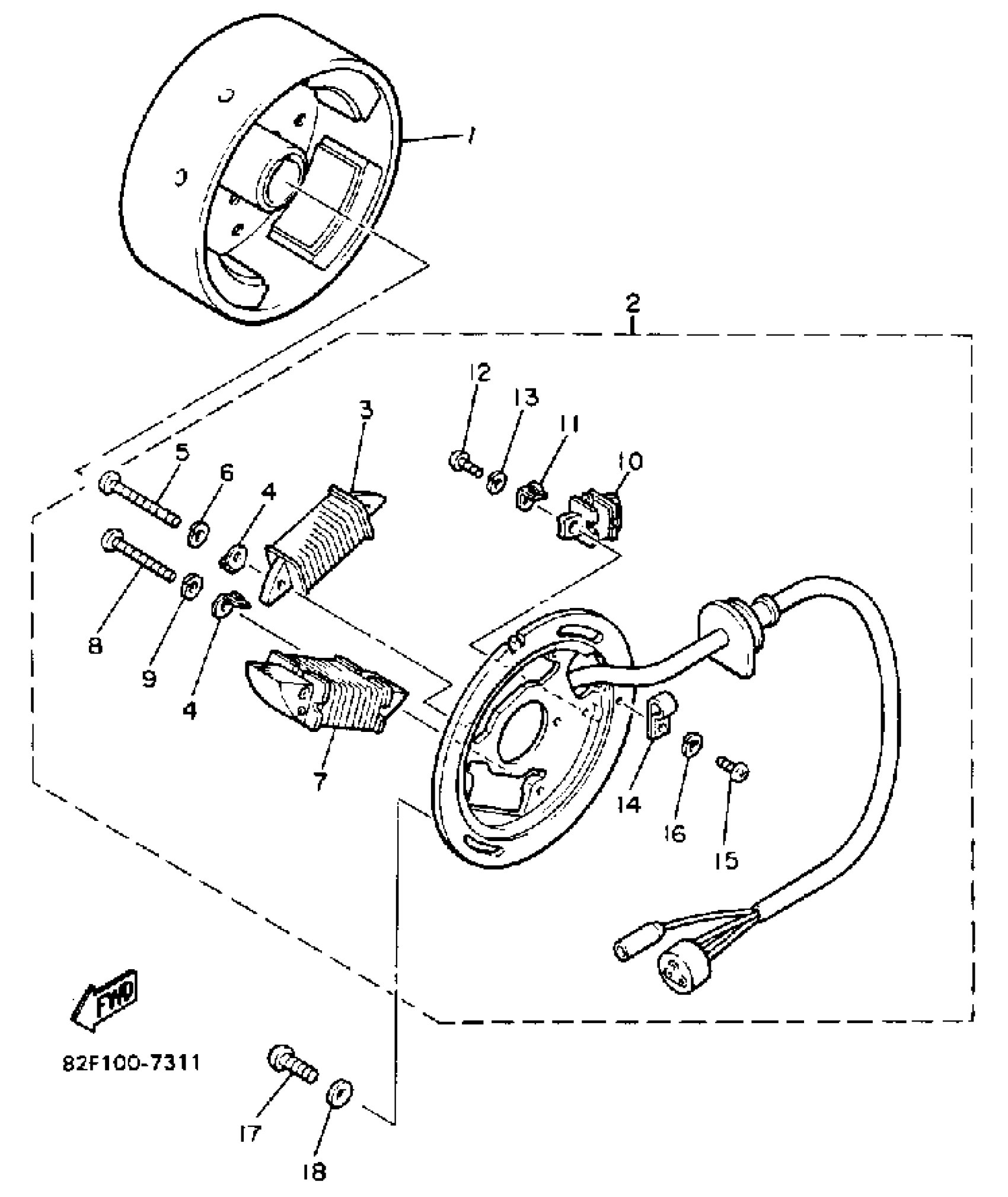

Yamaha BR250M (BRAVO) 1988 GENERATOR Diagram

. ROTOR ASSEMBLY

BASE ASSEMBLY

CHARGE COIL ASSY

. TERMINAL, EARTH 2

SCREW, PAN HEAD(6B0)

YBS67-5 WASHER, SPRING

. COIL, LIGHTING 1

SCREW, PAN

YBS67-5 WASHER, SPRING

PULSER ASSY

. TERMINAL, EARTH 1

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

CLAMP (2T4)

SCREW, PAN HEAD (713)

YBS67-4 WASHER, SPRING

SCREW, BIND (705)

WASHER, PLATE 6261117600
