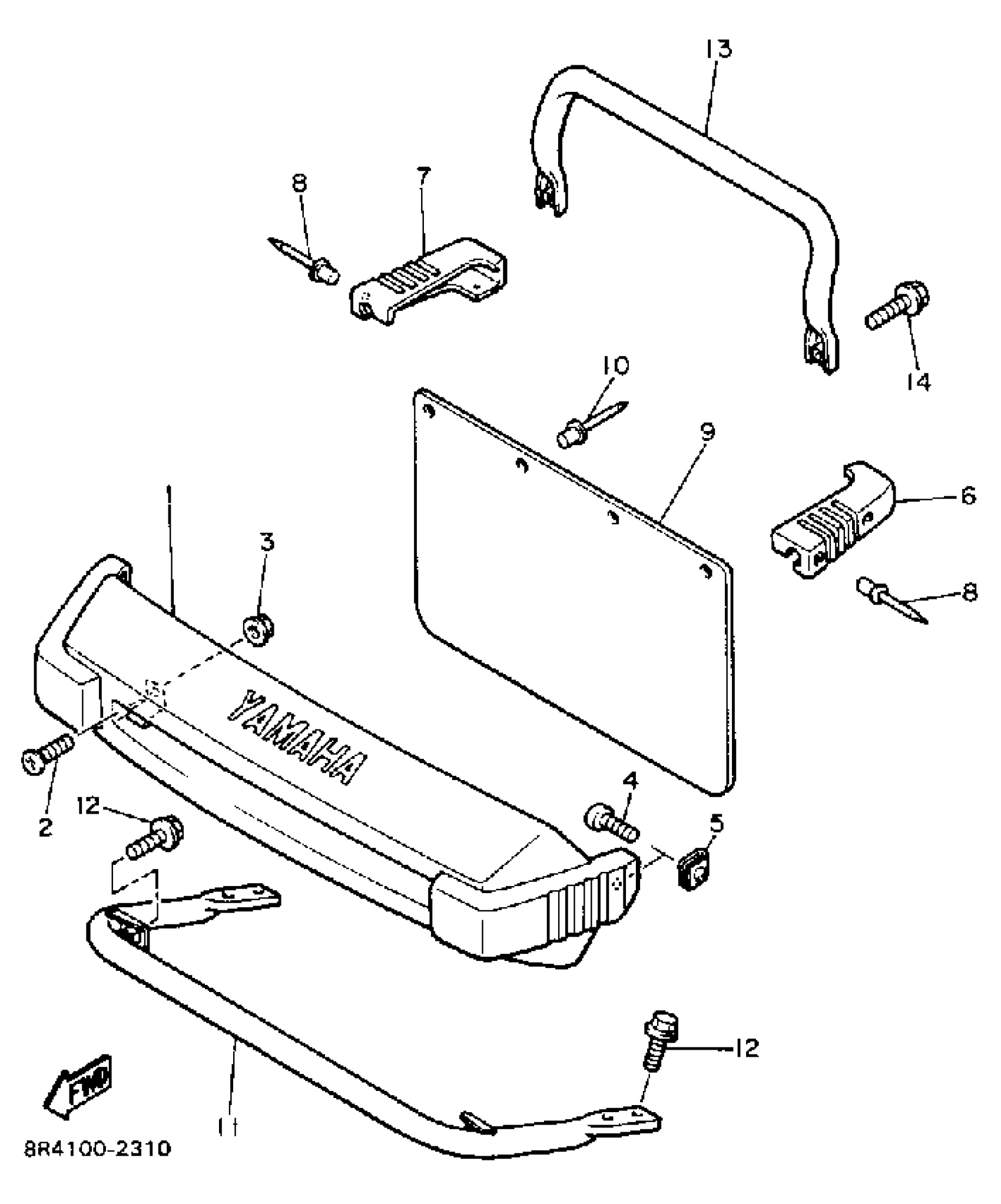

Yamaha BR250M (BRAVO) 1988 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

81X-77511-00-00

Unavailable

2

SCREW, BINDING

98907-06016-00

$9.49

3

NUT, FLANGE(7NB)

95780-06500-00

$2.60

4

SCREW, BINDING

98907-05012-00

$8.49

5

NUT, SPRING (2E9)

90183-05013-00

$8.49

6

BUMPER, REAR 3

8R4-77543-00-00

Unavailable

7

BUMPER, REAR 4

8R4-77544-00-00

Unavailable

8

RIVET, BLIND (8R4)

90267-48088-00

$3.28

9

FLAP

88C-77595-00-00

Unavailable

10

RIVET, BLIND (8R6)

90267-48086-00

$4.14

11

BUMPER, FRONT 3

8R4-77513-00-00

Unavailable

12

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

13

BUMPER, REAR 1

8R4-77541-00-00

Unavailable

14

BOLT, FLANGE

95817-08012-00

$5.49
