1987 Yamaha Bravo (BR250L) Steering Gate Diagram

← All diagrams

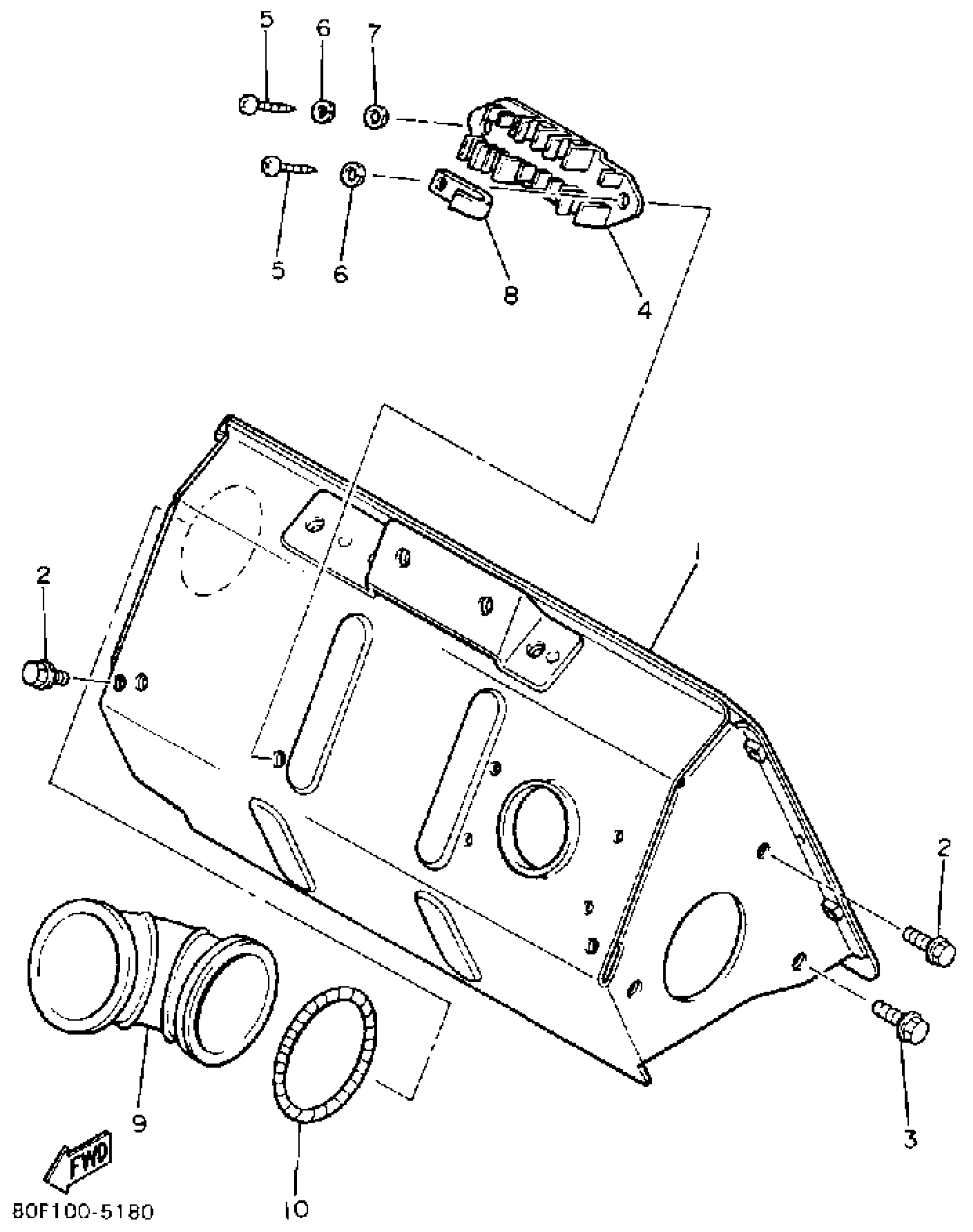

Find the part on the Steering Gate diagram for your 1987 Yamaha Bravo (BR250L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha Bravo (BR250L) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

8R4-23871-00-00

1
Out of stock

2

BOLT, FLANGE

95812-06010-00

1

$2.75

In stock

3

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

4

HOLDER, COUPLER

8F3-21794-00-00

—

$7.18

In stock

5

UNAVAILABLE IN PRICE BOOK (92502-06016-00)

92503-06016-00

1
Out of stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

8

CLAMP

90465-08028-00

1

$4.62

In stock

9

PIPE, SUCTION

8A5-14423-00-00

1
Out of stock

10

1

$6.89

In stock
