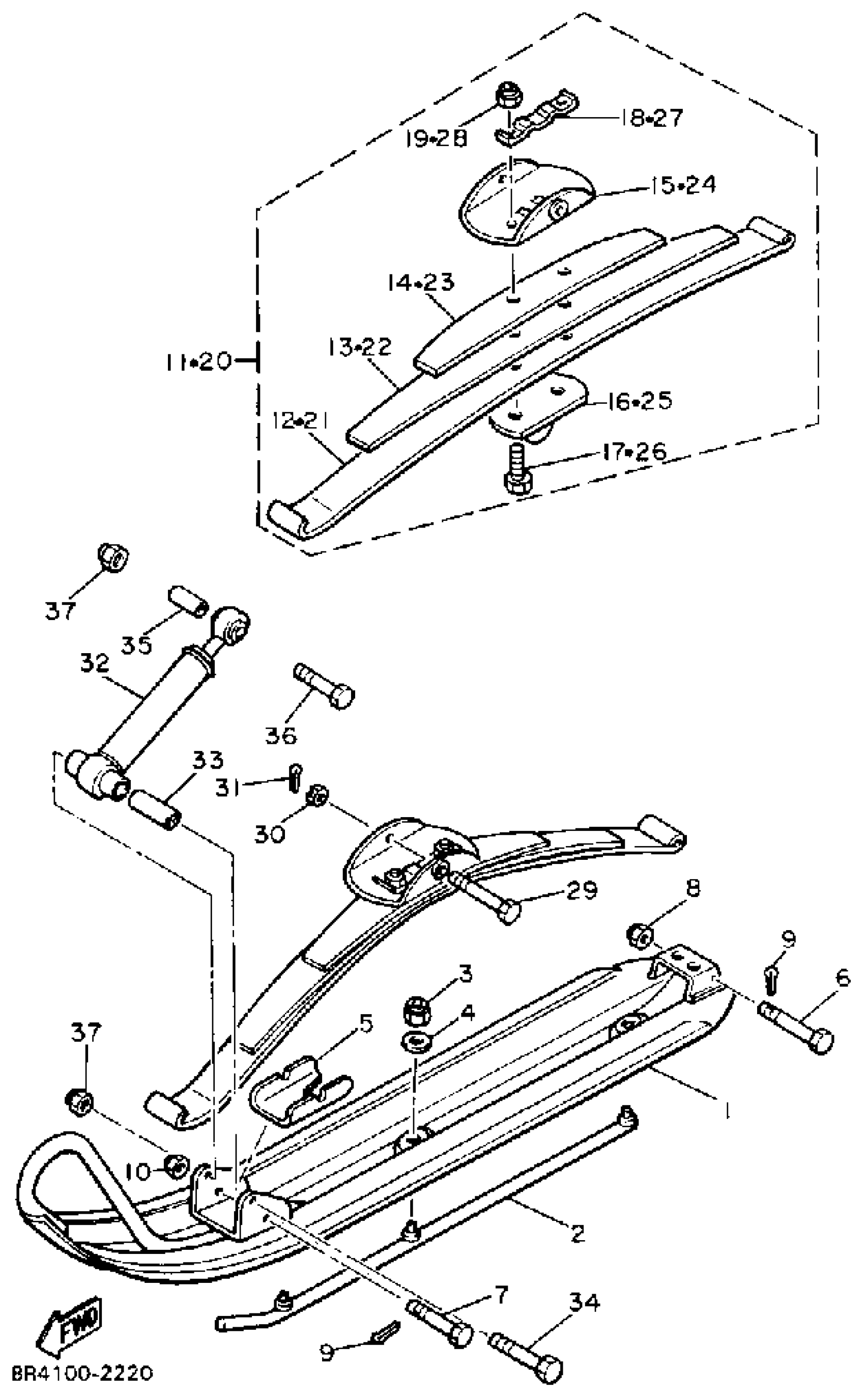

1987 Yamaha Bravo (BR250L) SKI Diagram
Find the part on the SKI diagram for your 1987 Yamaha Bravo (BR250L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
2
SKI RUNNER, 1
888-23731-01-XX
1
Out of stock
4
WASHER(6TC)
92907-08200-00
1
Out of stock
11
SPRING ASSEMBLY 1
8R4-23760-00-00
1
Out of stock
12
LEAF 1
8F3-23761-10-00
1
Out of stock
13
LEAF 2
8F3-23762-10-00
1
Out of stock
14
LEAF 3
8F3-23763-10-00
1
Out of stock
17
. BOLT
90109-105E7-00
1
Out of stock
21
LEAF 1
8F3-23761-10-00
1
Out of stock
22
LEAF 2
8F3-23762-10-00
1
Out of stock
23
LEAF 3
8F3-23763-10-00
1
Out of stock
26
. BOLT
90109-105E7-00
1
Out of stock
32
SHOCK ABSORBER ASSEMBLY
8J5-23350-00-00
1
Out of stock
