Description

Price

1

OIL PUMP ASSY

81E-13101-01-00

Unavailable

2

. PLUG

90338-21100-00

Unavailable

3

BALL

93505-32002-00

$2.92

4

SPRING (278-13169-00)

90501-02018-00

$9.49

5

HOSE (L200)

90445-05N13-00

$8.49

6

UNAVAILABLE IN PRICE BOOK

353-12552-01-00

Unavailable

7

CLIP (214-13164-00)

90468-02033-00

$8.49

8

GASKET 137131870000

90430-04004-00

$9.49

9

SCREW, BIND

98980-04008-00

Unavailable

10

PLATE, ADJUSTING

137-13138-01-00

Unavailable

11

SHIM,PLUNGER

137-13137-00-03

$5.49

11

SHIM,PLUNGER

137-13137-00-05

$6.99

11

SHIM,PLUNGER

137-13137-00-10

$7.99

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

NUT, HEXAGON (663)

95380-05600-00

$8.49

14

COVER, ADJUST PULLEY

8A5-13146-01-00

Unavailable

15

SCREW, PAN HEAD

98507-04018-00

Unavailable

16

PUMP CABLE ASSEMBLY

8R4-26320-01-00

Unavailable

17

GASKET, PUMP CASE

126-13116-01-00

Unavailable

18

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

19

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

20

CLIP (2A6)

90468-02025-00

Unavailable

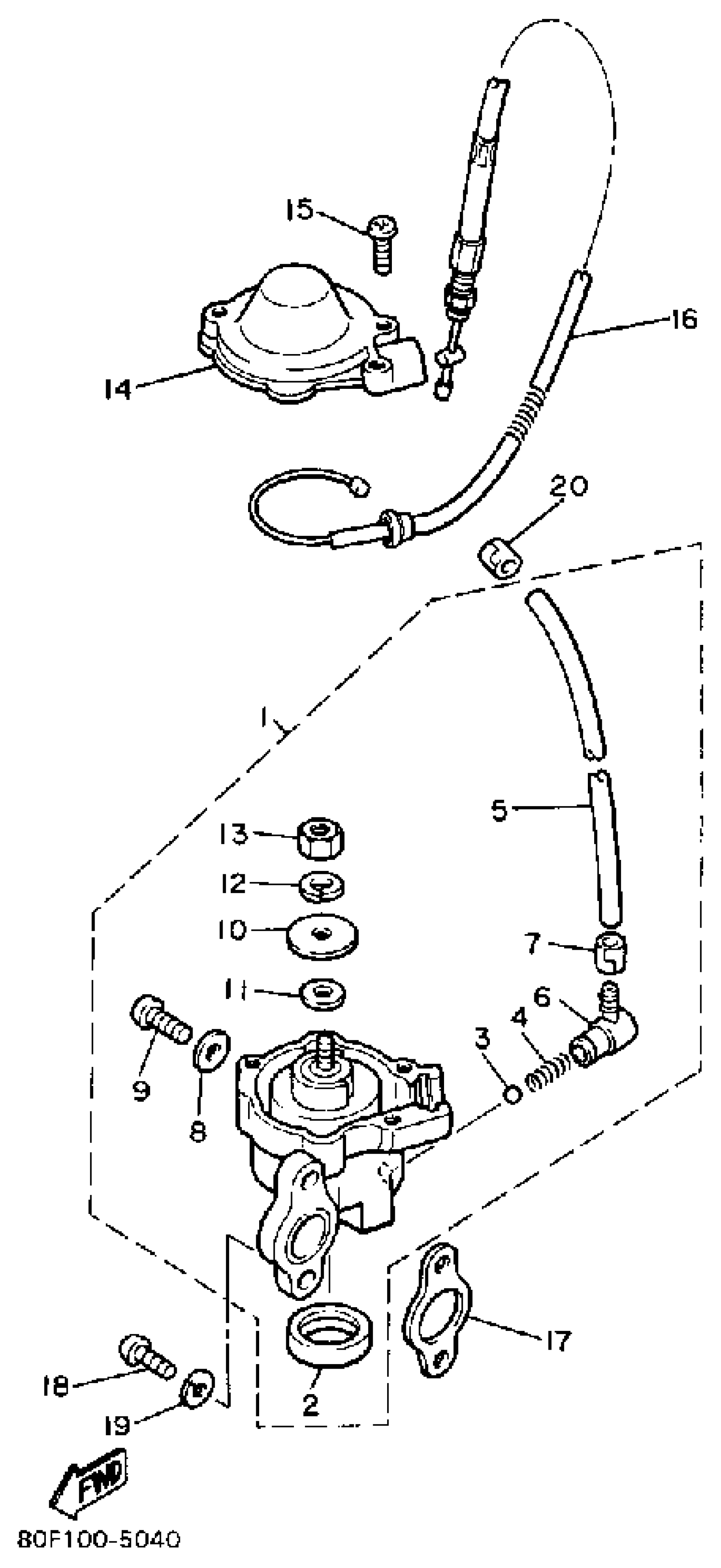

Yamaha BR250L (BRAVO) 1987 OIL PUMP Diagram

OIL PUMP ASSY

. PLUG

BALL

SPRING (278-13169-00)

HOSE (L200)

UNAVAILABLE IN PRICE BOOK

CLIP (214-13164-00)

GASKET 137131870000

SCREW, BIND

PLATE, ADJUSTING

SHIM,PLUNGER

SHIM,PLUNGER

SHIM,PLUNGER

YBS67-5 WASHER, SPRING

NUT, HEXAGON (663)

COVER, ADJUST PULLEY

SCREW, PAN HEAD

PUMP CABLE ASSEMBLY

GASKET, PUMP CASE

SCREW, PAN HEAD(6B0)

YBS67-5 WASHER, SPRING

CLIP (2A6)
