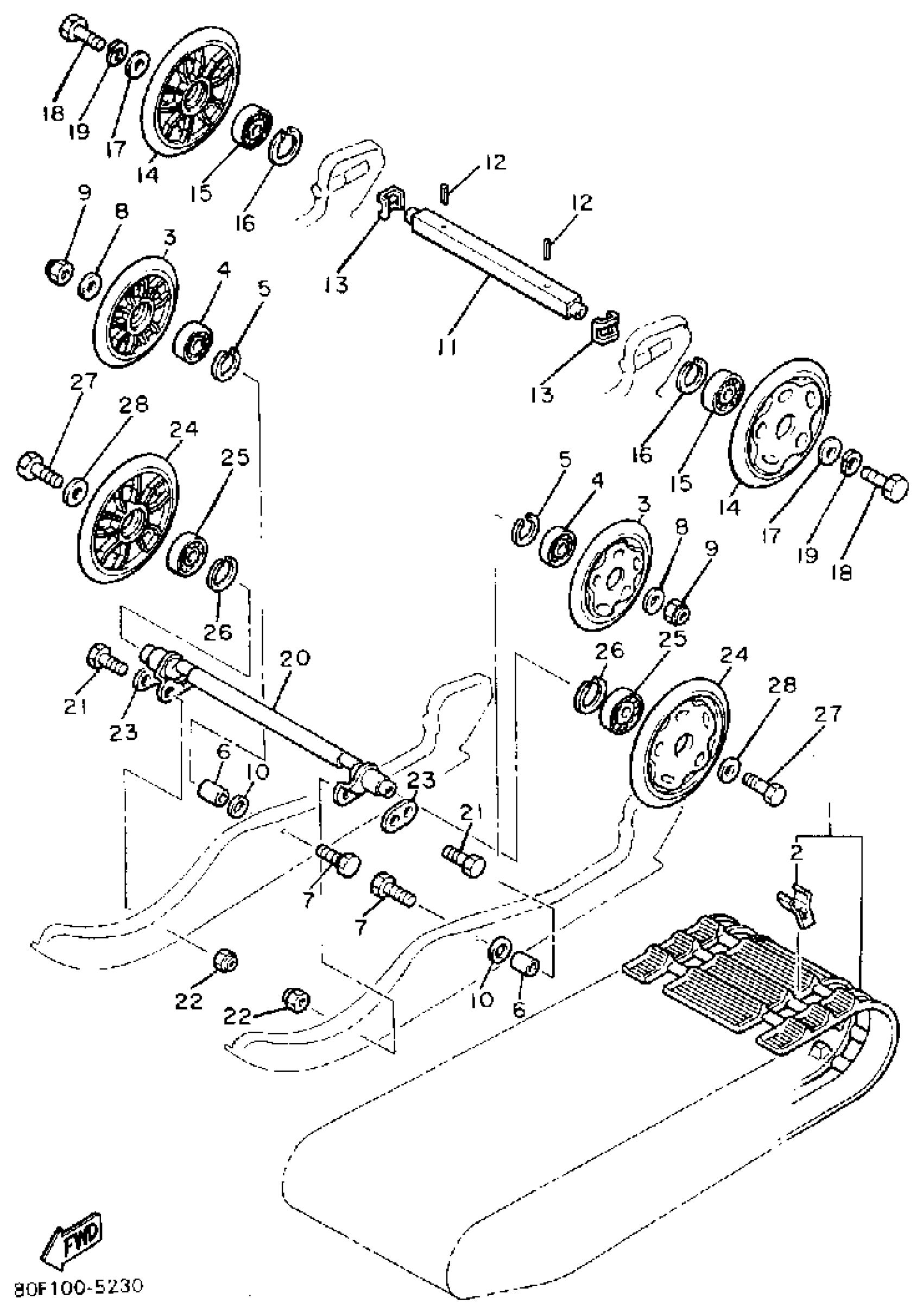

Yamaha BR250J (BRAVO) 1985 TRACK SUSPENSION 1 BR250J Diagram

#

Description
Price

1

TRACK ASSY

8R4-47110-01-00

Unavailable

2

METAL, SLIDE

8A5-47115-00-00

Unavailable

3

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

4

BEARING(8AB)

93306-00444-00

$41.99

5

CIRCLIP(5U8)

99009-42500-00

$8.49

6

COLLAR

90387-120F6-00

Unavailable

7

BOLT

90101-12539-00

Unavailable

8

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

9

NUT, NYLON

95717-12300-00

$7.49

10

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

11

AXLE, REAR

8E3-47521-00-00

Unavailable

12

PIN, SPRING (663)

91690-40040-00

Unavailable

13

WASHER

8E3-47384-00-00

Unavailable

14

WHEEL GUIDE COMP.

8L4-47530-00-00

$171.99

15

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

16

CIRCLIP(48Y)

99009-47500-00

Unavailable

17

WASHER, PLATE (8M2)

90201-083A8-00

Unavailable

18

BOLT, HEXAGON

97013-08020-00

Unavailable

19

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

20

BAR, SUSPENSION

8R4-47451-10-00

Unavailable

21

BOLT, HEXAGON

97013-08030-00

Unavailable

22

NUT, NYLON

95717-08300-00

Unavailable

23

SPACER

8G5-47466-00-00

Unavailable

24

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

25

BEARING(8AB)

93306-00444-00

$41.99

26

CIRCLIP(5U8)

99009-42500-00

$8.49

27

BOLT (8K2)

90109-08559-00

Unavailable

28

WASHER (8G1)

90201-08681-00

Unavailable
