1985 Yamaha Bravo (BR250J) Track Drive 2 Diagram

← All diagrams

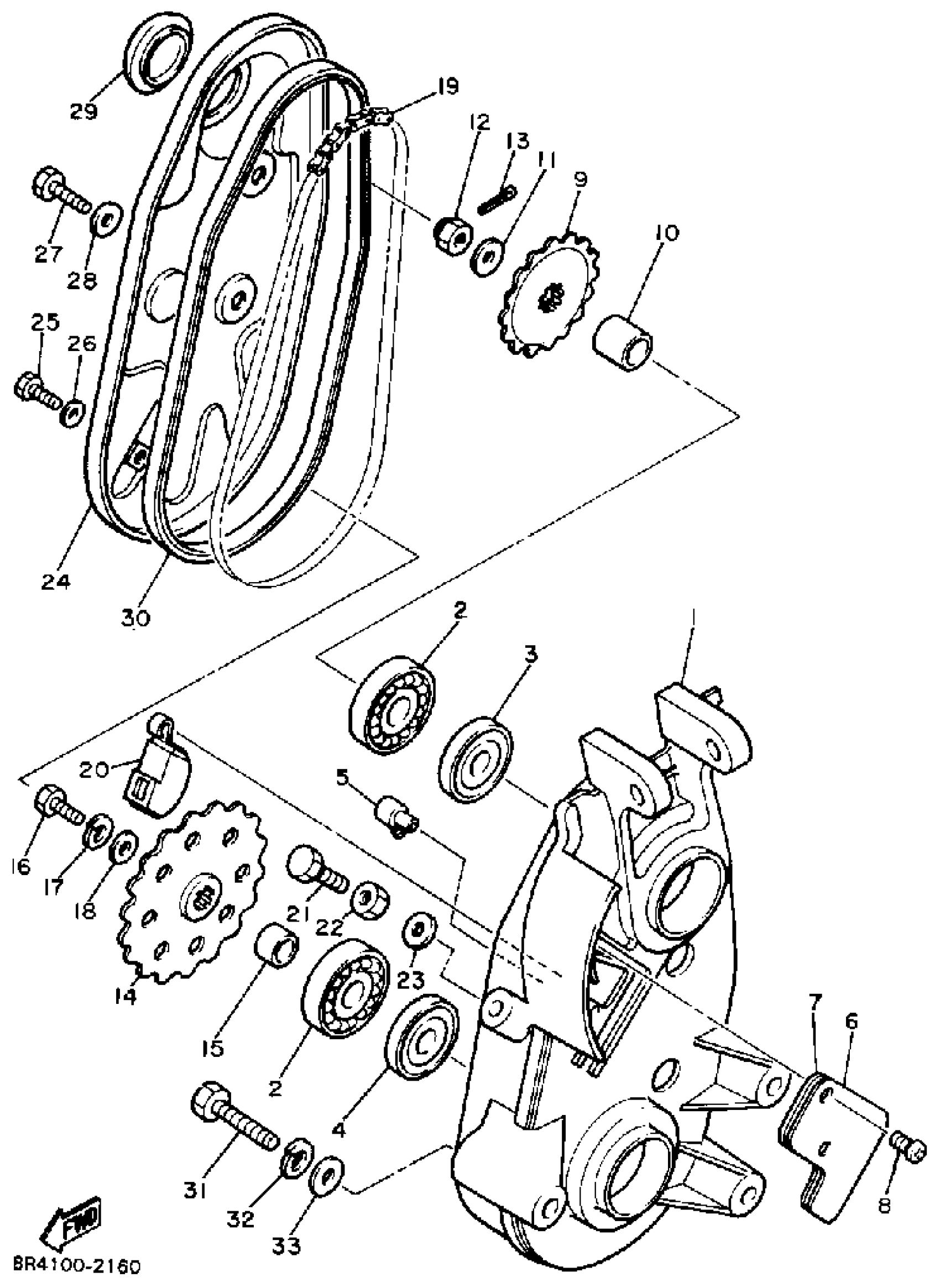

Find the part on the Track Drive 2 diagram for your 1985 Yamaha Bravo (BR250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Bravo (BR250J) Track Drive 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

8R4-47541-00-00

—
Out of stock

2

BRG,R-B 6304 52MM 144G NT

93306-30407-00

—
Out of stock

3

OIL SEAL (25X44X6-810)

93102-25081-00

1
Out of stock

4

OIL SEAL(4BA)

93102-20447-00

1
Out of stock

5

BREATHER

583-15371-00-00

1
Out of stock

6

PLATE

8R4-47591-00-00

1
Out of stock

7

GASKET

86A-47592-00-00

1
Out of stock

8

SCREW, BIND

98903-05016-00

1
Out of stock

9

SPROCKET, CHAIN DRIVE (11T)

812-17682-10-00

1
Out of stock

9

SPROCKET, CHAIN DRIVE(12T)

812-17682-20-00

1
Out of stock

9

SPROCKET,CHAIN DRIVE(13T)

812-17682-30-00

—
Out of stock

9

SPROCKET, CHAIN DRIVE (14T)

812-17682-40-00

1
Out of stock

10

COLLAR (8R4)

90387-197E9-00

1
Out of stock

11

UNAVAILABLE IN PRICE BOOK (90201-12677)

90201-126H1-00

1
Out of stock

12

NUT(3DM)

95304-12600-00

1
Out of stock

13

PIN, COTTER(6L5)

91490-25030-00

—
Out of stock

14

SPROCKET, CHAIN DRIVEN

8BC-47548-10-00

1
Out of stock

14

SPROCKET, CHAIN DRIVEN

8BC-47548-20-00

—
Out of stock

14

SPROCKET, CHAIN DRIVEN (23T)

8F3-47548-30-00

1
Out of stock

14

SPROCKET, CHAIN DRIVEN

8BC-47548-40-00

—
Out of stock

15

COLLAR

90387-200F1-00

1
Out of stock

16

BOLT (682)

97013-08025-00

—
Out of stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

18

WASHER, PLATE (4W3)

90201-086A3-00

—
Out of stock

19

CHAIN, DRIVE (8R4)

94580-01044-00

—
Out of stock

20

TENSIONER

8F3-47611-02-00

—
Out of stock

21

BOLT, HEXAGON (8F3)

90101-10357-00

—
Out of stock

22

NUT (682)

95380-10700-00

1
Out of stock

23

WASHER SEAL 256111730200

90210-10004-00

—
Out of stock

24

CAP, HOUSING

8R4-47543-00-00

1
Out of stock

25

BOLT(3JP)

97017-06010-00

—
Out of stock

26

WASHER, SEAL (7G5)

90210-06006-00

—
Out of stock

27

BOLT, HEXAGON

97013-08020-00

—
Out of stock

28

WASHER (821)

90210-08002-00

—
Out of stock

29

CAP

148-22315-00-00

—
Out of stock

30

RING, HOUSING

8R4-47558-01-00

—
Out of stock

31

BOLT

97021-08065-00

1
Out of stock

32

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

33

.. WASHER, PLATE

92990-08600-00

1
Out of stock

33

.. WASHER, PLATE

92990-08600-00

1
Out of stock
