SHROUD - WINDSHIELD BR250J

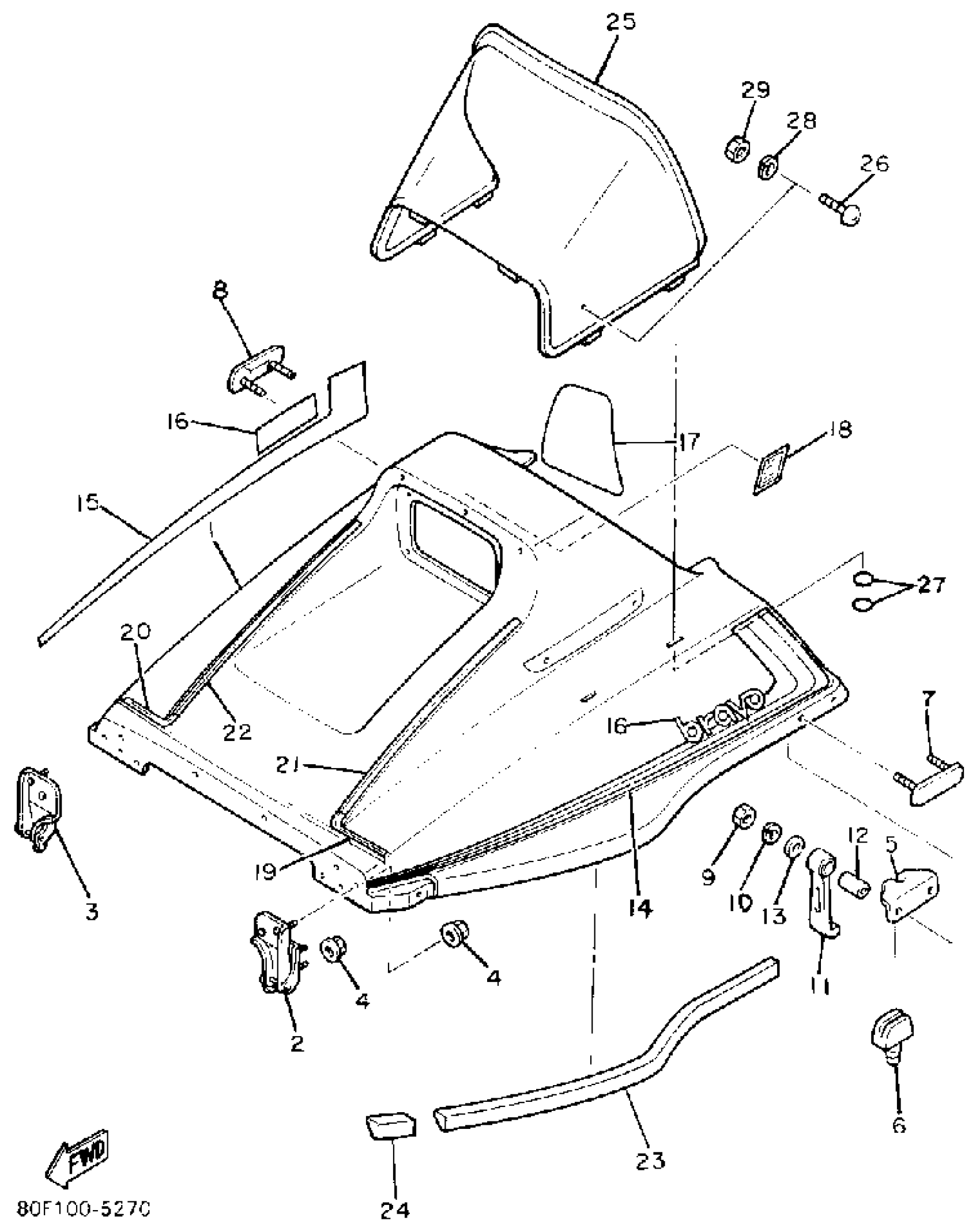

Yamaha BR250J (BRAVO) 1985 SHROUD - WINDSHIELD BR250J Diagram
#
1
SHROUD
80F-77111-00-00
Unavailable
2
HINGE ASSY
8R4-77140-00-00
Unavailable
3
HINGE ASSY 2
8R4-7714A-00-00
Unavailable
4
NUT, FLANGE(7NB)
95780-06500-00
$2.60
5
CLAMP 2
8R4-77136-00-00
$7.49
6
STOPPER
8R4-77188-00-00
$18.99
7
PLATE 1
80F-77185-00-00
Unavailable
8
PLATE 2
80F-77186-00-00
Unavailable
9
NUT, HEXAGON
95380-06600-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
11
BODY, LATCH 1
8R4-77171-00-00
$26.99
12
COLLAR 849833160000
90387-06027-00
$8.49
13
WASHER, PLATE
90201-06380-00
$0.60
14
ORNAMENT 1
80F-77163-00-00
Unavailable
15
ORNAMENT 2
80F-77164-00-00
Unavailable
16
EMBLEM 1
80F-77141-00-00
Unavailable
17
LABEL, WARNING
80F-77458-00-00
Unavailable
18
INDICATOR 3
(8R4-77743-00-00)
Unavailable
19
STRIPE 1
80F-77281-00-00
Unavailable
20
STRIPE 2
80F-77282-00-00
Unavailable
21
STRIPE 3
80F-77283-00-00
Unavailable
22
STRIPE 4
80F-77284-00-00
Unavailable
23
PATCH 5
8X8-21965-00-00
Unavailable
24
PATCH 6
80F-21966-00-00
Unavailable
25
WINDSHIELD,BR250
8V7-77210-10-XX
Unavailable
26
SCREW, TAPPING (8R4)
90164-05007-00
Unavailable
27
FASTNER
82H-77223-00-00
Unavailable
28
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
29
NUT, HEXAGON (663)
95380-05600-00
Unavailable
