PRIMARY SHEAVE

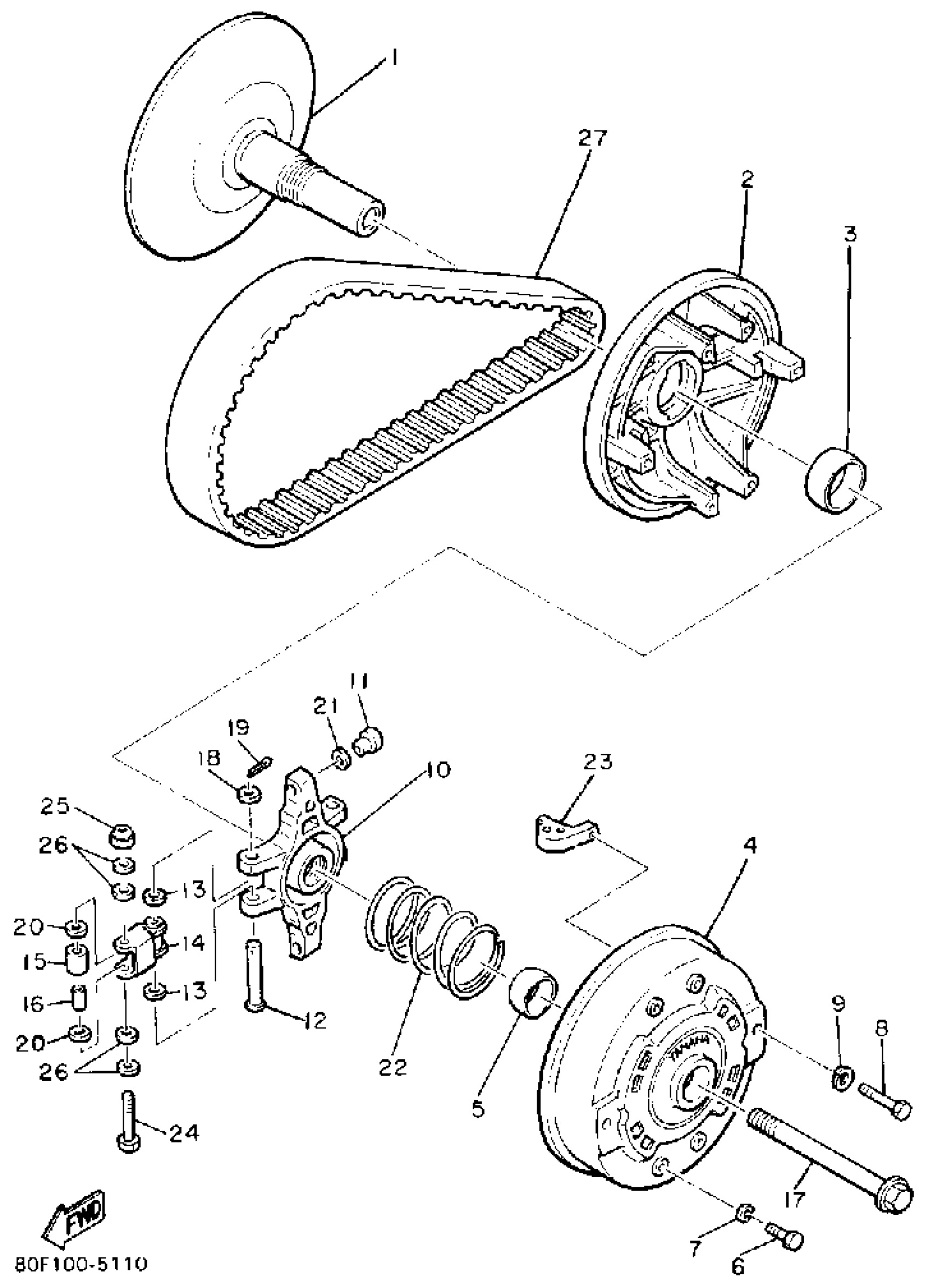

Yamaha BR250J (BRAVO) 1985 PRIMARY SHEAVE Diagram
#
1
PRI FIXED SHEAVE
8R4-17610-00-00
Unavailable
2
SHEAVE, PRI SLIDING
8H9-17621-01-00
Unavailable
3
BUSH, SPEC''L SHAPE
90389-39025-00
Unavailable
4
CAP
8H9-17631-00-00
Unavailable
5
BUSH, SPEC''L SHAPE
90389-26024-00
Unavailable
6
BOLT, HEXAGON
97017-06025-00
$4.24
7
WASHER, SPRING
92995-06100-00
Unavailable
8
BOLT (682)
97095-06040-00
$1.86
9
WASHER, SPRING
92995-06100-00
Unavailable
10
SPIDER
8H9-17627-00-00
Unavailable
11
SLIDER
8F2-17653-00-00
$13.49
12
PIN, CLEVIS
90240-07112-00
Unavailable
13
WASHER, PLATE
90201-06104-00
$5.60
14
CLUTCH TUNE-UP KIT
(8H9-00000-50-00)
Unavailable
14
WEIGHT
8H9-17632-01-00
Unavailable
14
PRIMARY SHEAVE ASSEMBLY
(8R4-17601-09-00)
Unavailable
15
COLLAR (8H9)
90387-09698-00
Unavailable
16
COLLAR (8H9)
90387-06697-00
Unavailable
17
BOLT
8H9-17647-00-00
Unavailable
18
WASHER, PLATE
90201-06M08-00
Unavailable
19
PIN, COTTER
91490-25020-00
Unavailable
20
WASHER, PLATE
90201-09728-00
Unavailable
21
WASHER, PLATE (8K2)
90201-090A4-00
Unavailable
22
SPRING, COMPRESSION
90501-50654-00
Unavailable
22
SPRING, COMPRESSION
90501-55691-00
Unavailable
23
CAM
8J2-17623-00-00
Unavailable
24
BOLT (90101-06663)
90101-06663-00
Unavailable
25
NUT, SELF-LOCKING
95617-06100-00
Unavailable
26
WASHER, PLATE (8H9)
90201-06727-00
Unavailable
27
V-BELT
820-17641-01-00
Unavailable
27
CLUTCH TUNE-UP KIT
(8H9-00000-50-00)
Unavailable
27
PRIMARY SHEAVE ASSEMBLY
(8R4-17601-09-00)
Unavailable
