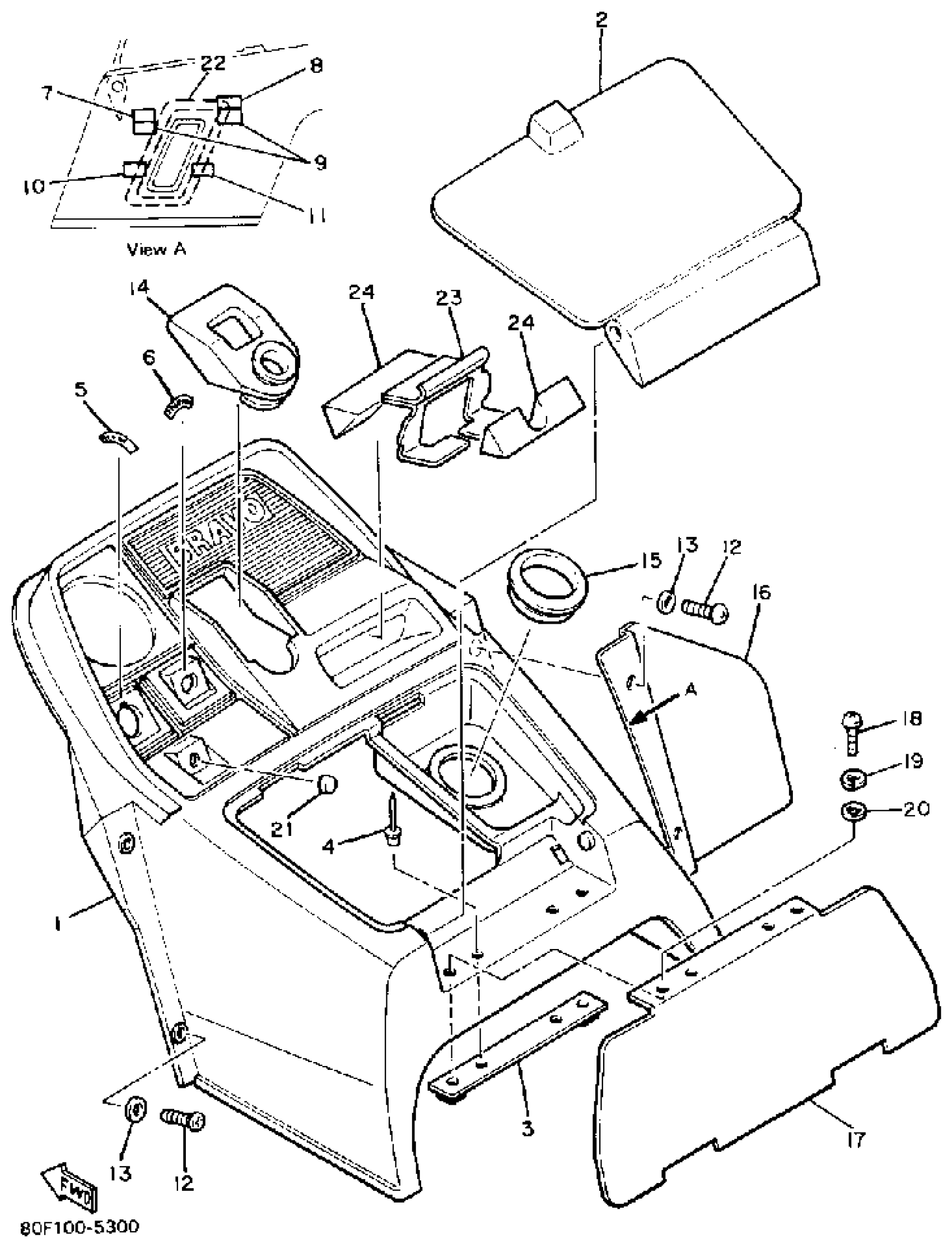

Yamaha BR250J (BRAVO) 1985 INSTRUMENT PANEL BR250J Diagram

#

Description

Price

1

PANEL, INSTRUMENT

80F-77711-01-00

Unavailable

2

PANEL, INSTRUMENT

8R4-77712-00-00

Unavailable

3

BRACKET 2

80F-77722-00-00

Unavailable

4

RIVET, BLIND

90267-48117-00

Unavailable

5

INDICATOR 1

8K2-77741-01-00

Unavailable

6

INDICATOR 2

8K4-77742-00-00

Unavailable

7

INDICATOR 2

8G8-77742-00-00

Unavailable

8

INDICATOR 3

8A1-77743-00-00

Unavailable

9

INDICATOR 4

878-77744-00-00

Unavailable

10

INDICATOR 5

878-77745-00-00

Unavailable

11

INDICATOR 4

8A1-77744-00-00

Unavailable

12

SCREW, PAN HEAD

90157-05M19-00

Unavailable

13

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

14

GROMMET, INSTRUMENT PANEL

8R4-77740-00-00

Unavailable

15

GROMMET (8R4)

90480-53313-00

Unavailable

16

BRACKET 1

8U0-77721-00-00

Unavailable

17

SHIELD 1

80F-77731-00-00

Unavailable

18

SCREW, PAN

98517-06012-00

Unavailable

19

WASHER, SPRING

92907-06100-00

Unavailable

20

WASHER(6TA)

92907-06600-00

Unavailable

21

GROMMET 122154860000

90480-12012-00

Unavailable

22

PATCH 1

80F-2171F-00-00

Unavailable

23

BRACKET 1

80F-23881-00-00

Unavailable

24

SPACER

80F-23858-00-00

Unavailable
