FUEL TANK

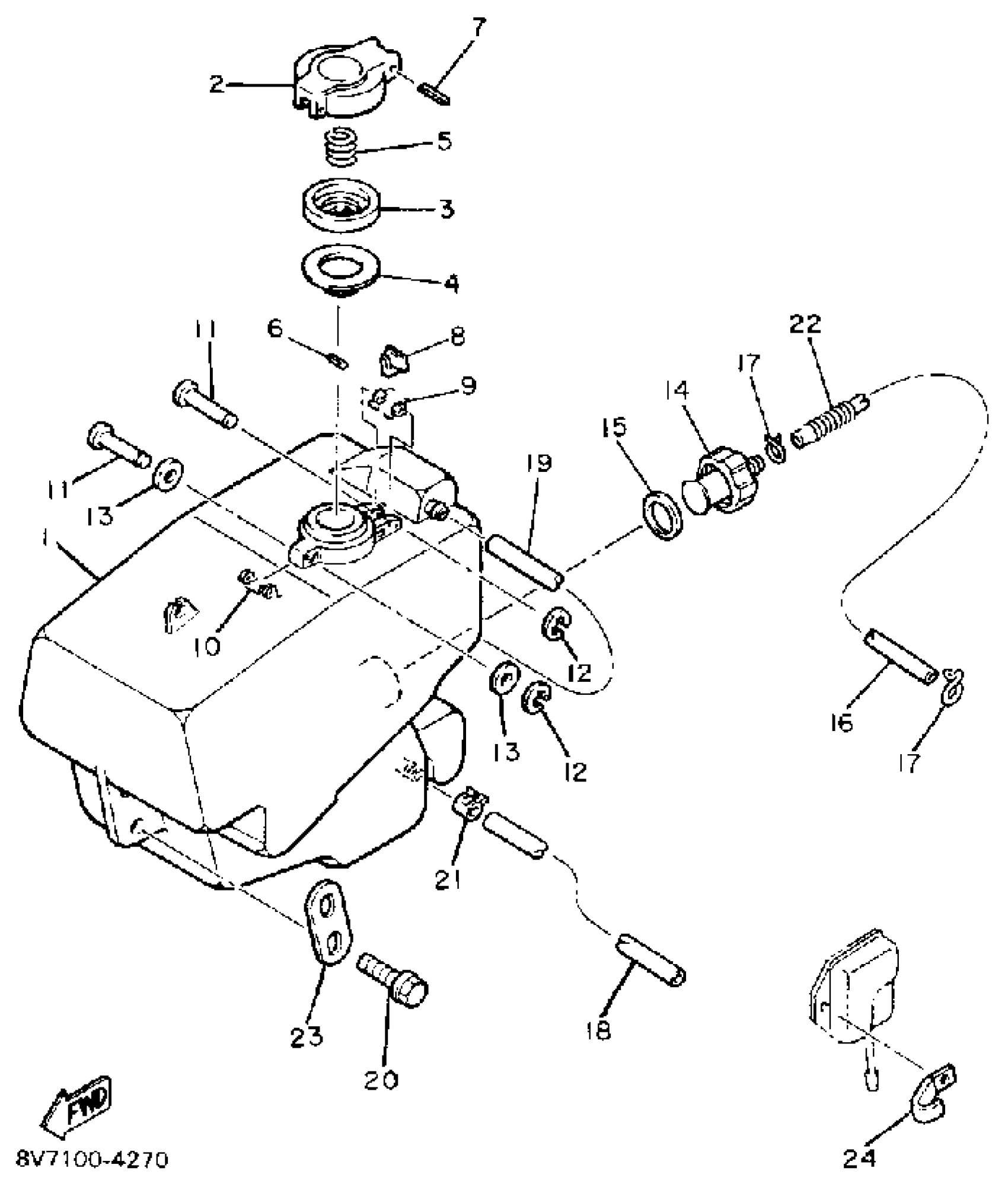

Yamaha BR250J (BRAVO) 1985 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK
99999-02628-00
Unavailable
2
BODY, CAP
8A5-24611-00-00
Unavailable
3
DISK,CAP
813-24613-01-00
$20.99
4
GASKET, CAP 1
89A-24641-00-00
$10.99
5
SPRING, CAP
90501-20130-00
$8.49
6
PIN, SPRING
91690-30016-00
Unavailable
7
PIN, SPRING
91609-25032-00
$2.49
8
HOOK
83M-24628-00-00
$24.99
9
SPRING, TORSION(81E)
90508-10715-00
Unavailable
10
SPRING, TORSIOW (8F3)
90508-08353-00
Unavailable
11
PIN (813)
90249-03017-00
$7.49
11
PIN (813)
90249-03017-00
$7.49
12
CIRCLIP (604)
93430-02001-00
$8.49
13
WASHER, PLATE 8077743700
90201-03313-00
$9.49
14
FILTER ASSEMBLY
8R4-24560-00-00
Unavailable
15
PACKING, FILTER
8F3-24564-00-00
Unavailable
16
TUBE, FLEXIBLE VINYL(86X)
91A20-07100-00
Unavailable
17
CLIP (8J7)
90467-11009-00
Unavailable
18
TUBE, FLEXIBLE VINYL(8AT)
91A20-05145-00
Unavailable
18
HOSE
90446-09216-00
Unavailable
19
TUBE, FLEXIBLE VINYL(8AT)
91A20-05145-00
Unavailable
20
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
21
CLIP (8A1)
90467-09026-00
Unavailable
22
PROTECTOR, PIPE
8F3-24327-00-00
Unavailable
23
WASHER, SPECIAL
8R4-24186-00-00
Unavailable
24
CLAMP (706)
90465-06100-00
Unavailable
