Description

Price

1

CDI UNIT ASSEMBLY

80F-85540-M0-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

4

BOLT, FLANGE

95817-06012-00

$1.43

5

IGNITION COIL ASSEMBLY

8X8-82310-20-00

Unavailable

6

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

7

SCREW PAN HEAD

98580-06040-00

$8.49

8

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

CLAMP(4MX)

90465-06376-00

$9.49

11

PLUG CAP ASSY

85G-82370-20-00

$34.99

12

SEAL

8G5-82372-00-00

$5.60

13

MAIN SWITCH ASSY

8R4-82510-20-00

$117.99

14

WIRE HARNESS ASSEMBLY

80J-82590-20-00

Unavailable

15

GROMMET (2N3)

90480-16233-00

Unavailable

16

HOSE

90446-07182-00

Unavailable

17

CLAMP

90465-08028-00

Unavailable

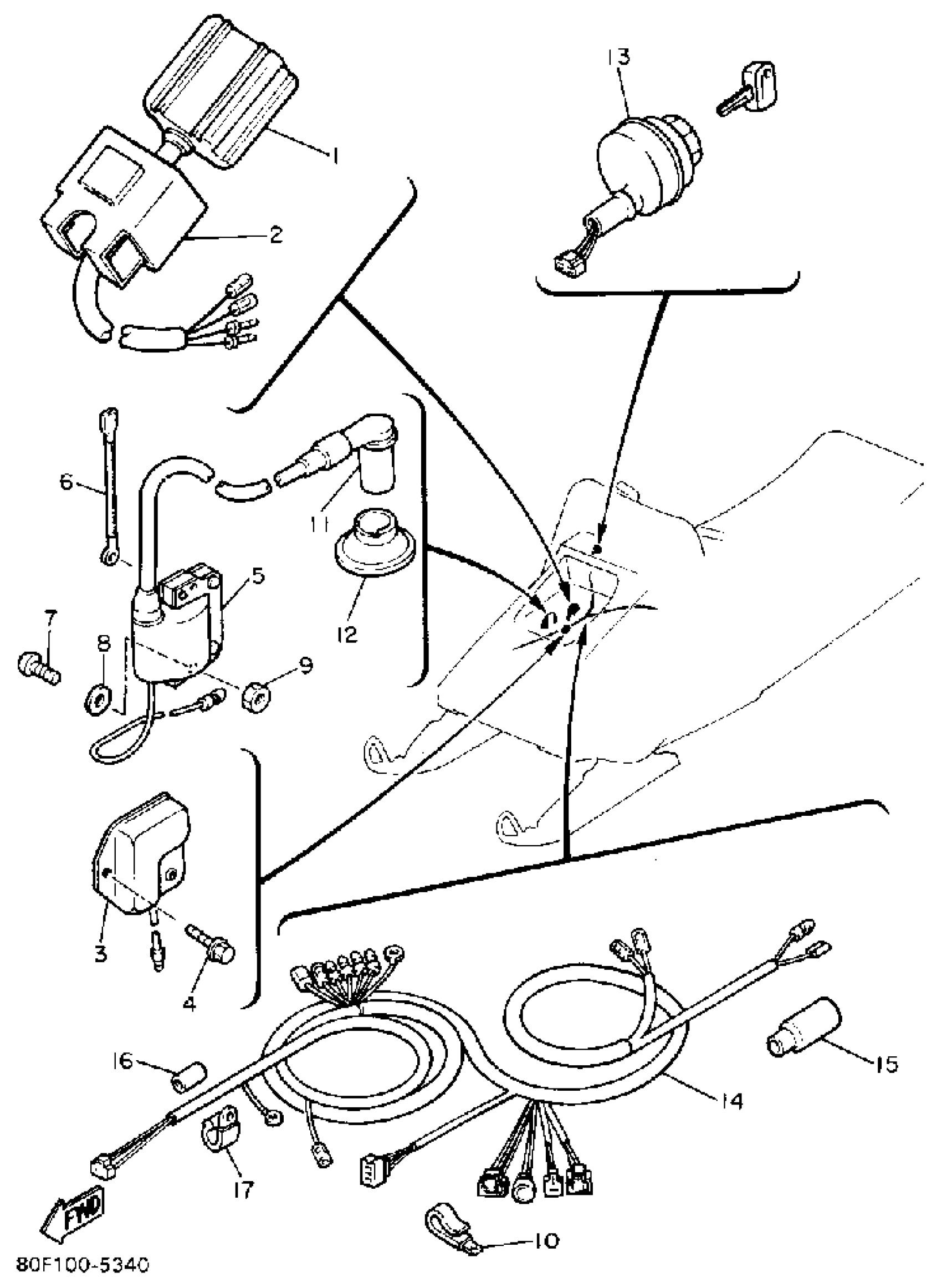

Yamaha BR250J (BRAVO) 1985 ELECTRICAL 1 Diagram

CDI UNIT ASSEMBLY

BAND

VOLTAGE REGULATOR ASSY

BOLT, FLANGE

IGNITION COIL ASSEMBLY

WIRE, SUB-LEAD

SCREW PAN HEAD

WASHER, PLATE (4H7)

WASHER, PLAIN (646)

NUT, HEXAGON

CLAMP(4MX)

PLUG CAP ASSY

SEAL

MAIN SWITCH ASSY

WIRE HARNESS ASSEMBLY

GROMMET (2N3)

HOSE

CLAMP
