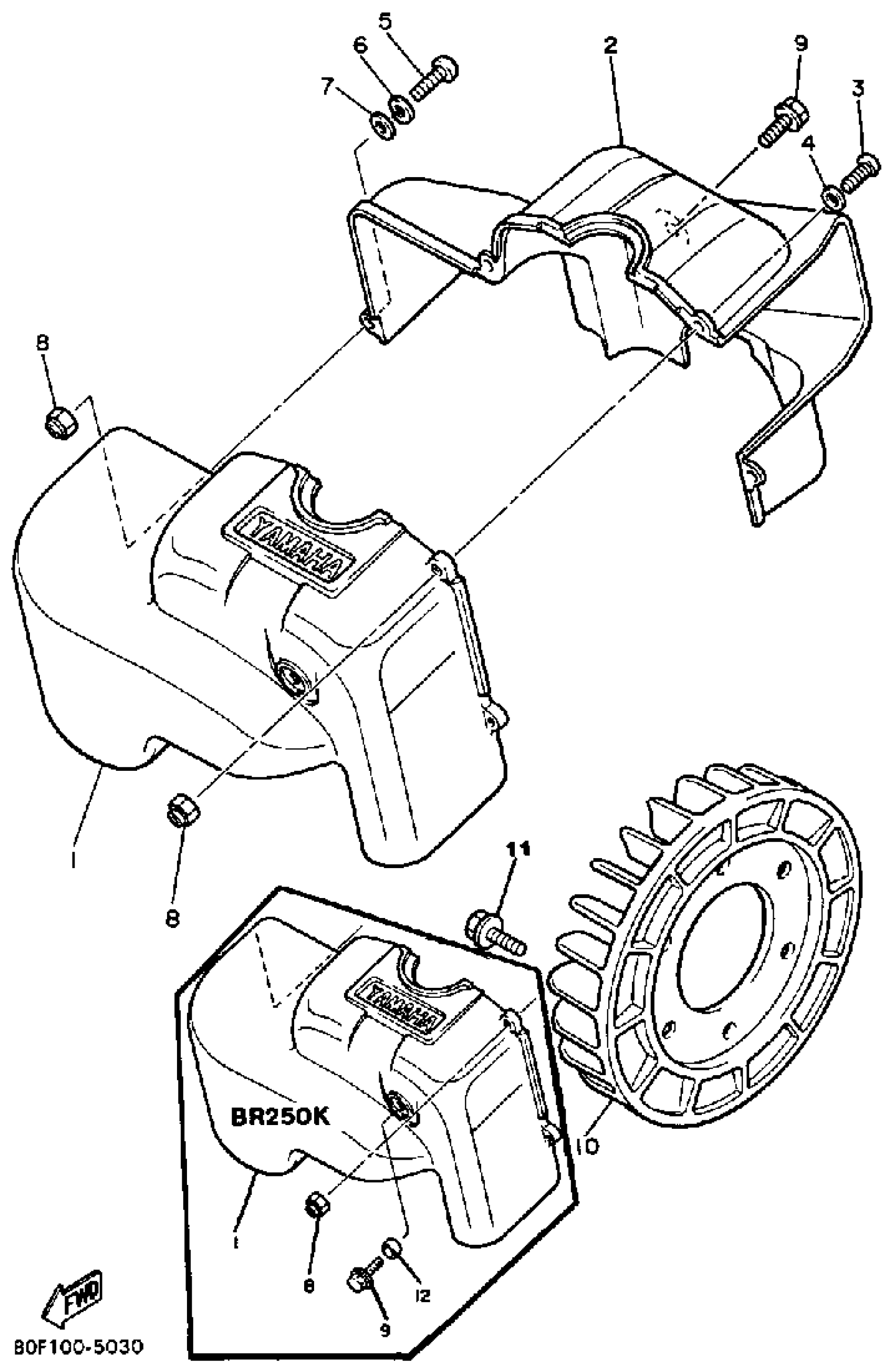

Yamaha BR250J (BRAVO) 1985 AIR SHROUD - FAN Diagram

AIRSHROUD, CYLINDER 1

99999-01693-00

Unavailable

AIR SHROUD, CYLINDER 2

8R4-12652-02-00

Unavailable

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

WASHER, PLAIN (646)

92990-05600-00

$0.80

SCREW, PAN HEAD

98517-05030-00

$10.49

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

WASHER, PLAIN (646)

92990-05600-00

$0.80

NUT, NYLON

95707-05300-00

$4.24

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

FAN

8G8-12611-01-00

Unavailable

BOLT, FLANGE

95817-06012-00

$1.43

COLLAR

90387-06704-00

Unavailable
