- BR250J (BRAVO) 1985
AIR CLEANER BR250J

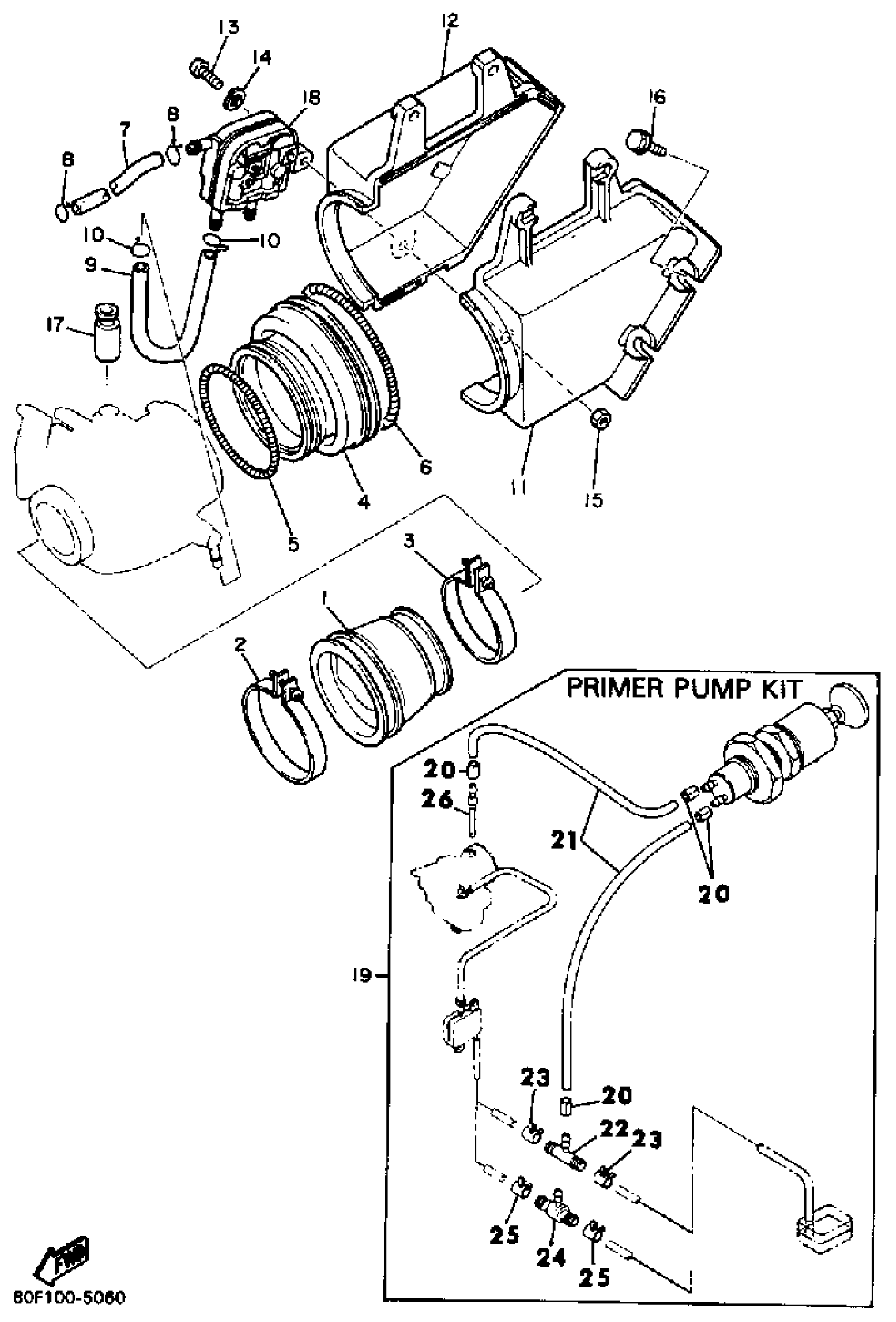

Yamaha BR250J (BRAVO) 1985 AIR CLEANER BR250J Diagram
#
Description
Price
1
MANIFOLD, INTAKE
8R4-13555-00-00
Unavailable
2
HOSE CLAMP ASSY
90450-64004-00
$14.99
3
CLAMP HOSE 304144550000
90460-51059-00
$16.99
4
JOINT, AIR CLEANER 1
8R4-14453-00-00
$37.99
5
SPRING, TENSION (8R4)
90506-06261-00
$9.49
6
SPRING, TENSION (8R4)
90506-06262-00
$7.49
7
HOSE (L450)
90445-10144-00
$7.49
8
CLIP
90467-090A2-00
$4.41
9
HOSE
90446-11326-00
Unavailable
10
CLIP (8J7)
90467-11009-00
$10.49
11
SILENCER, INTAKE 1
8R4-14431-00-00
Unavailable
12
SILENCER 2
8R4-14441-01-00
Unavailable
13
SCREW, PAN HEAD
98517-05030-00
$10.49
14
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
15
NUT, HEXAGON SMALL
95317-05700-00
$8.49
16
BOLT, WITH WASHER
90119-05071-00
Unavailable
17
BOOT
8J5-26352-00-00
Unavailable
18
FUEL PUMP ASSY
8R4-24410-01-00
Unavailable
19
PRIMER PUMP KIT
8U0-W2431-00-00
Unavailable
20
CLIP (2A6)
90468-02025-00
Unavailable
21
TUBE, FLEXIBLE VINYL(8AE)
91A20-03130-00
Unavailable
22
PIPE, JOINT
815-24379-00-00
Unavailable
23
CLIP
90467-11028-00
Unavailable
24
WAY 3 (8U0)
90413-05011-00
Unavailable
25
CLIP (8A1)
90467-09026-00
Unavailable
26
. NOZZLE
8U0-13552-00-00
Unavailable
