Description

Price

1

SHROUD

8V7-77111-10-00

Unavailable

2

HINGE ASSY

8R4-77140-00-00

Unavailable

3

HINGE ASSY 2

8R4-7714A-00-00

Unavailable

4

NUT, FLANGE(7NB)

95780-06500-00

$2.60

5

CLAMP 2

8R4-77136-00-00

$7.49

6

STOPPER

8R4-77188-00-00

$18.99

7

PLATE 1

(8V7-77185-00-00)

Unavailable

8

PLATE 2

(8V7-77186-00-00)

Unavailable

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

BODY, LATCH 1

8R4-77171-00-00

$26.99

12

COLLAR 849833160000

90387-06027-00

$8.49

13

WASHER, PLATE

90201-06380-00

$0.60

14

ORNAMENT 1

(8V7-77163-00-00)

Unavailable

15

ORNAMENT 2

(8V7-77164-00-00)

Unavailable

16

EMBLEM 1

8V7-77141-00-00

Unavailable

17

LABEL, WARNING

8R4-77458-00-00

Unavailable

18

INDICATOR 3

(8R4-77743-00-00)

Unavailable

19

WINDSHIELD,BR250

8V7-77210-10-XX

Unavailable

20

STRIPE 1

8V7-77281-00-00

Unavailable

21

STRIPE 2

8V7-77282-00-00

Unavailable

22

STRIPE 3

8V7-77283-00-00

Unavailable

23

FASTNER

82H-77223-00-00

Unavailable

24

SCREW, TAPPING (8R4)

90164-05007-00

Unavailable

25

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

26

NUT, HEXAGON (663)

95380-05600-00

Unavailable

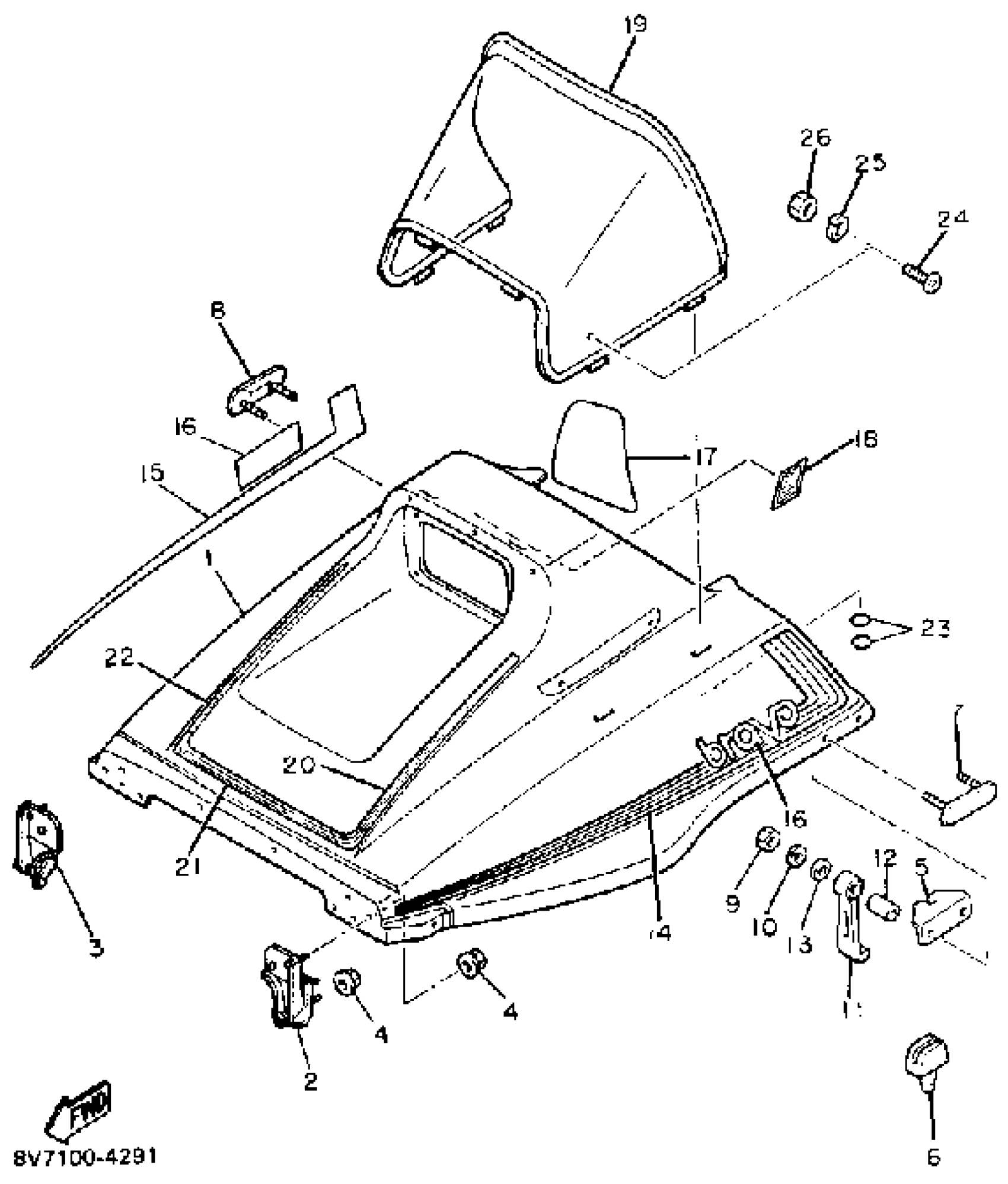

Yamaha BR250H (BRAVO) 1984 SHROUD - WINDSHIELD Diagram

SHROUD

HINGE ASSY

HINGE ASSY 2

NUT, FLANGE(7NB)

CLAMP 2

STOPPER

PLATE 1

PLATE 2

NUT, HEXAGON

WASHER, SPRING

BODY, LATCH 1

COLLAR 849833160000

WASHER, PLATE

ORNAMENT 1

ORNAMENT 2

EMBLEM 1

LABEL, WARNING

INDICATOR 3

WINDSHIELD,BR250

STRIPE 1

STRIPE 2

STRIPE 3

FASTNER

SCREW, TAPPING (8R4)

YBS67-5 WASHER, SPRING

NUT, HEXAGON (663)
