Description

Price

1

SECONDARY FIXED SHEAVE COMP.

8R4-17660-00-00

Unavailable

2

SECONDARY SLIDING SHEAVE

8R4-17670-01-00

Unavailable

3

SHOE, RAMP

8R4-17688-00-00

$10.49

4

SHAFT, SECONDARY

8R4-17681-00-00

Unavailable

5

SEAT, SECONDARY SPRING

8R4-17684-00-00

Unavailable

6

CIRCLIP (8R4)

93440-25100-00

Unavailable

7

SPRING TORSION 806176830000

90508-40080-00

$15.99

8

COLLAR

90387-260F5-00

Unavailable

9

WASHER, PLATE (35T)

90201-122H1-00

$9.49

10

NUT, SELF LOCKING (23X)

90185-12119-00

$11.49

11

KEY, STRAIGHT (8R4)

90282-05047-00

$9.49

12

BEARING

93306-20509-00

Unavailable

13

HOUSING, BEARING

8R4-47631-00-00

Unavailable

14

BOLT, HEXAGON

97013-08016-00

$1.01

15

WASHER(JN5)

92907-08100-00

$8.49

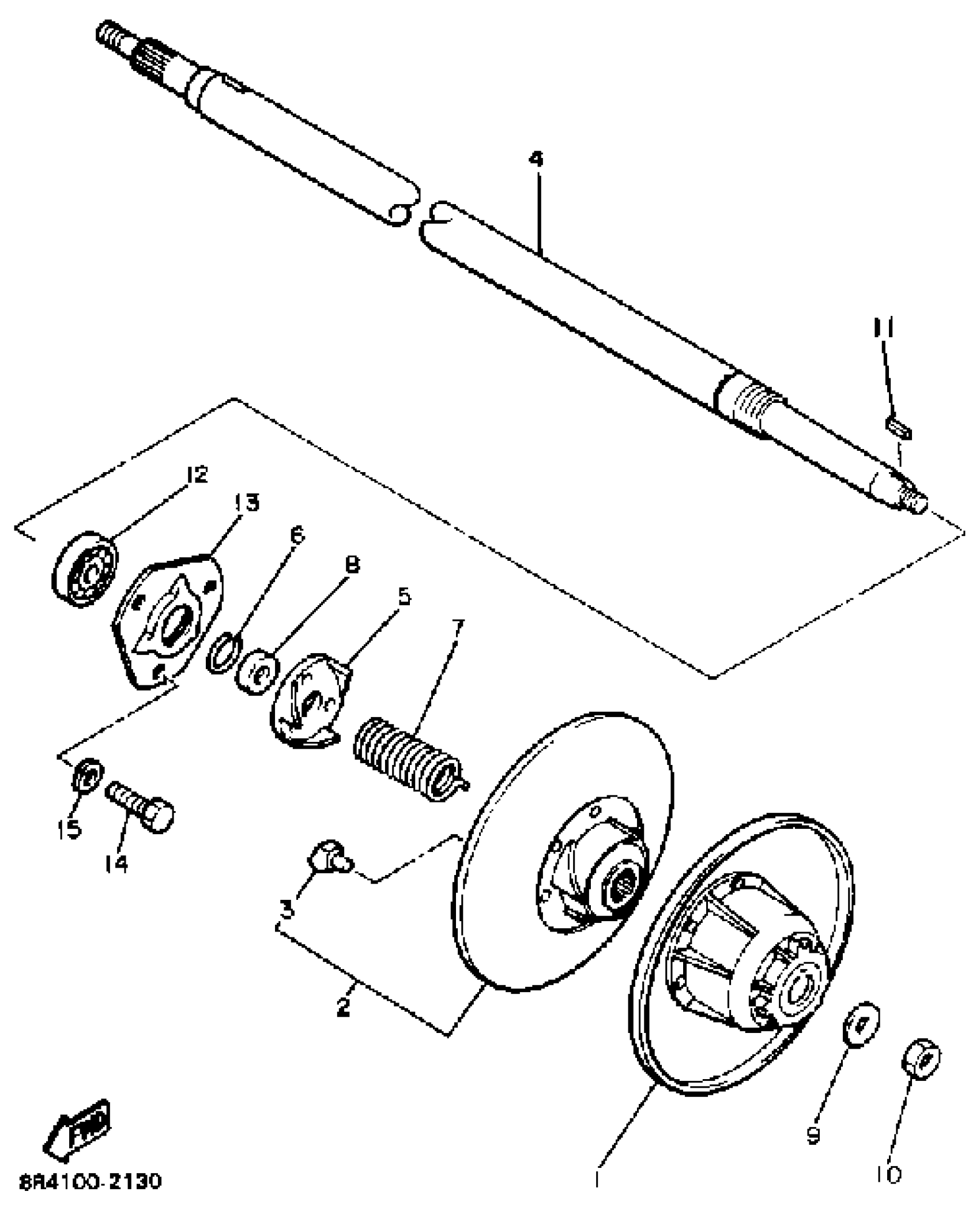

Yamaha BR250H (BRAVO) 1984 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

SECONDARY SLIDING SHEAVE

SHOE, RAMP

SHAFT, SECONDARY

SEAT, SECONDARY SPRING

CIRCLIP (8R4)

SPRING TORSION 806176830000

COLLAR

WASHER, PLATE (35T)

NUT, SELF LOCKING (23X)

KEY, STRAIGHT (8R4)

BEARING

HOUSING, BEARING

BOLT, HEXAGON

WASHER(JN5)
