Description

Price

1

COVER, OIL PUMP

8R4-15416-00-00

Unavailable

2

COVER, OIL PUMP 2

8R4-15426-00-00

Unavailable

3

OIL SEAL (J10)

93101-10090-00

$8.49

4

METAL, WORM SHAFT OUTER

821-13176-00-00

$17.49

5

SHAFT, WORM

8R4-13175-00-00

Unavailable

6

GEAR, DRIVE (59T)

8R4-13188-00-00

Unavailable

7

PLATE, CAM THRUST

137-13148-00-00

Unavailable

8

WASHER, WAVE (137)

90206-11016-00

Unavailable

9

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

10

CIRCLIP(10W)

99009-10400-00

$4.73

11

PIN,DOWEL (137)

93603-22028-00

$3.76

12

OIL SEAL (8R4)

93104-29072-00

$7.49

13

SCREW, PAN

98507-06014-00

$8.49

14

PIN, DOWEL

91810-18022-00

Unavailable

15

BOLT, FLANGE

95817-06030-00

$4.29

16

BOLT, FLANGE

95822-06025-00

Unavailable

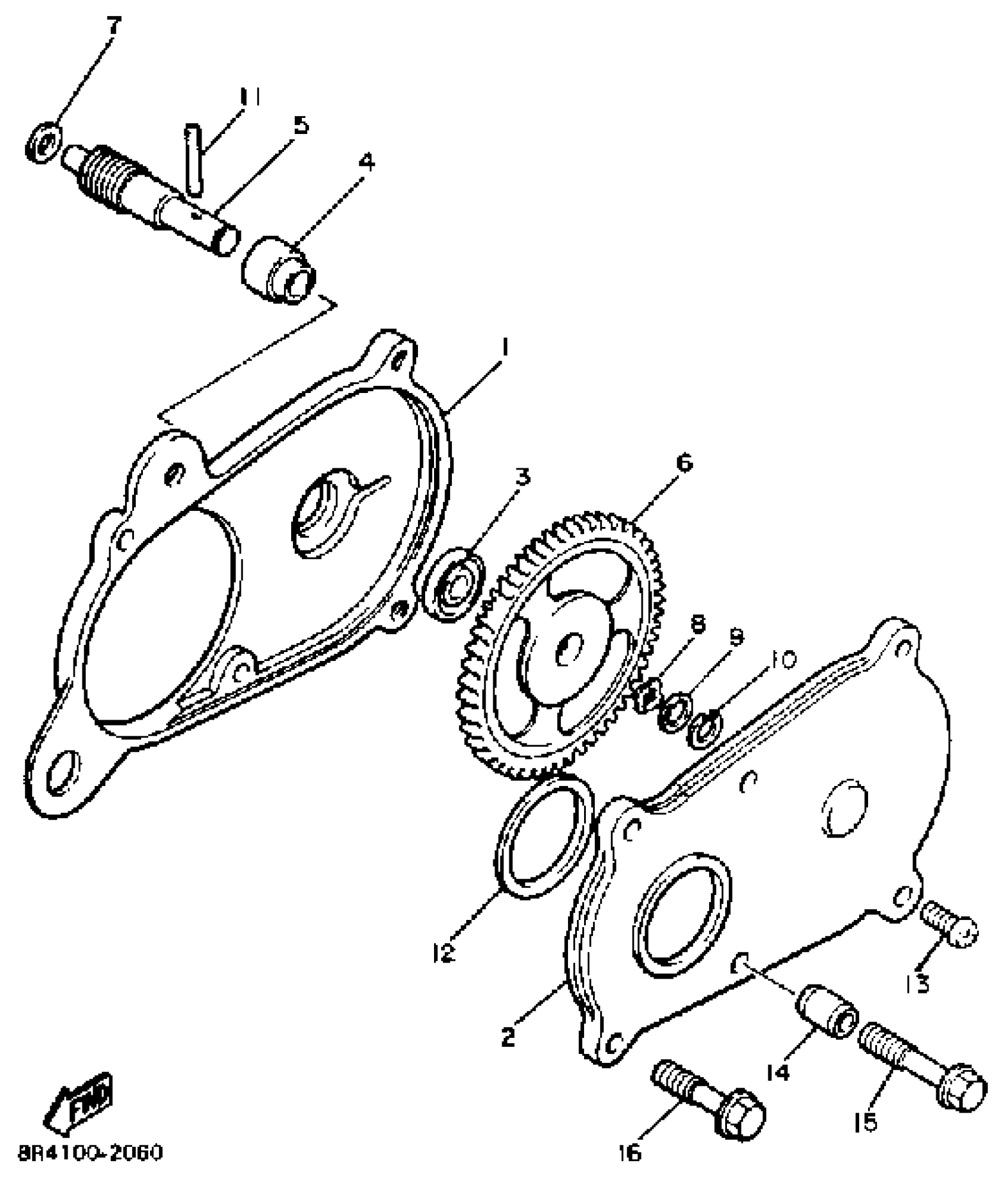

Yamaha BR250H (BRAVO) 1984 PUMP DRIVE - GEAR Diagram

COVER, OIL PUMP

COVER, OIL PUMP 2

OIL SEAL (J10)

METAL, WORM SHAFT OUTER

SHAFT, WORM

GEAR, DRIVE (59T)

PLATE, CAM THRUST

WASHER, WAVE (137)

WASHER, PLATE (1E7)

CIRCLIP(10W)

PIN,DOWEL (137)

OIL SEAL (8R4)

SCREW, PAN

PIN, DOWEL

BOLT, FLANGE

BOLT, FLANGE
