1984 Yamaha Bravo (BR250H) Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1984 Yamaha Bravo (BR250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

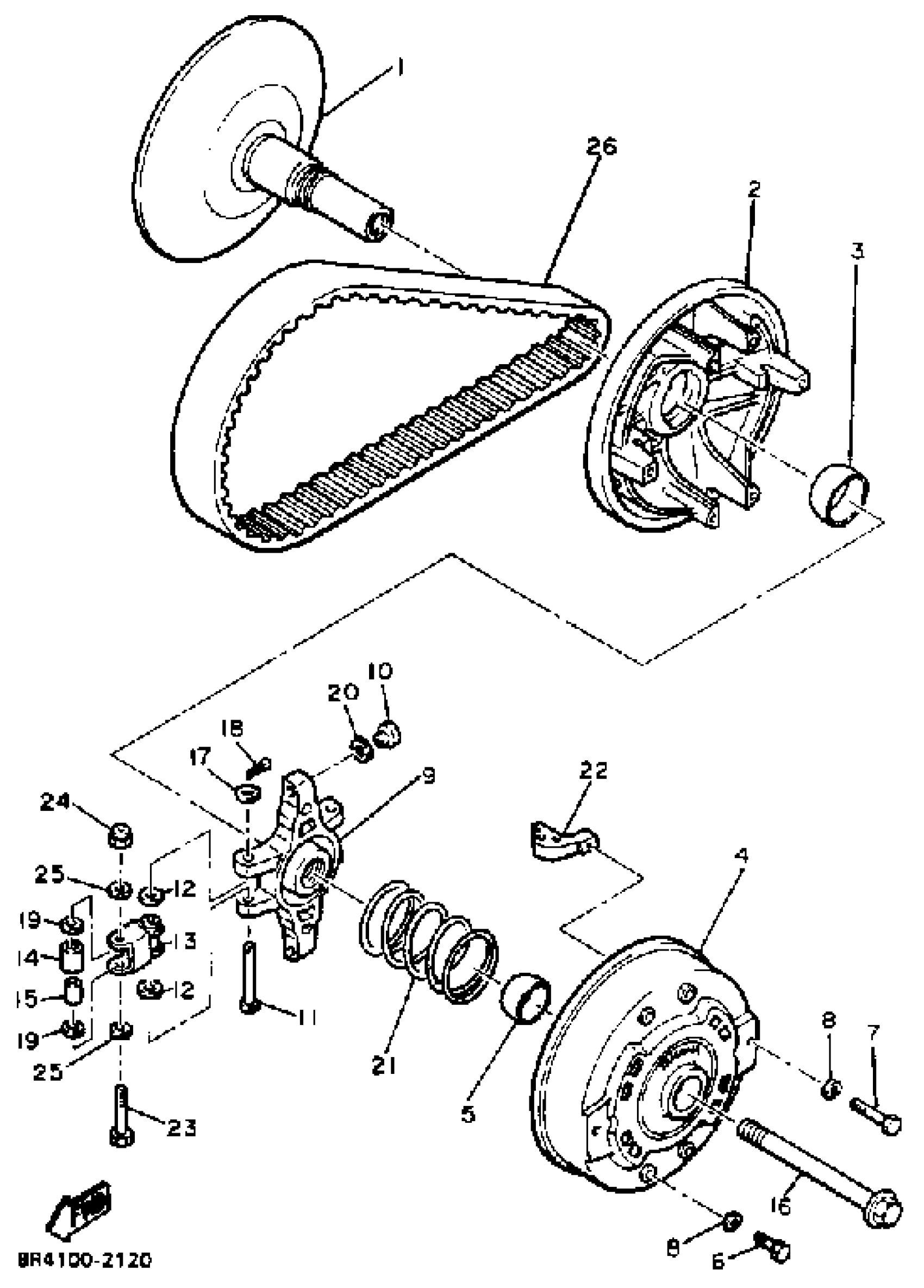

1984 Yamaha Bravo (BR250H) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI FIXED SHEAVE

8R4-17610-00-00

1
Out of stock

2

SHEAVE, PRI SLIDING

8H9-17621-01-00

1
Out of stock

3

BUSH, SPEC''L SHAPE

90389-39025-00

1
Out of stock

4

CAP

8H9-17631-00-00

1
Out of stock

5

BUSH, SPEC''L SHAPE

90389-26024-00

1
Out of stock

6

BOLT, HEXAGON

97017-06025-00

1
Out of stock

7

BOLT (682)

97095-06040-00

1
Out of stock

8

WASHER, SPRING

92995-06100-00

1
Out of stock

9

SPIDER

8H9-17627-00-00

1
Out of stock

10

SLIDER

8F2-17653-00-00

1
Out of stock

11

PIN, CLEVIS

90240-07112-00

1
Out of stock

12

WASHER, PLATE

90201-06104-00

1
Out of stock

13

WEIGHT

8H9-17632-01-00

1
Out of stock

14

COLLAR (8H9)

90387-09698-00

1
Out of stock

15

COLLAR (8H9)

90387-06697-00

1
Out of stock

16

BOLT

8H9-17647-00-00

1
Out of stock

17

WASHER, PLATE

90201-06M08-00

1
Out of stock

18

PIN, COTTER

91490-25020-00

—
Out of stock

19

WASHER, PLATE

90201-09728-00

1
Out of stock

20

WASHER, PLATE (8K2)

90201-090A4-00

—
Out of stock

21

SPRING, COMPRESSION

90501-50654-00

1
Out of stock

21

SPRING, COMPRESSION

90501-55691-00

1
Out of stock

22

CAM

8J2-17623-00-00

1
Out of stock

23

BOLT (90101-06663)

90101-06663-00

1
Out of stock

24

NUT, SELF-LOCKING

95617-06100-00

—
Out of stock

25

WASHER, PLATE (8H9)

90201-06727-00

—
Out of stock

26

V-BELT

820-17641-01-00

1
Out of stock

26

CLUTCH TUNE-UP KIT

(8H9-00000-50-00)

1
Out of stock

26

PRIMARY SHEAVE ASSEMBLY

(8R4-17601-09-00)

1
Out of stock
