1984 Yamaha Bravo (BR250H) Intake Diagram

← All diagrams

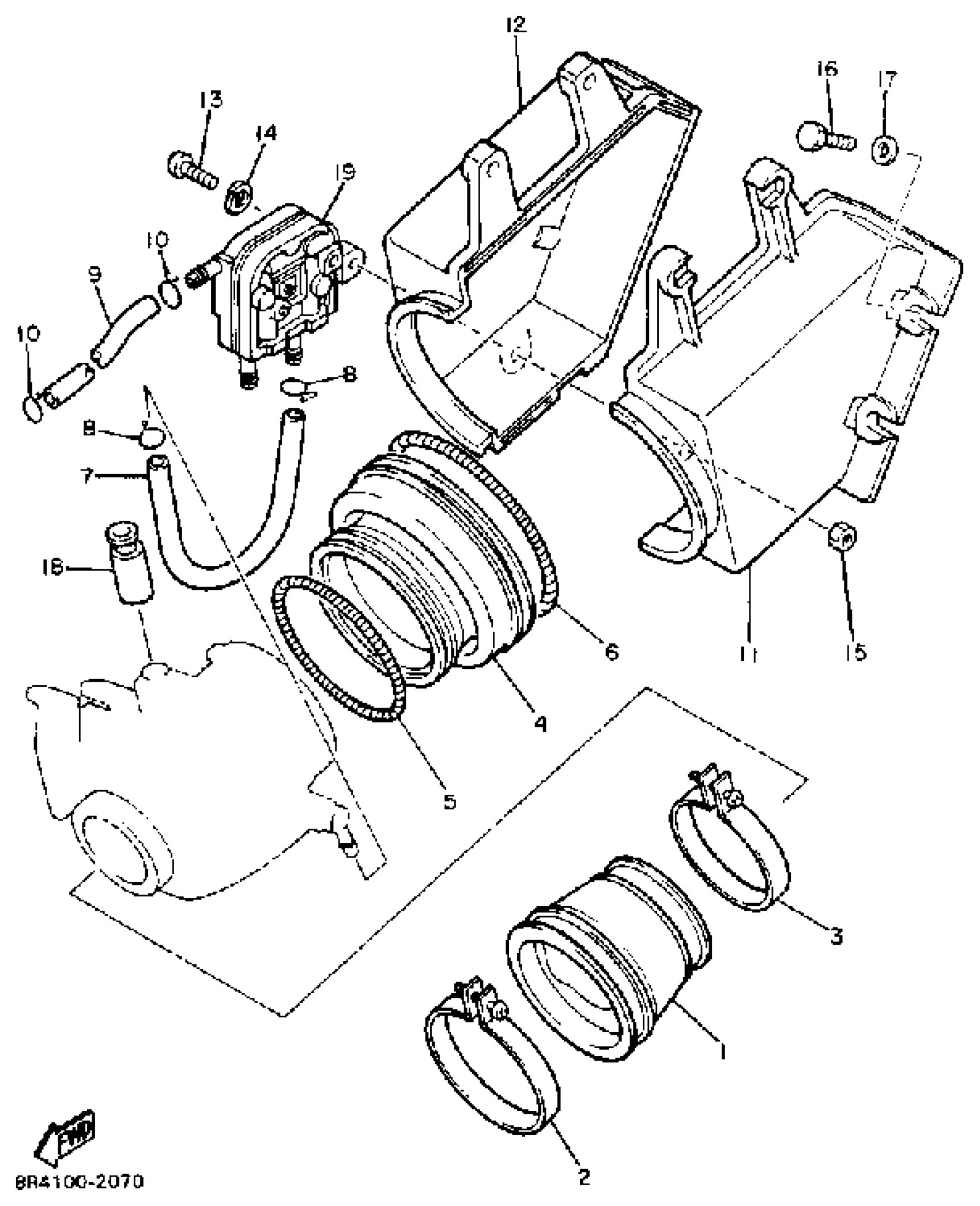

Find the part on the Intake diagram for your 1984 Yamaha Bravo (BR250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha Bravo (BR250H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD, INTAKE

8R4-13555-00-00

—

$43.42

In stock

2

HOSE CLAMP ASSY

90450-64004-00

1

$12.00

In stock

3

CLAMP HOSE 304144550000

90460-51059-00

1

$14.64

In stock

4

JOINT, AIR CLEANER 1

8R4-14453-00-00

1

$32.53

In stock

5

SPRING, TENSION (8R4)

90506-06261-00

1

$6.94

In stock

6

SPRING, TENSION (8R4)

90506-06262-00

1

$5.74

In stock

7

HOSE (L450)

90445-10144-00

1

$4.52

In stock

8

CLIP

90467-090A2-00

1

$2.51

In stock

9

HOSE

90446-11326-00

1
Out of stock

10

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

11

SILENCER, INTAKE 1

8R4-14431-00-00

1
Out of stock

12

SILENCER 2

8R4-14441-01-00

—

$26.23

In stock

13

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

16

BOLT, HEXAGON

97013-05012-00

—

$1.43

In stock

17

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

18

BOOT

8J5-26352-00-00

1
Out of stock

19

FUEL PUMP ASSY

8R4-24410-01-00

—

$153.29

In stock
