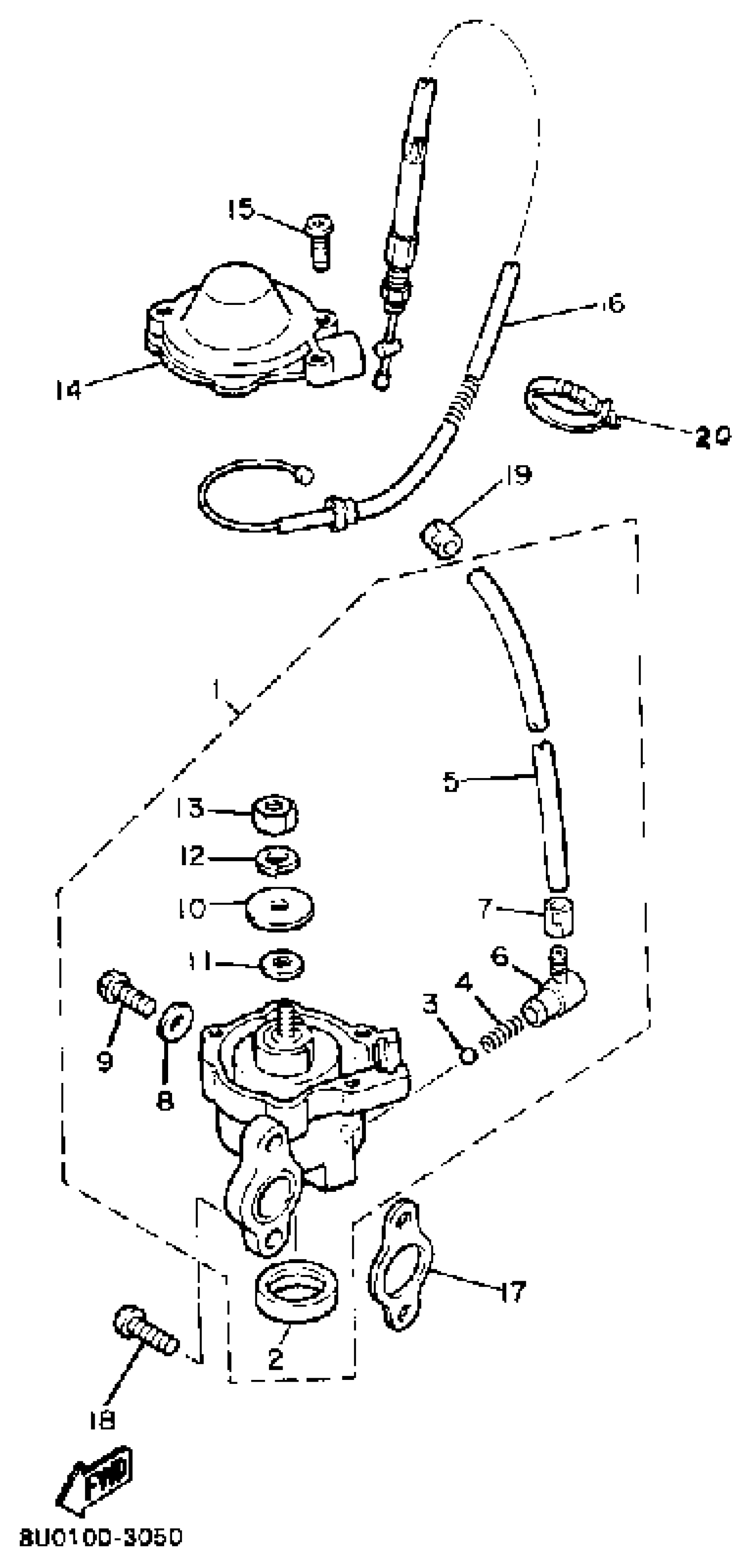

Yamaha BR250H (BRAVO) 1984 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

81E-13101-01-00

Unavailable

2

. PLUG

90338-21100-00

Unavailable

3

BALL

93505-32002-00

$2.92

4

SPRING (278-13169-00)

90501-02018-00

$9.49

5

HOSE (L200)

90445-05N13-00

$8.49

6

NOZZLE

353-13552-01-00

$9.99

7

CLIP (214-13164-00)

90468-02033-00

$8.49

8

GASKET 137131870000

90430-04004-00

$9.49

9

SCREW, BIND

98980-04008-00

Unavailable

10

PLATE, ADJUSTING

137-13138-01-00

Unavailable

11

SHIM,PLUNGER

137-13137-00-03

$5.49

11

SHIM,PLUNGER

137-13137-00-05

$6.99

11

SHIM,PLUNGER

137-13137-00-10

$7.99

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

NUT, HEXAGON (663)

95380-05600-00

$8.49

14

COVER, AJST PULLEY

(8R4-13146-00-00)

Unavailable

15

SCREW, PAN HEAD

98507-04018-00

Unavailable

16

PUMP CABLE ASSEMBLY

8R4-26320-01-00

Unavailable

17

GASKET, PUMP CASE

126-13116-01-00

Unavailable

18

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

19

CLIP (2A6)

90468-02025-00

Unavailable

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable
