Description

Price

1

FRAME

8R4-21910-00-00

Unavailable

2

. HOOD 1

8R4-21982-00-00

Unavailable

3

. HOOD 2

8R4-21983-00-00

Unavailable

4

RIVET, BLIND

90267-48060-00

$8.49

5

PLUG (8K4)

90338-40099-00

$13.99

6

GROMMET 117217730000

90480-40047-00

$3.02

7

. HOLDER, LATCH

8M6-77175-00-00

Unavailable

8

SCREW, BINDING

98907-06030-00

$8.49

9

COVER 1

8V7-2198F-00-00

Unavailable

10

DAMPER 1

8V7-77198-01-00

$7.49

11

LABEL,WARNING 2

8BE-77762-00-00

Unavailable

12

NUT, FLANGE(7NB)

95780-06500-00

$2.60

13

SHIELD, NOISE 1

8R4-23891-00-00

Unavailable

14

PLUG (8R4)

90338-09127-00

$7.49

15

COVER 2

8V7-2198G-00-00

Unavailable

16

MOLD, FUEL TANK

(8U0-24188-00-00)

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

EMBLEM 4

8U0-77354-00-00

Unavailable

19

EMBLEM 5

8U0-77355-00-00

Unavailable

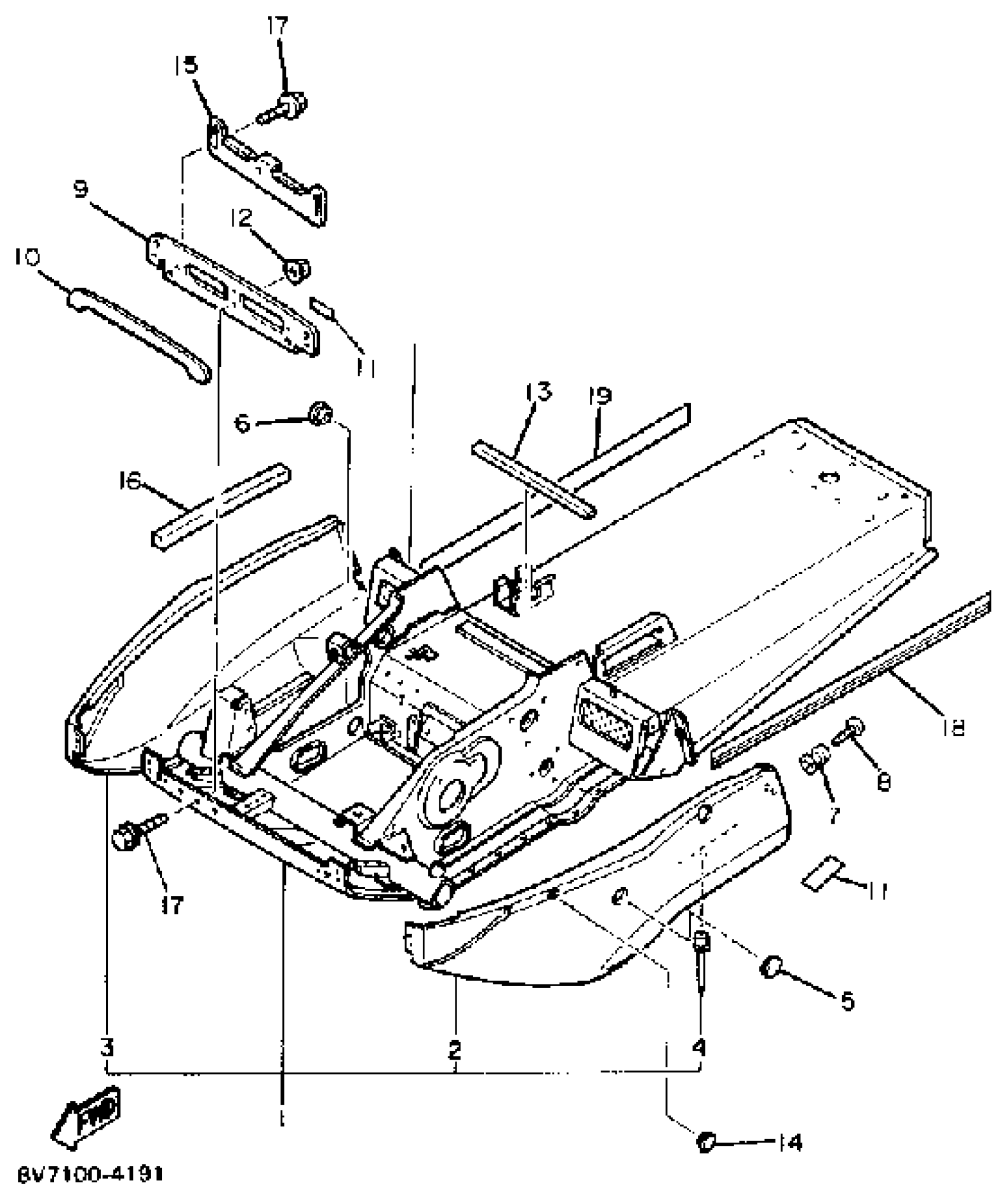

Yamaha BR250H (BRAVO) 1984 FRAME Diagram

FRAME

. HOOD 1

. HOOD 2

RIVET, BLIND

PLUG (8K4)

GROMMET 117217730000

. HOLDER, LATCH

SCREW, BINDING

COVER 1

DAMPER 1

LABEL,WARNING 2

NUT, FLANGE(7NB)

SHIELD, NOISE 1

PLUG (8R4)

COVER 2

MOLD, FUEL TANK

BOLT, FLANGE

EMBLEM 4

EMBLEM 5
