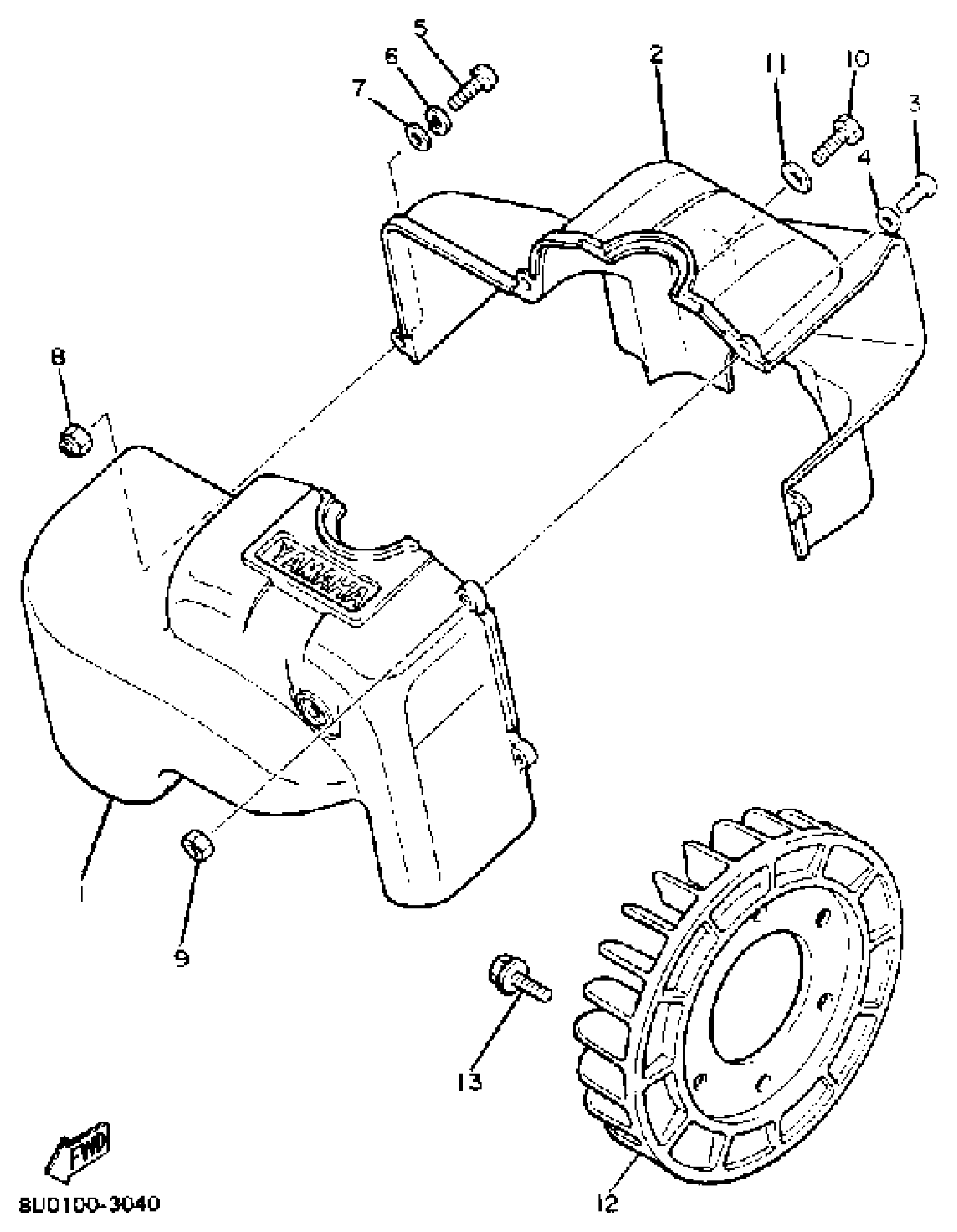

Yamaha BR250H (BRAVO) 1984 AIR SHROUD - FAN Diagram

#

Description
Price

1

AIR SHROUD, CYLINDER 2

8R4-12652-02-00

Unavailable

1

AIRSHROUD, CYLINDER 1

99999-01693-00

Unavailable

3

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

4

WASHER, PLAIN (646)

92990-05600-00

$0.80

5

SCREW, PAN HEAD

98580-05020-00

Unavailable

6

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

WASHER, PLAIN (646)

92990-05600-00

$0.80

8

NUT, NYLON

95707-05300-00

$4.24

9

NUT, HEXAGON SMALL

95317-05700-00

$8.49

10

BOLT (661)

97013-06012-00

$5.60

11

WASHER, PLATE 8221447500

90201-06057-00

$5.60

12

FAN

8G8-12611-01-00

Unavailable

13

BOLT, FLANGE

95817-06012-00

$1.43
