TRACK SUSPENSION 2 BR250F - G

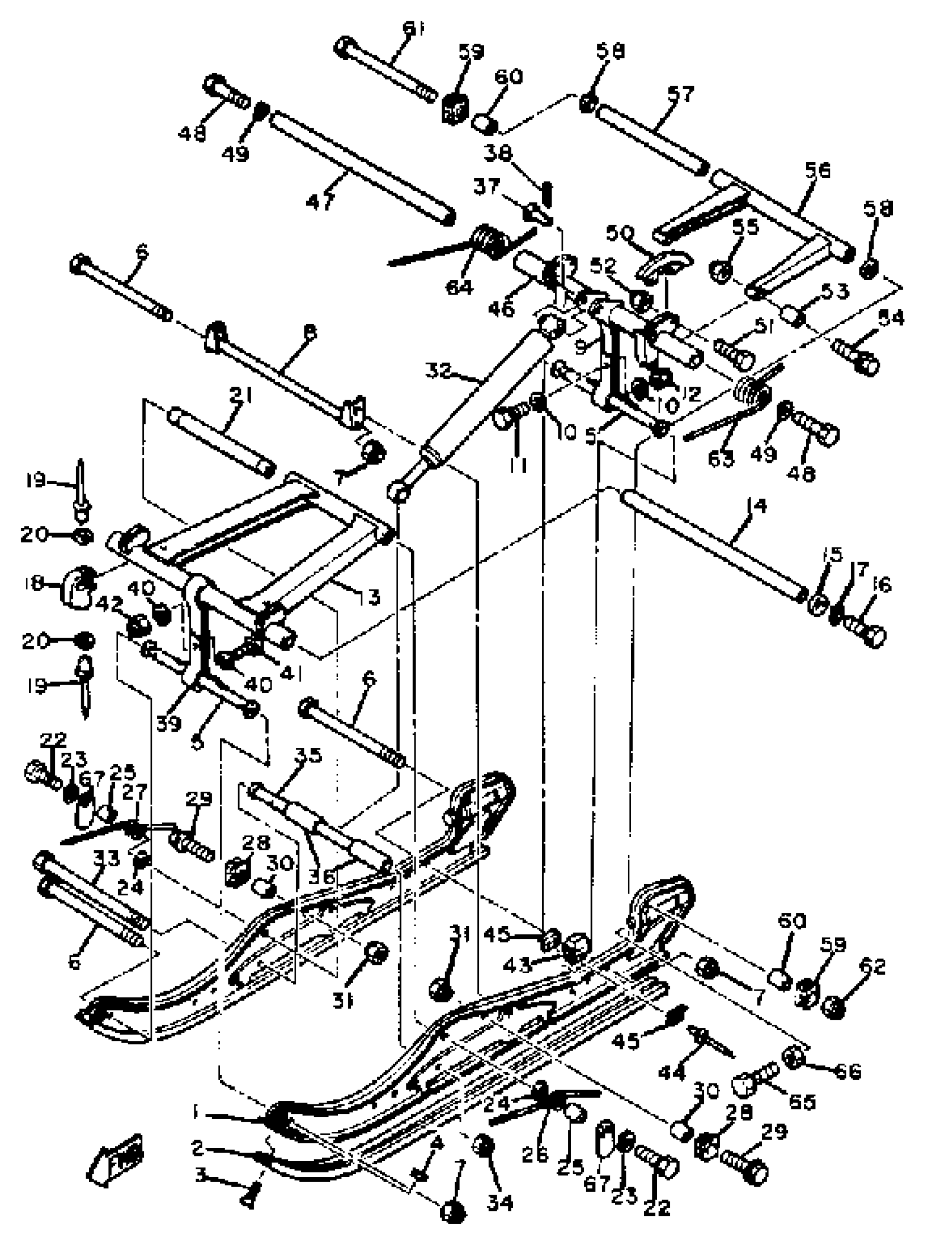

Yamaha BR250F 1982 TRACK SUSPENSION 2 BR250F - G Diagram
#
1
FRAME, SLIDING 1
8V7-47411-00-00
Unavailable
2
RUNNER, SLIDING 1 (8F3-47421-10)
8N4-47421-00-XX
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
NUT, SQUARE
90173-06006-00
Unavailable
5
BRACKET 1
8G5-47415-00-00
Unavailable
6
BOLT, WASHER BASED(51X)
90105-08346-00
$11.49
7
NUT, SELF-LOCKING(3BN)
90185-08146-00
$9.49
8
BRACKET 4
8R4-47418-00-00
Unavailable
9
STOPPER 1
8R4-47495-00-00
Unavailable
10
WASHER, PLATE
90201-06747-00
$8.49
11
BOLT, HEXAGON
97017-06025-00
$4.24
12
NUT, NYLON
95707-06300-00
$3.50
13
ARM, PIVOT 1
8R4-47331-00-00
Unavailable
14
SHAFT 1
8A5-47465-02-00
$51.99
15
SPACER
8U7-47341-00-00
Unavailable
16
BOLT (8J7)
97013-10030-00
Unavailable
17
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
18
DAMPER 1
8R4-47456-00-00
Unavailable
19
RIVET, BLIND (J10)
90267-40077-00
Unavailable
20
WASHER, PLATE (820-77116-00)
90201-04023-00
Unavailable
21
SHAFT 3
8G5-47485-00-00
Unavailable
22
BOLT, HEXAGON
97013-10055-00
Unavailable
23
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
24
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
25
COLLAR (8K4)
90387-101A1-00
Unavailable
26
SPRING, TORSION
90508-70509-00
Unavailable
27
SPRING, TORSION
90508-70510-00
Unavailable
28
HOOK 2
8R4-47447-00-00
Unavailable
29
BOLT, FLANGE
95817-08050-00
Unavailable
30
COLLAR (878)
90387-08262-00
Unavailable
31
NUT, SELF-LOCKING(3BN)
90185-08146-00
$9.49
32
SHOCK ABSORBER
8R4-47480-00-00
Unavailable
33
BOLT, WASHER BASED(51X)
90105-08346-00
$11.49
34
NUT, SELF-LOCKING(3BN)
90185-08146-00
$9.49
35
COLLAR
90387-080F4-00
Unavailable
36
COLLAR
90387-170F3-00
Unavailable
37
PIN, CLEVIS(8N0)
90240-12115-00
Unavailable
38
PIN, COTTER
91490-30030-00
Unavailable
39
STOPPER 1
8R4-47495-00-00
Unavailable
40
WASHER, PLATE
90201-06747-00
$8.49
41
BOLT, HEXAGON
97017-06025-00
$4.24
42
NUT, NYLON
95707-06300-00
$3.50
43
DAMPER 2
8K2-47457-00-00
Unavailable
44
RIVET, BLIND (8K4)
90267-48062-00
Unavailable
45
PLATE, DAMPER
8K2-47458-01-00
Unavailable
46
ARM, PIVOT 2
8R4-47332-00-00
Unavailable
47
SHAFT 1
8A5-47465-02-00
$51.99
48
BOLT (8J7)
97013-10030-00
Unavailable
49
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
50
RUNNER, SLIDING 2
8F3-47422-01-00
Unavailable
51
BOLT, HEXAGON
97017-06025-00
$4.24
52
NUT, NYLON
95707-06300-00
$3.50
53
COLLAR (8K2)
90387-08754-00
Unavailable
54
BOLT, FLANGE
95817-08050-00
Unavailable
55
NUT, SELF-LOCKING(3BN)
90185-08146-00
$9.49
56
BRACKET 3
8R4-47417-00-00
Unavailable
57
COLLAR
90387-08632-00
Unavailable
58
WASHER (1T1)
90201-08649-00
Unavailable
59
HOOK 2
8R4-47447-00-00
Unavailable
60
COLLAR
90387-086T0-00
Unavailable
61
BOLT, FLANGE
95822-08290-00
Unavailable
62
NUT, SELF-LOCKING(3BN)
90185-08146-00
$9.49
63
SPRING, TORSION
90508-80511-00
Unavailable
64
SPRING, TORSION
90508-80512-00
Unavailable
65
BOLT, HEXAGON (8E3)
90101-10314-00
Unavailable
66
NUT (2Y5)
90179-10279-00
Unavailable
67
CLAMP
90465-20183-00
Unavailable
