Description

Price

10a1

Sheave Drive Pulley Ass'y

417224579

$209.99

10a2

Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h

417225158

$349.99

10a2b

Bushing

293250389

$21.99

10a2c

Circlip

293370137

$3.28

10a2d

Interior Pulley Roller

417224825

$70.99

10a2f

Pulley Roller Ext

417224916

$31.99

10a2g

Pin

417224510

$9.95

10a2h

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

10a3

Drive Pulley Spider Ass'y | Includes 10a3 to 10a3h

417225068

$209.99

10a3b

Stopper Spring

417224910

$10.16

10a3c

Stopper Spring

417224571

$10.16

10a3d

Roller Pulley Ass'y

417224947

$35.99

10a3f

Axle - 10mm

417224204

$10.49

10a3g

Thrust Washer

417224868

$2.32

10a3h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10b

Clutch Spring

417224234

$29.49

10c

Seat Spring

417224003

$10.38

10d

Circlip

293370116

$3.28

10f1

Ramp 974

417224274

$31.99

10f2

RH Lever

417224086

$9.10

10f3

LH Lever

417224114

$5.61

10f4

Pivot 26mm

417224220

$5.79

10f5a

Molded Cam

417224113

$8.89

10g

Pin Ramp

417224694

$10.49

10h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10j

VIbration Damper

417224682

$149.99

10k

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt M14 X 144

417300522

$32.99

100

Driven Pulley Ass'y

417127967

$679.99

105

Bushing

417127300

$63.99

120

Washer

503183100

$3.17

130

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$7.20

140

Spacer

504149100

$12.99

150

Spacer

417300252

$5.49

160

Spacer

417300265

$2.29

180

Spacer

417300399

$17.49

200

Drive Belt

417300572

$239.99

300

Belt Guard

417300620

$73.99

330

Front Retaining Hook

417300525

$10.49

340

Avex Rivet

390909200

$0.30

360

CVT Air Duct

417300565

$48.99

370

Pop Rivet 3/16"

293150103

$0.55

400

Torx Truss Screw M6 X 12

250000767

$2.00

450

Front Support

417300629

$97.99

460

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

500

Belt Guard Bracket

417300482

$14.49

505

Hex. Flange Elastic Nut M6

233261466

$2.00

510

Torx Screw M6 X 16

250000755

$0.87

520

Hair Pin

114045200

$11.11

530

Slide

417300567

$10.49

550

Stopper

417300506

$12.99

610

Pivot 38mm

417224222

$5.79

620

Weight

417224366

$8.79

630

Spacer

417224757

$24.49

640

Weight

417224363

$4.44

650

Release Spring

417127625

$46.49

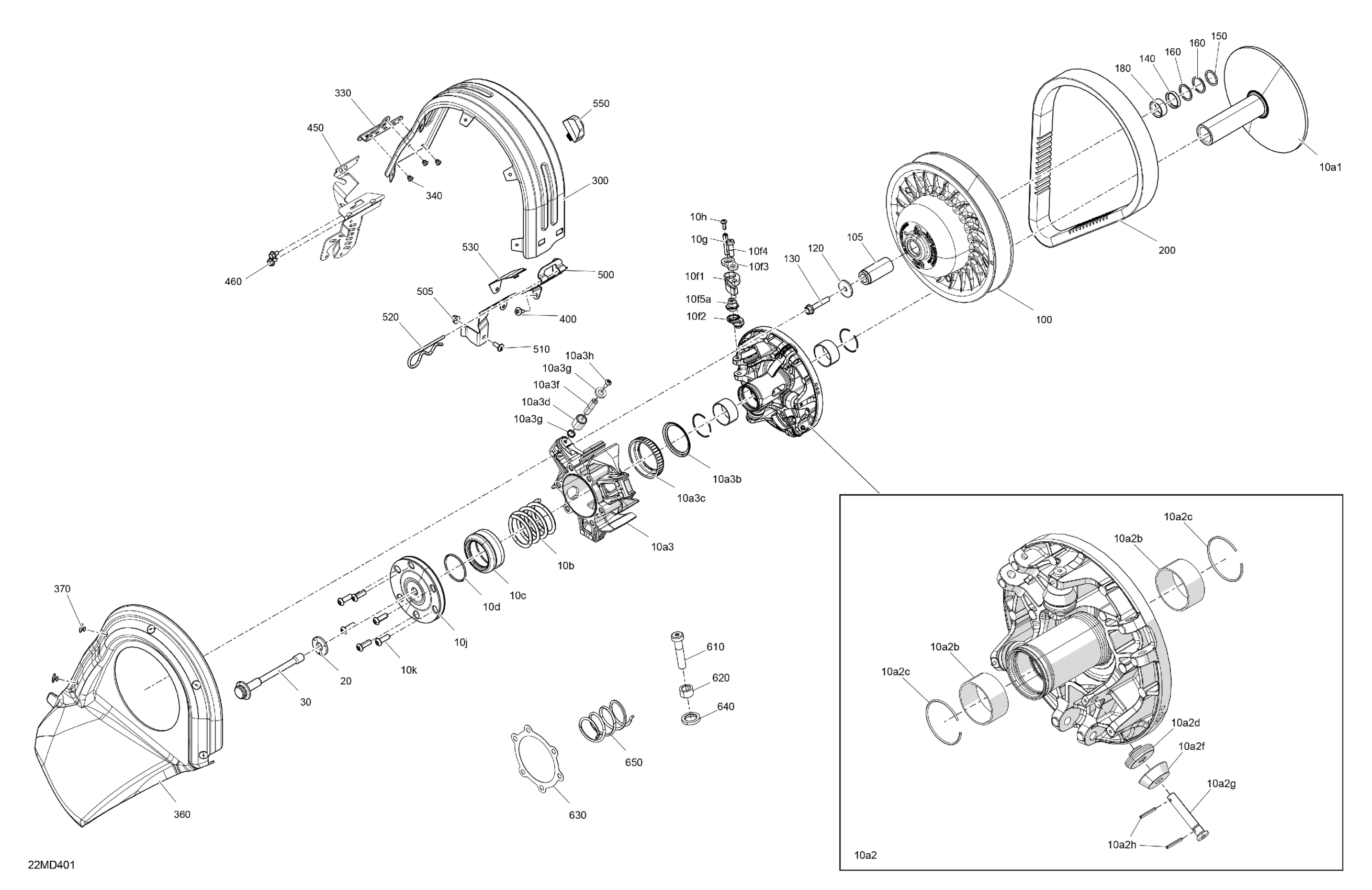

Ski-Doo BMRB - RACING 600 RS - Europe, 2024 Drive - Pulley Diagram
