Description

Price

1

Crankcase Ass'y | Includes no. 1-5; 14-15

420686902

$1.00

2

Center Pin 8 X 12

420632010

$4.01

3

Ball Bearing

420232100

$20.99

4

Impulse Fitting

420924529

$8.57

5

Check Valve

420956071

$24.99

6

Collar Hex Screw M8 X 45

420640433

$2.00

7

Collar Hex Screw M8 X 75

420640833

$2.00

8

Torx Flange Screw M6 X 35

420440274

$1.01

9

Torx Flange Screw M6 X 25

420440235

$2.11

10

O-Ring

420430373

$3.17

11

Cover Plate

420810827

$14.83

12

Taptite Screw M5 X 16

420941928

Unavailable

13

Oil Seal Cover

420812422

$14.83

14

Screw M6 X 20

420941436

$3.17

15

Closure Cap

420960771

$4.59

16

Clamp 5.8-7.0MM

420853138

$2.11

17

Oil Line 325 MM

420201961

$8.11

18

Protection Tube 150MM

420660702

$14.22

19

Clamp

420853653

$7.41

20

Oil Tank Ass'y | Includes no. 19-21

420956245

$73.99

21

Rubber Gasket

420850350

$5.39

22

Oil Tank Cap

420956250

$15.28

23

Short Block 598 RS

420059804

$2.00

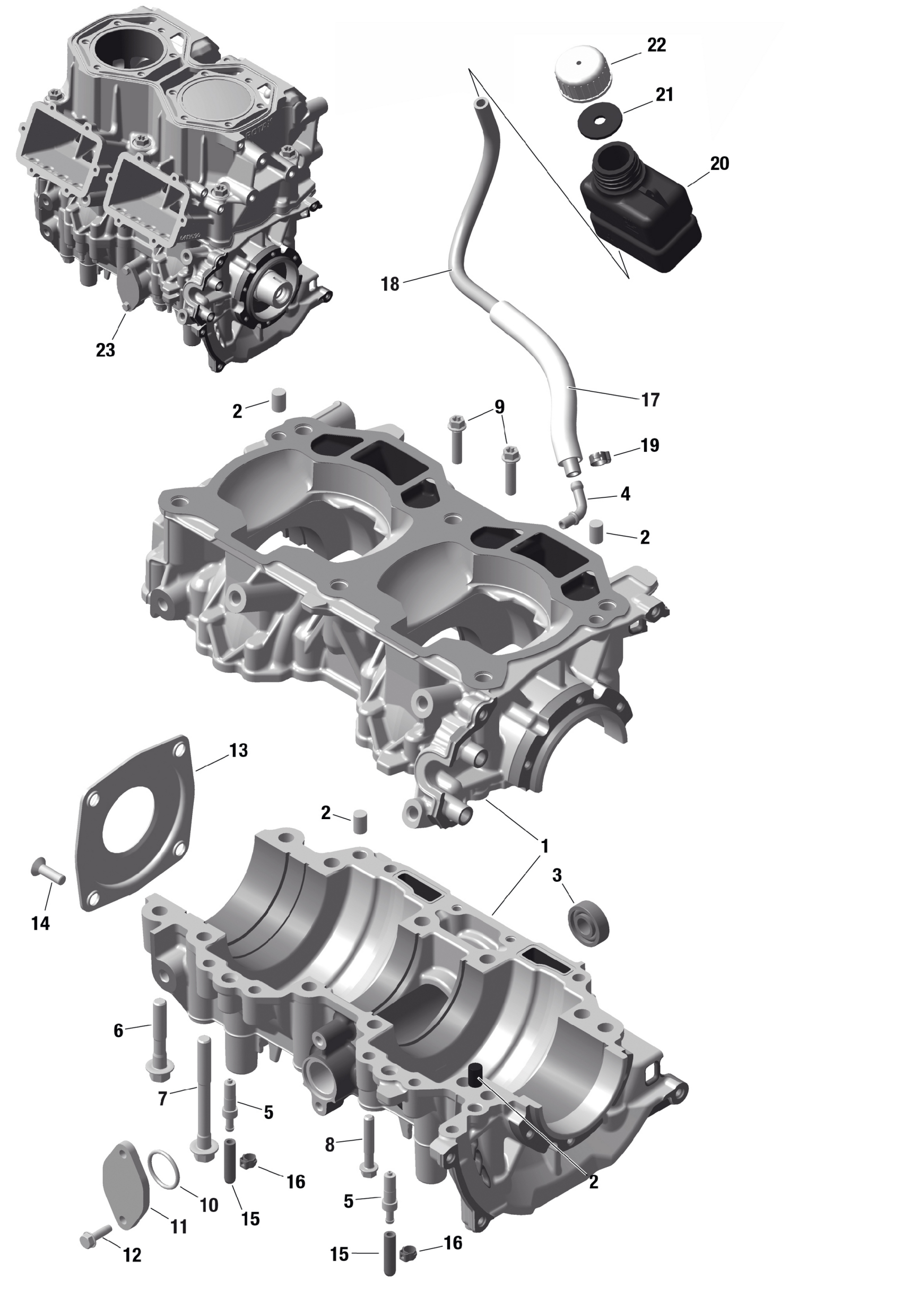

Ski-Doo BMRB - RACING 600 RS - Europe, 2024 01- ROTAX - Crankcase Diagram

Crankcase Ass'y | Includes no. 1-5; 14-15

Center Pin 8 X 12

Ball Bearing

Impulse Fitting

Check Valve

Collar Hex Screw M8 X 45

Collar Hex Screw M8 X 75

Torx Flange Screw M6 X 35

Torx Flange Screw M6 X 25

O-Ring

Cover Plate

Taptite Screw M5 X 16

Oil Seal Cover

Screw M6 X 20

Closure Cap

Clamp 5.8-7.0MM

Oil Line 325 MM

Protection Tube 150MM

Clamp

Oil Tank Ass'y | Includes no. 19-21

Rubber Gasket

Oil Tank Cap

Short Block 598 RS
