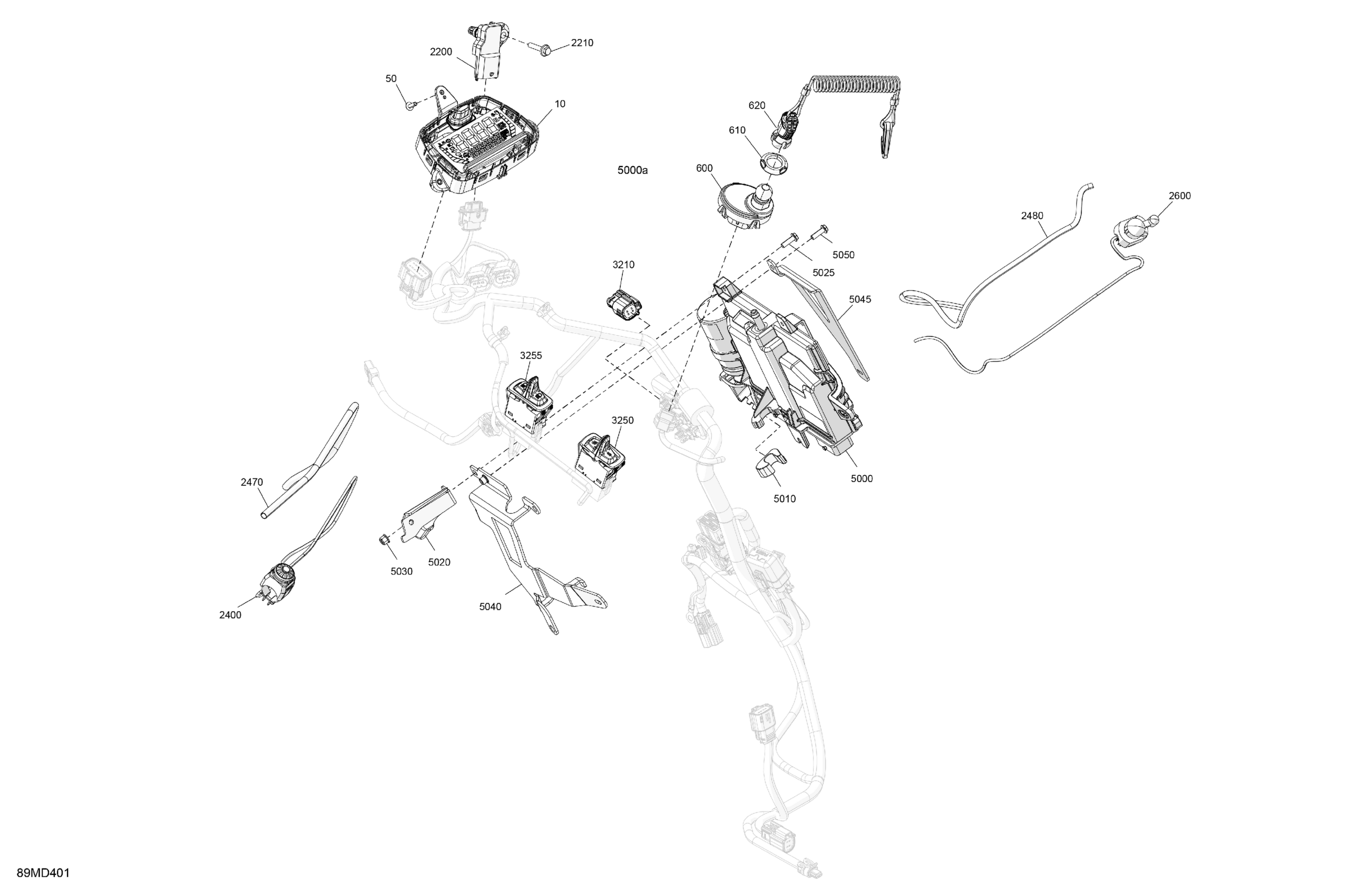

Ski-Doo BMRA - RACING 600 RS - North America, 2024 08- Electric - Upper Section Diagram

Description

Price

1 Button Multifunction Compact Mono Gauge

515179303

$529.99

Torx Truss PT K40 x 12

250001131

$2.11

600

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

610

Specialized Nut

278004274

$3.28

620

Grey, Ski-Doo DESS Key

515179475

$84.99

2200

Pressure And Temperature Sensor

707000995

$88.99

2210

Hex. Flange Screw M5 X 25

207552544

$5.39

2400

Control Button

515178657

$72.99

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515178300

$63.49

3210

4 Circuits Female Housing

515178177

$12.18

3250

Switch Rocker Hand Warmer

515178462

$20.49

3255

Switch Rocker Headlignt

515178463

$20.49

5000

ECM Module | Includes 5000a to 5000a2

515179352

$589.99

5010

Rubber Stopper

515178430

$2.11

5020

Module Support

515178801

$12.49

5025

Hex. Flange Screw, Scotch Grip

207551634

$2.00

5030

Flange Elastic Nut M5

233251434

$2.00

5040

Module Support

515178951

$59.99

5045

Module Support

515179351

$59.99

5050

Hex. Flange Screw, Scotch Grip

207551634

$2.00
