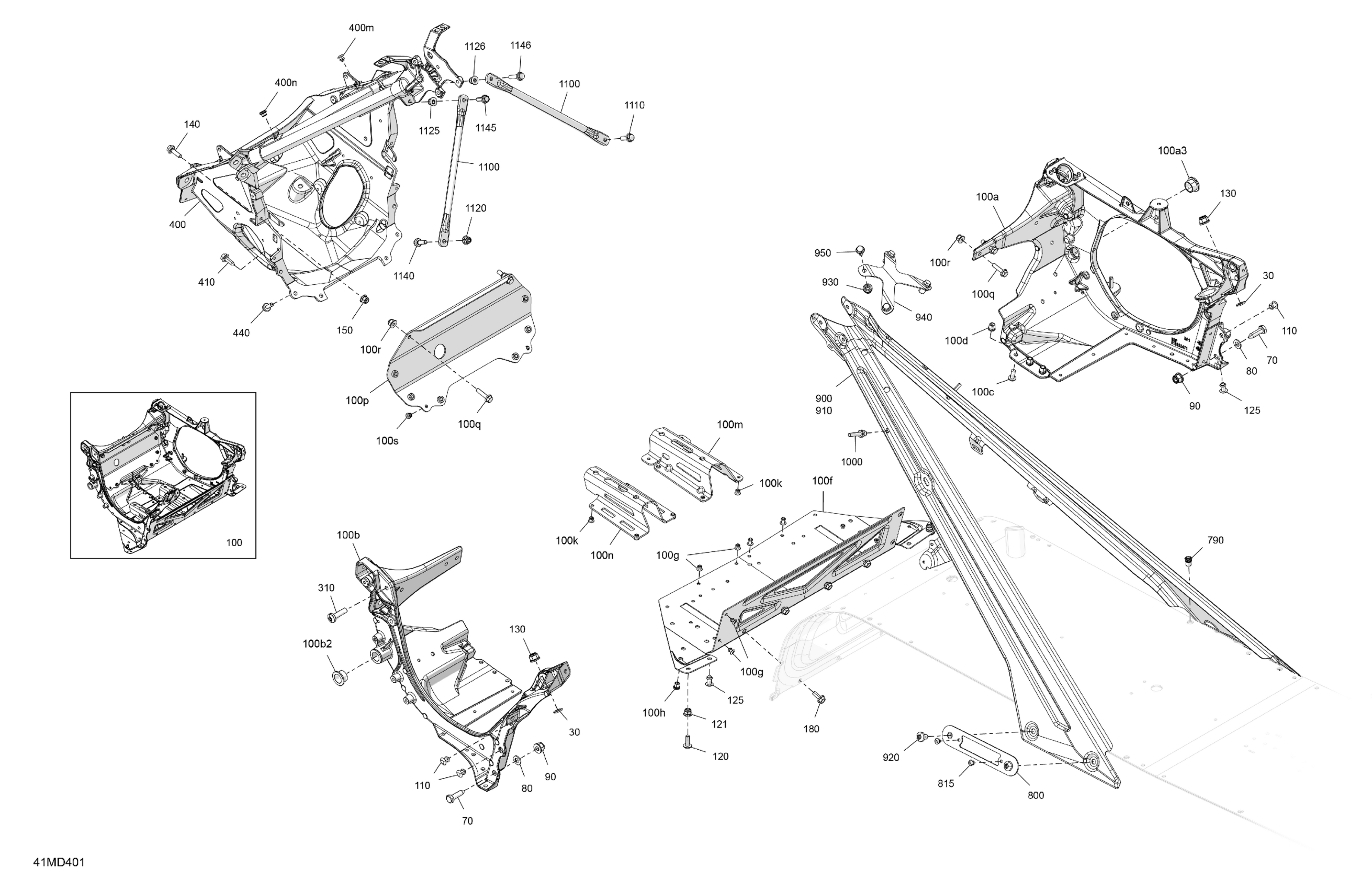

Ski-Doo BMRA - RACING 600 RS - 2024 Frame - System - Front Section Diagram

#

Description
Price

30

Flat Washer 8 mm

234081410

$0.79

70

Hex Screw M8 X 30

250000942

$1.06

80

Flat Washer 8 mm

234081410

$0.79

90

Hex. Flange Elastic Nut M8

233281414

$1.31

100

Engine Chassis Module | Includes 100 to 100s

518335199

$382.81

100a

RH Side Member Ass'y | Includes 100a to 100a3

518335196

$211.91

100a3

Leg Bushing

505072690

$5.75

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$181.31

100b2

Leg Bushing

505072690

$5.75

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

100d

Collar Huck Magna-Grip 6.4

293150149

$0.36

100f

Bottom Plate

518332716

$33.55

100g

Rivet Avibulb 3/16

293150203

$0.28

100h

Insert M5 X 0.8

293450268

$1.90

100k

Rivet Avibulb 3/16

293150203

$0.28

100m

RH Cross Link

518329814

Unavailable

100n

LH Central Cross Member Support

518333927

$29.82

100p

Front Member

518330100

$54.45

100q

Hex. Flange Screw M6 X 25

250000945

$4.15

100r

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

100s

Rivet Avibulb 3/16

293150203

$0.28

110

Ornit Rivet 6,5 X 14.5

293150266

$1.88

120

Tork Screw M6 X 18

250000536

$2.00

121

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

125

Rivet Ornit 6,5 X 18.5

293150268

$1.88

130

Hex. Flange Elastic Nut M8

233281414

$1.31

140

Hex. Flange Screw M6 X 20

207662046

$2.00

150

Elastic Flange Nut M6 X 1.0

233261416

$2.00

180

Hex. Flange Screw M6 X 16

207661646

$1.15

310

Screw-Pan HD.Torx M8X30

250001060

$0.75

400

Chassis Suspension Module Ass'y | Includes 400 to 400n

518334681

$768.63

400m

Rivet Ornit 6,5 X 12.5

293150265

$1.88

400n

Insert Half Hex Body M6 x 1.0

250100199

$2.91

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.15

440

Hex. Flange Screw M6 X 16

207661636

$1.03

790

Insert

293450278

$3.97

800

Member Fixation Plate

518329480

$9.73

815

Avibulb Rivet 4.8 X 12.1

293150237

$0.28

900

LH Rear Diagonal Cross Member Ass'y

518334034

$105.19

910

Deep Black, RH Rear Diag. Cross Member Ass'y

518334035

$105.19

920

Pan Head Torx Screw M8 X 12

250000887

$1.79

930

Insert

293450275

$11.36

940

Brace Rear Member

518329499

$13.99

950

Hex. Flange Screw M6 X 16

207661644

$0.70

1000

Stud M5 X 20

250300629

$1.87

1100

Upper Colomn Support

518329974

$20.12

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.79

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1125

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1126

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1140

Hex. Flange Screw M6 X 20

207662046

$2.00

1145

Hex. Flange Screw M6 X 20

207662046

$2.00

1146

Hex. Flange Screw M6 X 25

207662556

$4.15
