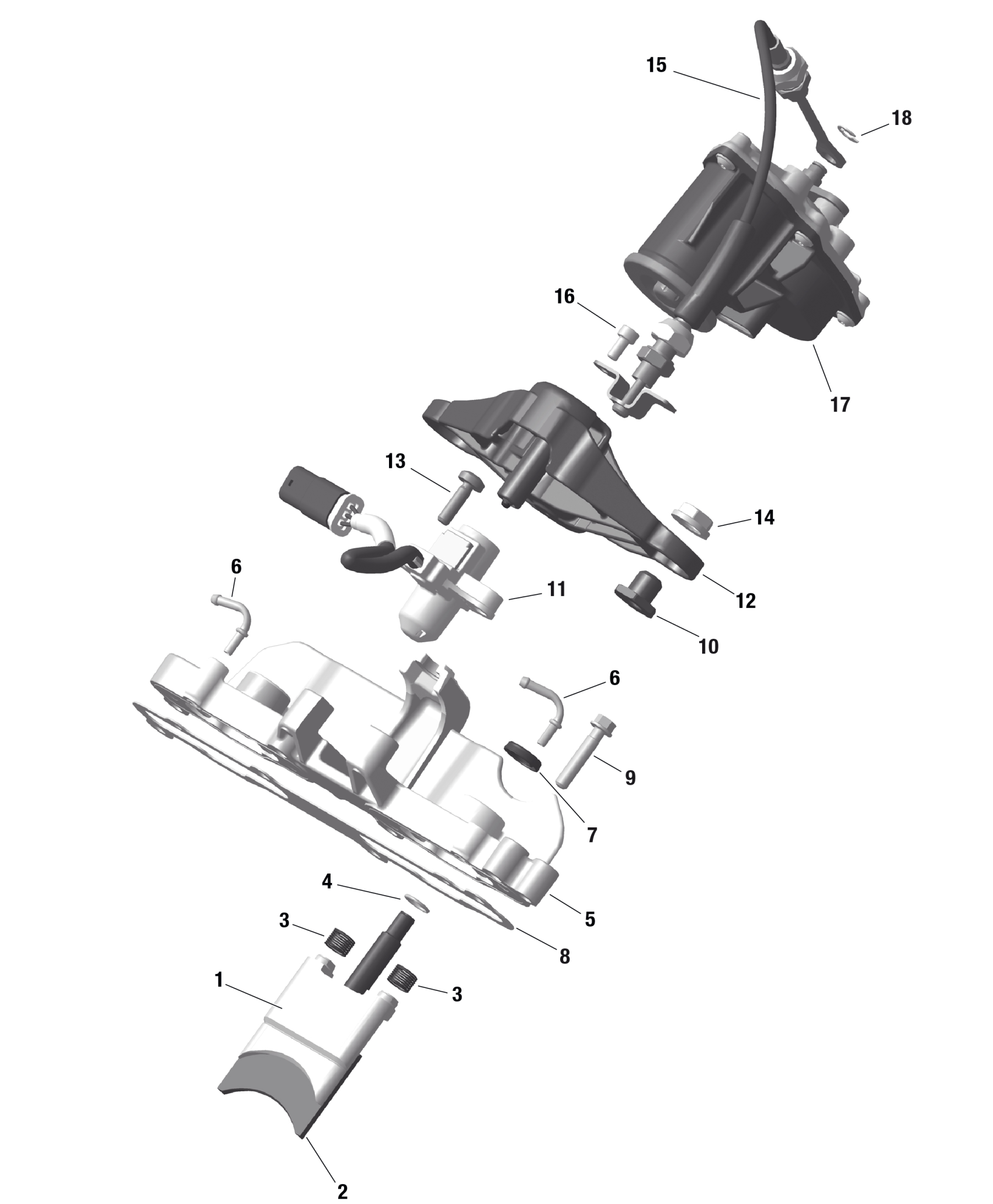

Ski-Doo BMRA - RACING 600 RS - 2024 ROTAX - RAVE Valve Diagram

#

Description
Price

1

Exhaust Valve Upper

420954100

$70.99

2

Exhaust Valve Lower

420954095

$95.49

3

Spring

420238558

$5.39

4

O-Ring

420950950

$1.01

5

Valve Rod Housing Ass'y | Includes no. 6-7

420954067

$94.49

6

Fitting 90D

420924051

$10.33

7

Oil Seal | Included in gasket kit

420950732

$9.27

8

Gasket Valve Rod Housing | Included in gasket kit

420631001

$13.16

9

Torx Flange Screw M6 X 30

420440647

$2.00

10

Collar Nut M8

420942331

$4.44

11

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$114.99

11

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$114.99

12

Valve Bar

420855290

Unavailable

13

Torx Flange Screw M6 X 20

420441386

$2.11

14

Nut M12 X 1.5

420942190

$14.22

15

Bowden Cable Ass'y

420997033

$121.49

16

Allen Screw M5 X 10

420240692

$1.69

17

Servo Motor Ass'y

420889432

$329.99

18

Retaining Ring

420945710

$0.50
