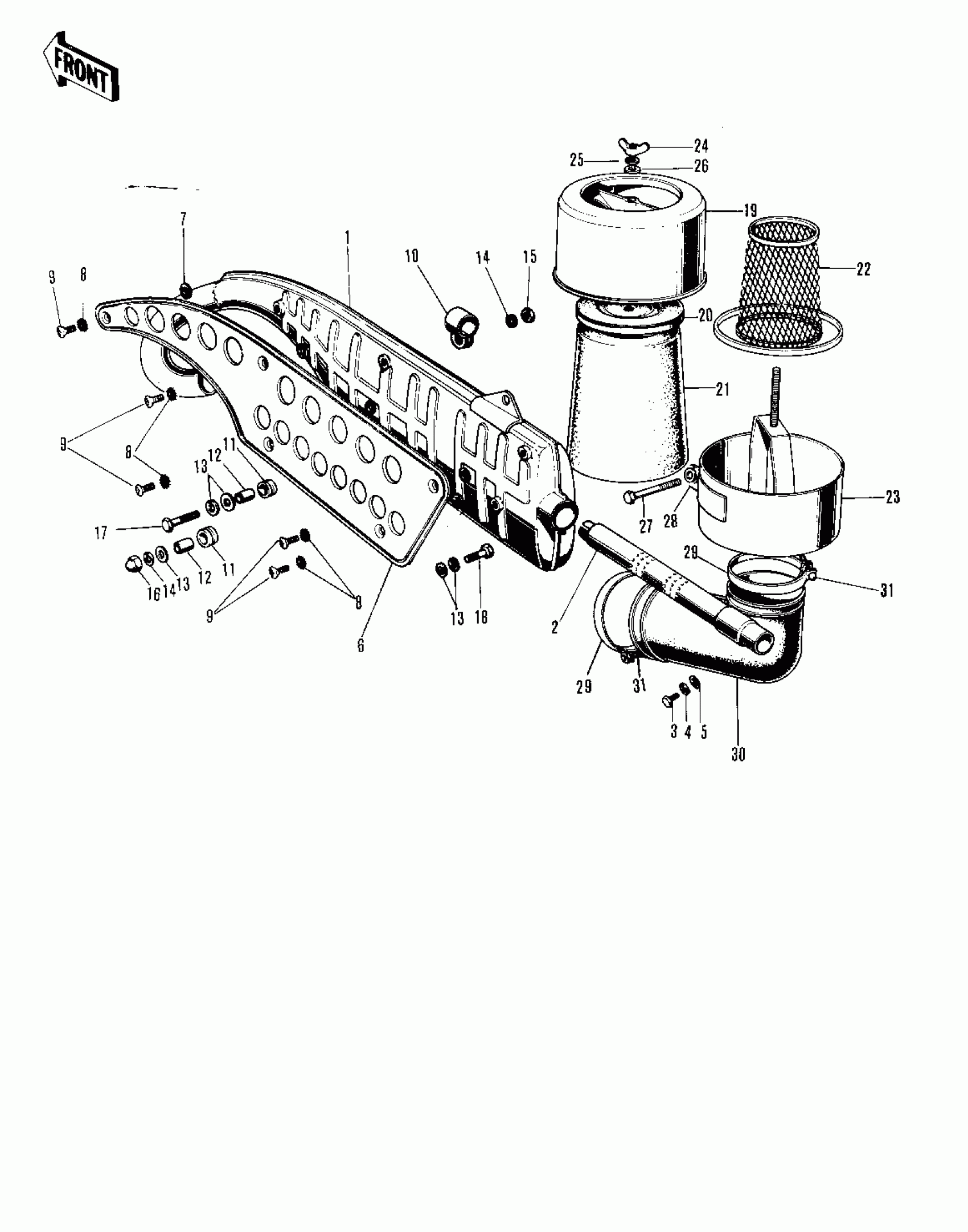

Kawasaki Bison AIR CLEANER/MUFFLER ('71-'72 F8/F8-A) Diagram
#
Description
Price
1~5
MUFFLER ASSY,F.BLACK
18001-107-21
$189.39
2
BAFFLE TUBE
18033-040
Unavailable
3
BOLT,6X10
112G0610
$0.58
4
WASHER SPRING 6MM
461F0600
$0.69
5
WASHER PLAIN 6MM
411B0600
$2.84
6
COVER-MUFFLER,BLACK
18064-003-21
$37.44
7
INSULATOR HEAT
18065-002
$4.19
8
WASHER LOCK 6MM
463H0600
Unavailable
9
SCREW PAN HEAD 6X10
220E0610
$3.89
10
BRACKET,UPPER MUFFLE
32069-039
Unavailable
11
DAMPER RUBBER-MUFFLER
18063-005
$5.21
12
COLLAR
92027-102
$1.08
13
WASHER,8X26X2.3
92022-1564
$4.31
14
WASHER SPRING 8MM
461F0800
$0.40
15
NUT 8MM
312B0800
$0.58
16
NUT FUEL TANK FRONT
92020-007
Unavailable
17
BOLT,FLANGED,8X35
92001-1577
Unavailable
18
BOLT HEX HEAD 8X28
114G0828
$3.71
19~26
AIR CLEANER ASSY
11010-042
Unavailable
19
CAP-AIR CLEANER
11012-016
Unavailable
20
ELEMENT,AIR CLNR,TOP
11013-024
Unavailable
21
ELEMENT,AIR CLNR,MAIN
11013-023
Unavailable
22
WIRE NET-AIR CLEANER
11014-003
Unavailable
23
BODY-AIR CLEANER
11011-011
Unavailable
24
NUT-WING,6MM
92015-030
Unavailable
25
WASHER SPRING 6MM
461F0600
$0.69
26
WASHER PLAIN 6MM
411B0600
$2.84
27
BOLT,EXCLUSIVE
92001-1456
$4.90
28
WASHER SPRING 6MM
461F0600
$0.69
29
CLAMP,AIR CLEANER
92037-129
$16.69
30
CONNECTOR
11026-002
Unavailable
31
SCREW PAN HEAD 6X30
220B0630
$3.41
