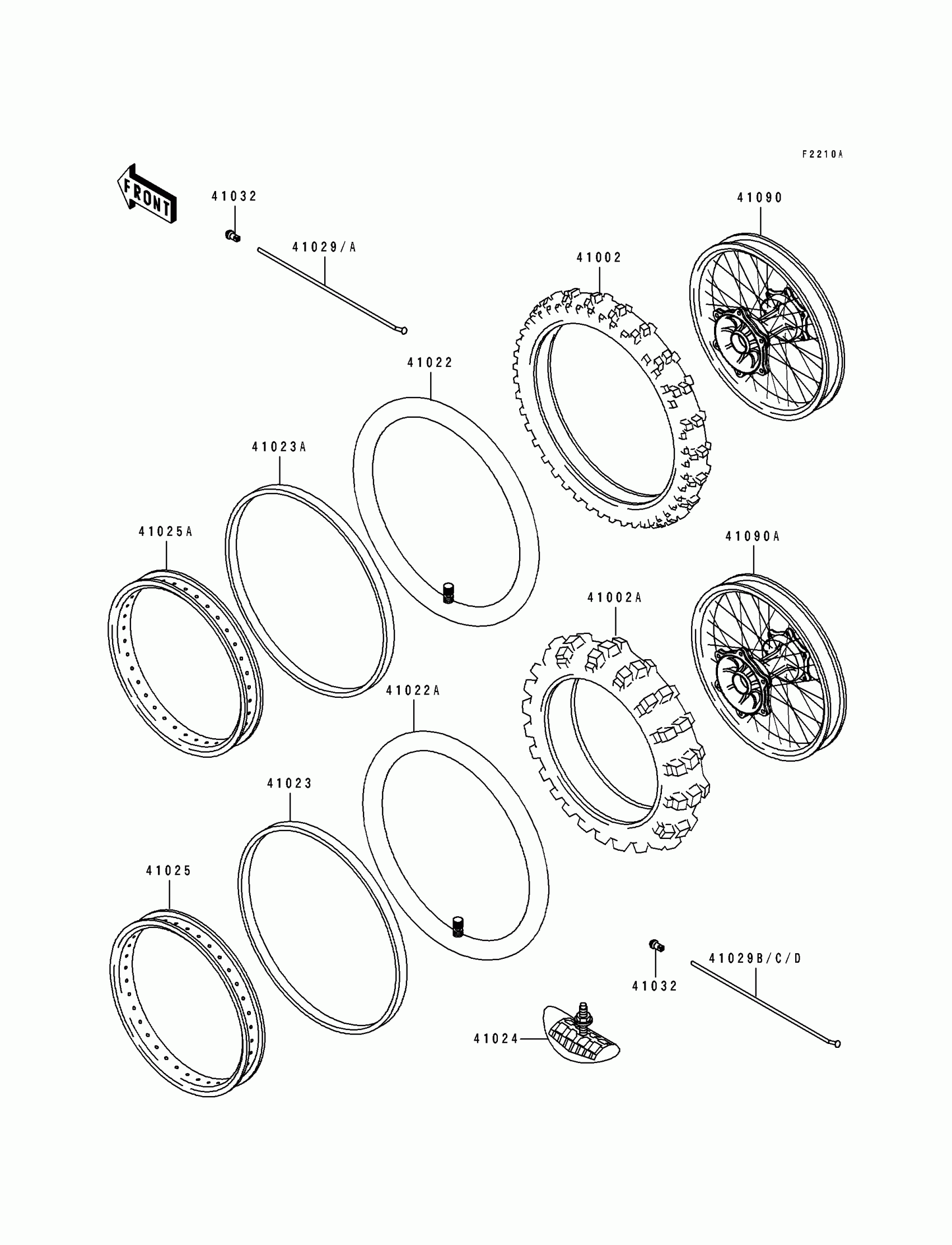

Kawasaki Big Wheel Wheels/Tires(KX80-T4) Diagram

Description

Price

41002

TIRE,FR,70/100-19 42M,K490(D)

41002-1626

Unavailable

41002A

TIRE,RR,90/100-16 52M,K695(D)

41002-1788

Unavailable

41022

TUBE-TIRE,FR,70/100-19(D)

41022-1121

$50.05

41022A

TUBE-TIRE,RR,90/100-16(D)

41022-1122

$50.05

41023

BAND-RIM,RR,90/100-16(D)

41023-1072

$13.87

41023A

BAND-RIM,90-100/90-19(D)

41023-1074

$13.87

41024

STOPPER-RIM,1.85-M(DUNLOP)

41024-011

$53.28

41025

RIM,RR,1.85X16EN22-J

41025-1188

Unavailable

41025A

RIM,FR,1.40X19EN22J

41025-1217

Unavailable

41029

SPOKE-INNER,FR,RH,212MMX165D

41029-1148

$9.21

41029A

SPOKE-INNER,FR,LH,210MMX165D

41029-1149

$9.21

41029B

SPOKE-INNER,RR,LH,181MMX170D

41029-1151

$9.90

41029C

SPOKE-INNER,RR,RH,178MMX168D

41029-1181

$9.90

41029D

SPOKE-INNER,RR,RH,175MMX168D

41029-1182

$9.90

41032

NIPPLE-SPOKE

41032-1057

$1.23

41090

WHEEL-SUB ASSY,FR

41090-1067

Unavailable

41090A

WHEEL-SUB ASSY,RR

41090-1078

Unavailable
